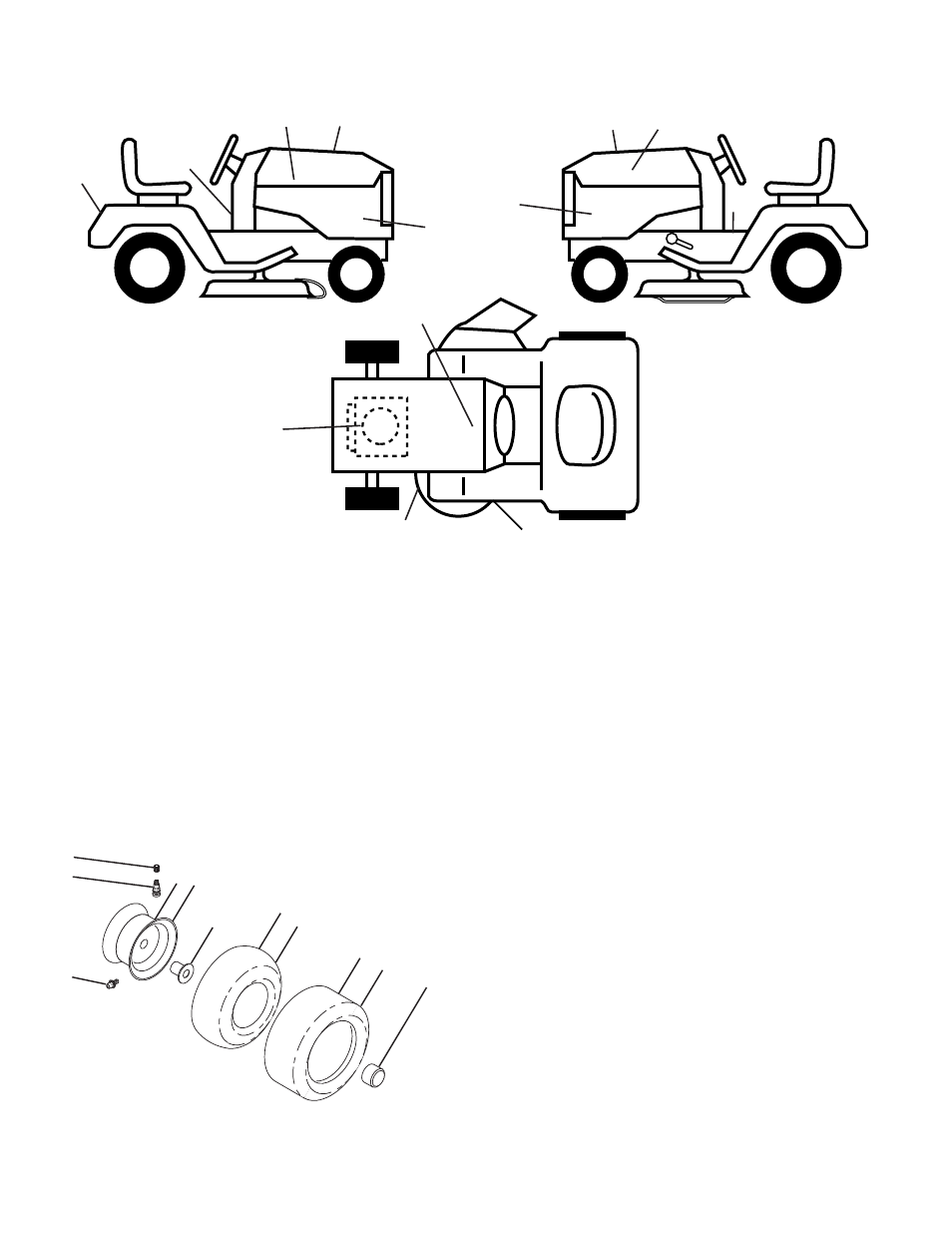

TRACTOR - MODEL NO. YTH2348 (96045003000), PRODUCT NO. 960 45 00-30
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
3 11
4
10
5
9
8
7
wheel_art_1-vgt
WHEELS AND TIRES
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 13 83-36 Rim Assembly, Front
4 532 05 99-04 Tube, Front (Ser vice Item Only)
5 532 10 62-22 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle
9 532 13 84-68 Tire, Rear
10 532 12 49-26 Tube, Rear (Service Item Only)
11 532 13 83-37 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 41 91-38 Decal, Operator's
2 532 42 41-02 Decal, Warning
4 532 19 15-54 Decal, Fender
5 532 17 84-55 Decal, Caution
6 532 42 95-57 Decal, Eng. HP
8 532 19 87-85 Decal, Mower Sch.
9 532 14 50-05 Decal, Battery Dnge/Poi
14 532 43 95-83 Decal, Panel Side
15 532 42 38-29 Decal, Cust. Resp.
16 532 42 91-96 Decal, Hood Logo
17 532 44 02-73 Decal, Replacement
- - 532 16 69-60 Decal, Bypass
- - 532 41 08-05 Pad, Footrest, LH
- - 532 41 08-06 Pad, Footrest, RH
- - 532 44 05-66 Manual, Owner's (English)
- - 532 44 05-67 Manual, Owner's (Spanish)
