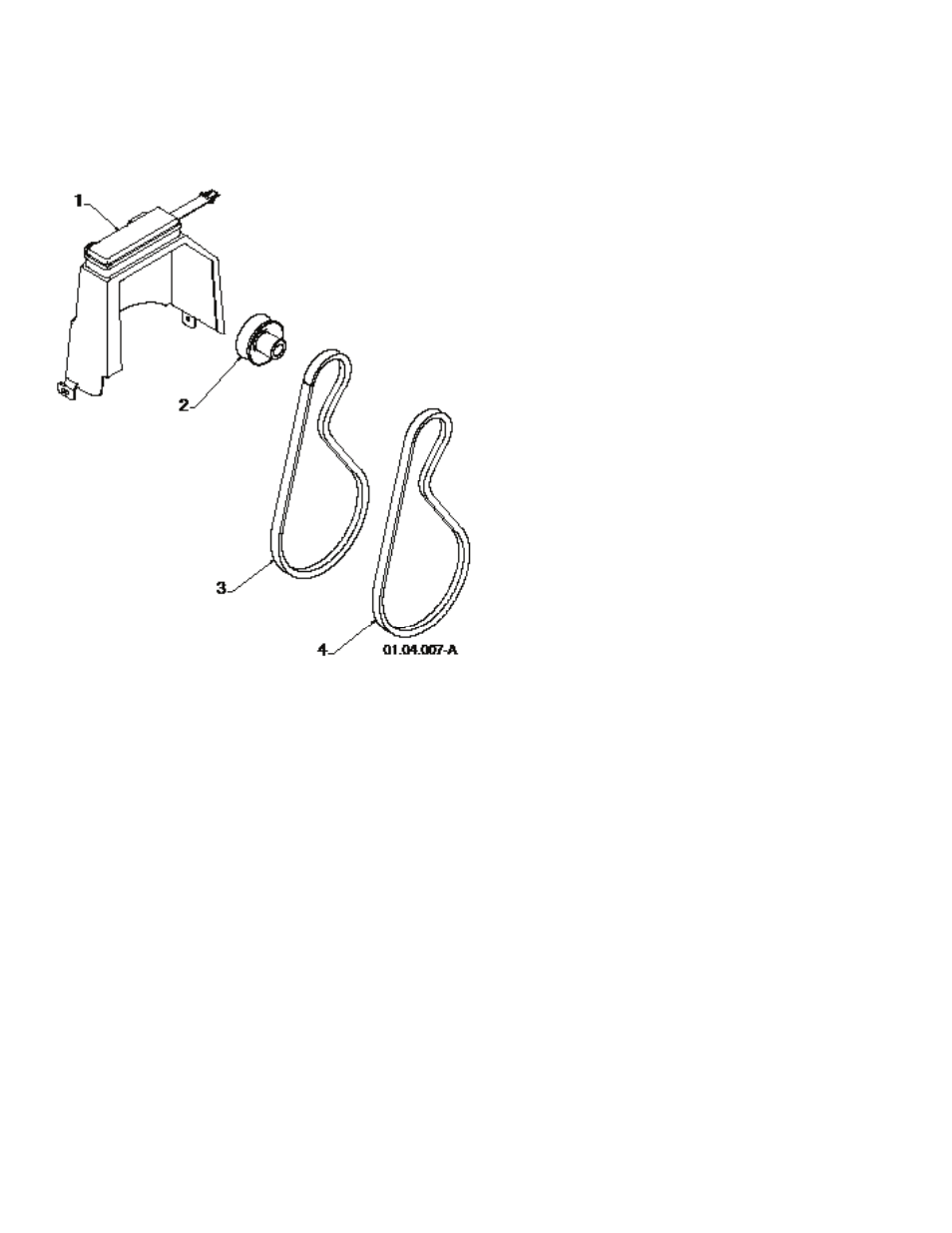

REPAIR PARTS
CHASSIS / ENGINE / PULLEYS
SNOW THROWER - MODEL NO. 1130SB-LS
1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO.
DESCRIPTION
1
532 19 22-13 COVER ASSEMBLY
2
532 17 91-57 PULLEY
3
532 41 97-44 TRACTION BELT
4
532 40 80-10 IMPELLER BELT
