Husqvarna 1130SB-LS - Manual (Page 29)

29

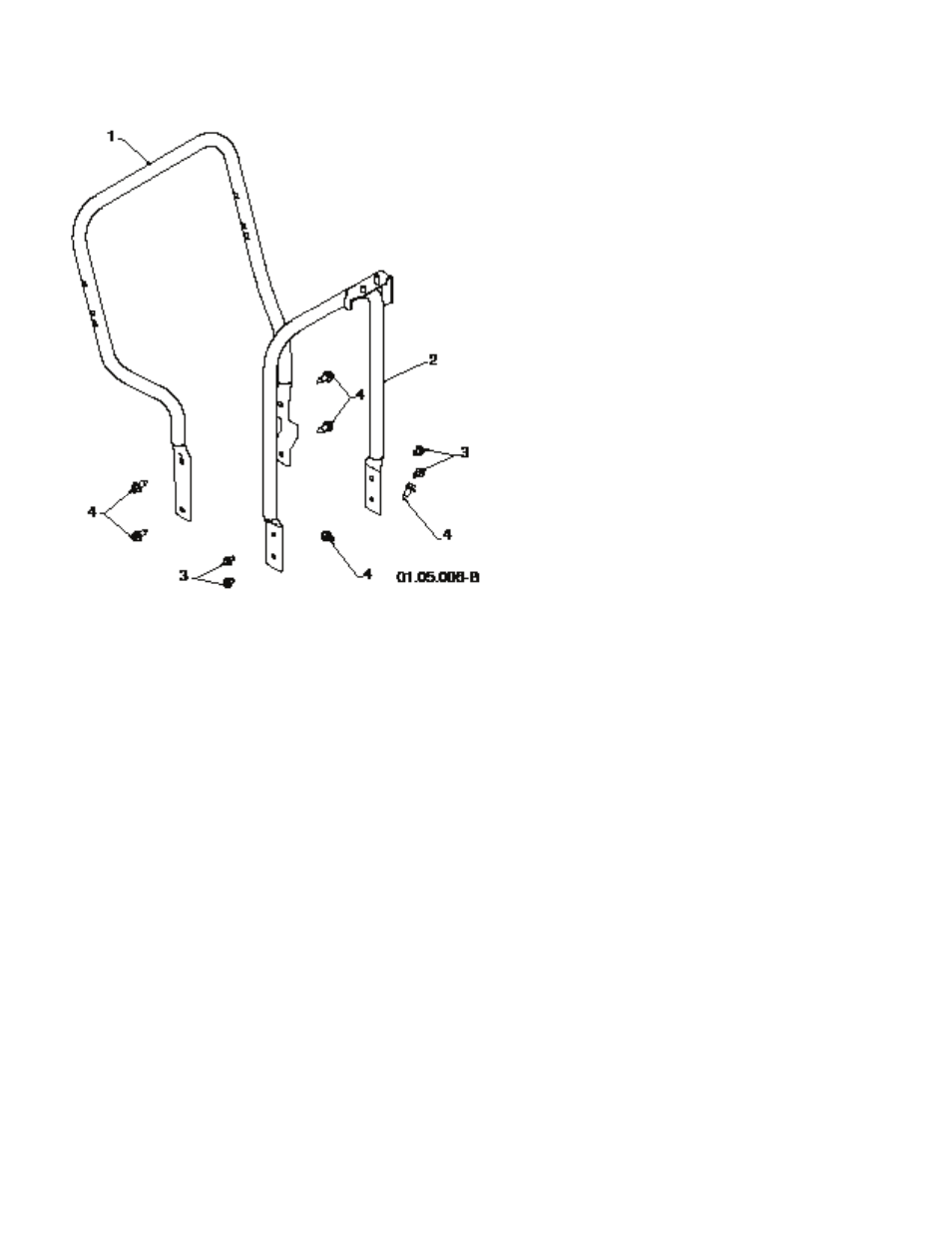

REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO. 1130SB-LS 1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
1 532 42 17-05 LOWER TUBE PNT
2 532 40 76-43 PIVOT SUPPORT
3 532 15 00-78 HEXHEAD SCREW .3125−18
X .75
4 817 00 06-16 HEXHD FLG CAPSCREW 3/8
X 1.0 TT
