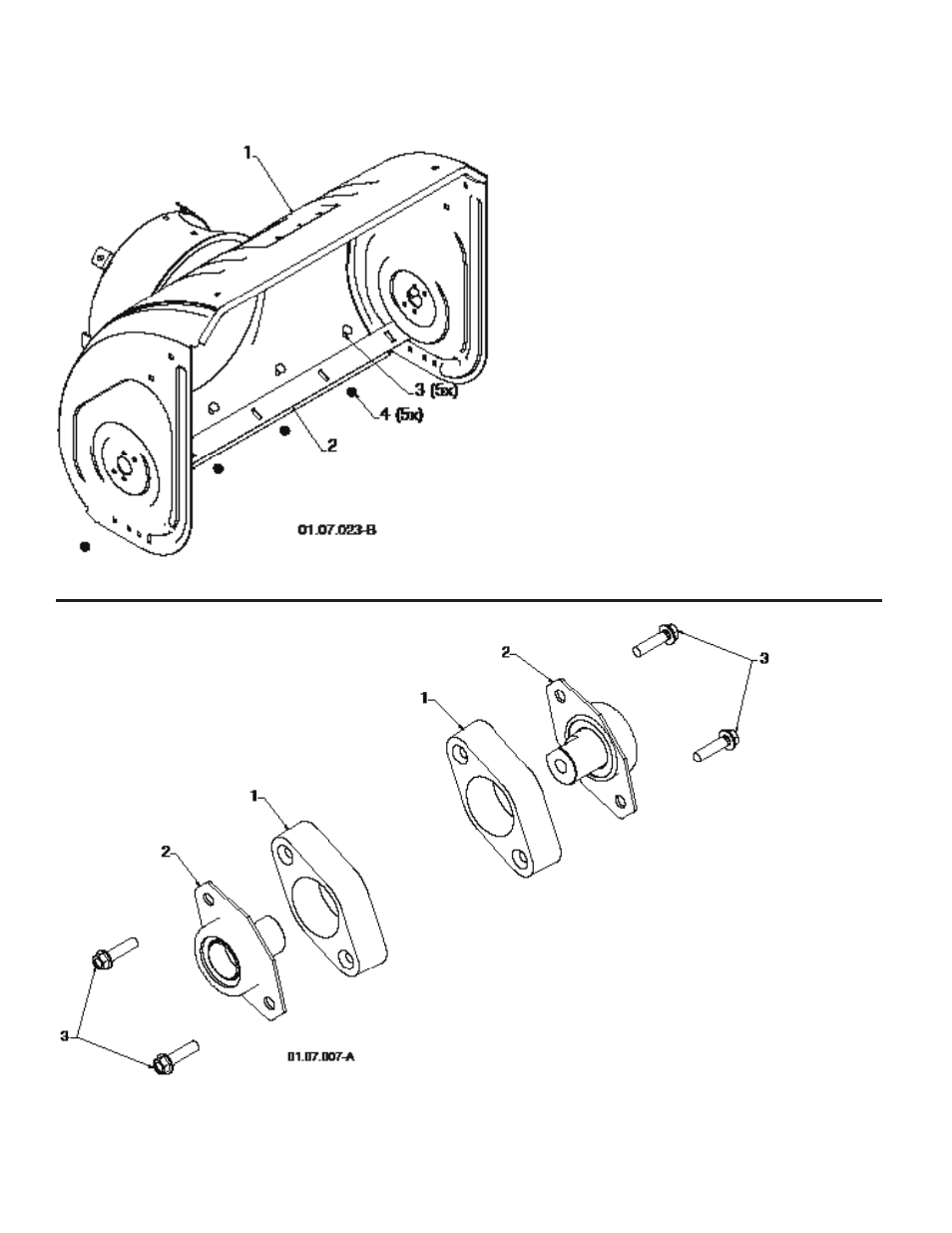

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO. 1130SB-LS 1130SB-LS (96193002900), PRODUCT NO. 961 93 00-29
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1 532 42 17-13 AUGER HOUSING
2 532 40 76-45 SCRAPPER BAR
3 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
4 532 15 53-77 NUT 5/16−18
1 532 18 81-70 PLASTIC RETAINER
2 532 41 18-33 AUGER BALL BEARING
3 532 17 95-82 SCREW 5/16−18 X 1.00
