6
TECHNICAL SPECIFICATION

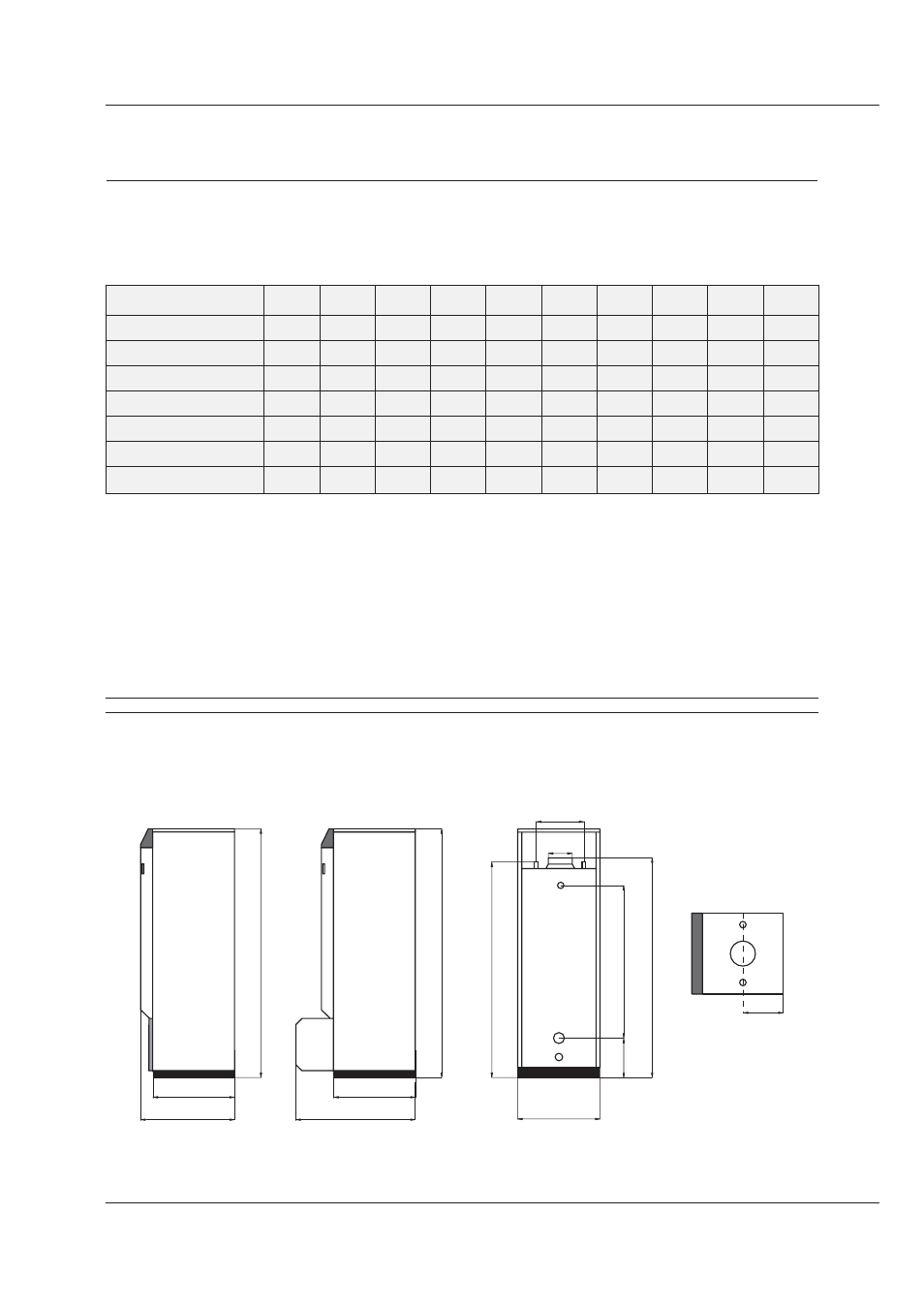

DIMENSIONS
The units are delivered fully assembled, tested and packed on a timber base with shockproof edges and protected by heat-shrunk plastic film.
On reception and after unpacking, check the equipment for damage. For transport purposes, refer to the weight
(page 5) and dimensions given
below.
D
G
F
E
J
H B A K
C
D
A
C
C/2
A mm B mm C mm D mm E mm F mm G Ø mm H mm J mm K mm
HM 60 N 1698 1583 538 625 540 390 150 1098 281 1665
HM 60 N BG 2000-S 60 1698 1583 538 801 540 390 150 1098 281 1665
HM 70 1743 1630 678 797 680 390 150 1289 285 1720
HM 70 N BG 2000-S 70 1743 1630 680 937 680 390 150 1289 285 1720
HM 100 N 2093 2030 680 797 680 390 150 1693 285 2120
HM 100 N BG 2000-S 100 2093 2030 680 937 680 390 150 1693 285 2120
HM 150 Jumbo 2124 2117 1020 1440 1020 600 250 1383 590 2250
HeatMaster 60 N
Without burner With ACV BG 2000-S
premix gas burner
