BURNER FEATURES
ACV BM 101 AND BM 151 OIL BURNERS
Description
The use of new technology enables our medium output burners to
meet current performance and emissions quality requirements.
These burners are fitted with high quality components including a
two-stage oil pump that permits soft start.
Components:
- Landis & Gyr relay
- A.E.G. motor
- Suntec pump
- May & Christe transformer
- Landis & Gyr oil preheater
Features
- Easy to install – fitted with safety closure and new burner
suspension system.
-
The burner air pressure adjusts to the pressure in the burner
chamber.
-
An automatic damper shuts off the air flow when the burner is
turned off, preventing the boiler from cooling.
-
Quiet and extremely reliable.
-
Adjustable to the depth of the boiler burner chamber thanks to
the adjustable bracket at the mouth of the burner chamber.
-
Three air adjustment points to ensure the best air/oil mixture.
• upstream air presetting
• primary setting
• combustion head setting

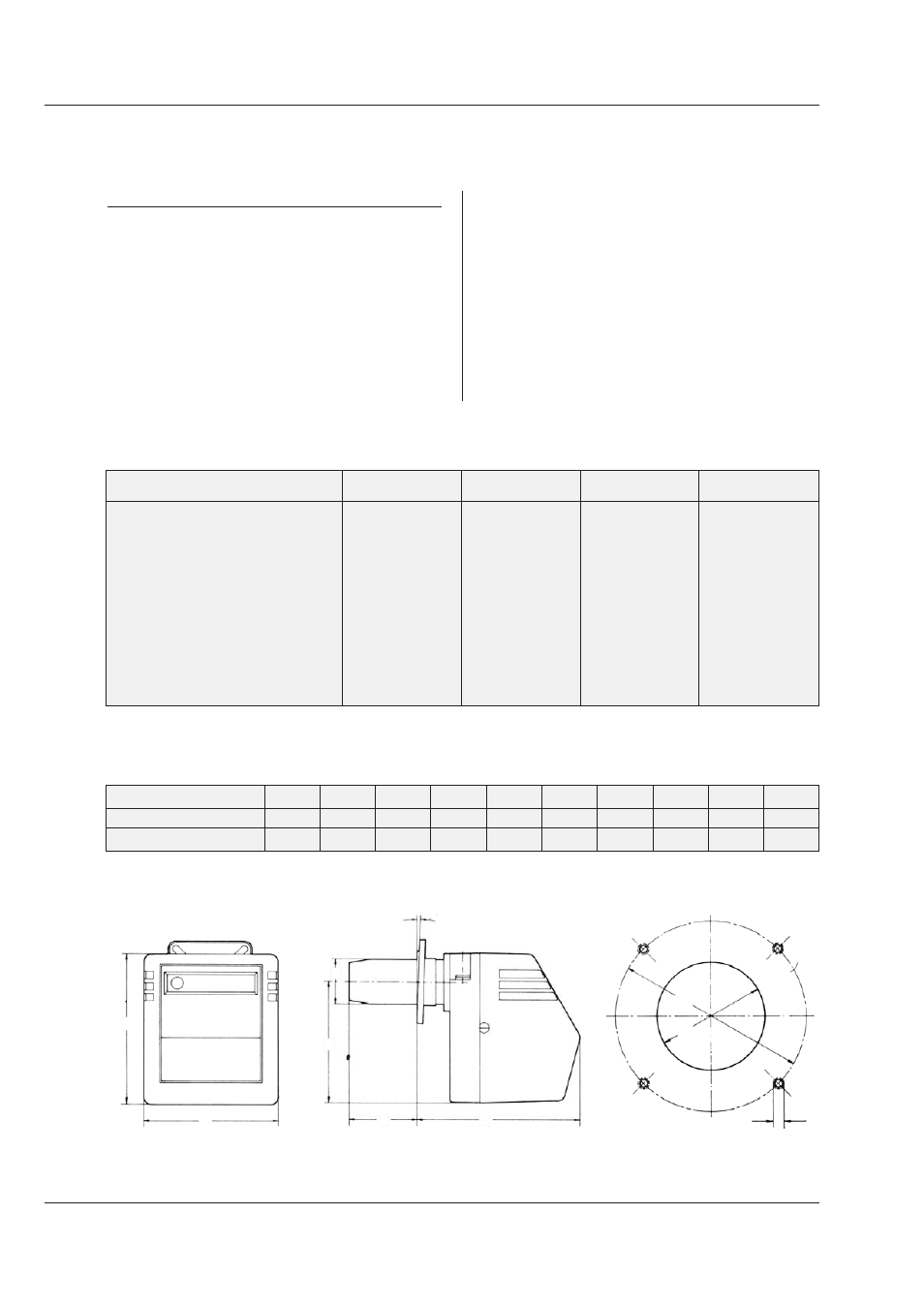

BM oil burners dimensions
A mm
B mm
C mm
D mm
E mm
F mm
G Ø
L Ø
LK Ø
Kg
BM 101
260
300
250
310
60 - 150
M 8
90
95
125 - 180
14
BM 151
280
340
280
350
60 - 190
M 8
115
120
156 - 200
20
Oil burner specification and perfomances
HM 60 N
HM 70 N
HM 100 N
HM 150 JUMBO
Burner type
BM 101
BM 101
BM 151
BM 151
Input
kW
69.9
69.9
107.0
154.0
Nozzle flow
US Gal/h
1.50
1.50
2.00
3.00
Nozzle angle
60°
60°
60°
60°
Oil flow
Kg/h
5.9
5.9
8.92
13.0
Pump pressure
bar
10.5
10.5
13.5
12.5
Pressure drop combustion chamber
mbar
0.6
0.6
1.4
0.6
Flue gas temperature (net)
°C
175
170
170
181
CO
2
%
12.5
12.5
12.5
12.5
Mass rate combustion
products
(grammes per second)
29.6
29.6
44.8
64.7
LK
L
F
G
3°
C
E
D
A
B
