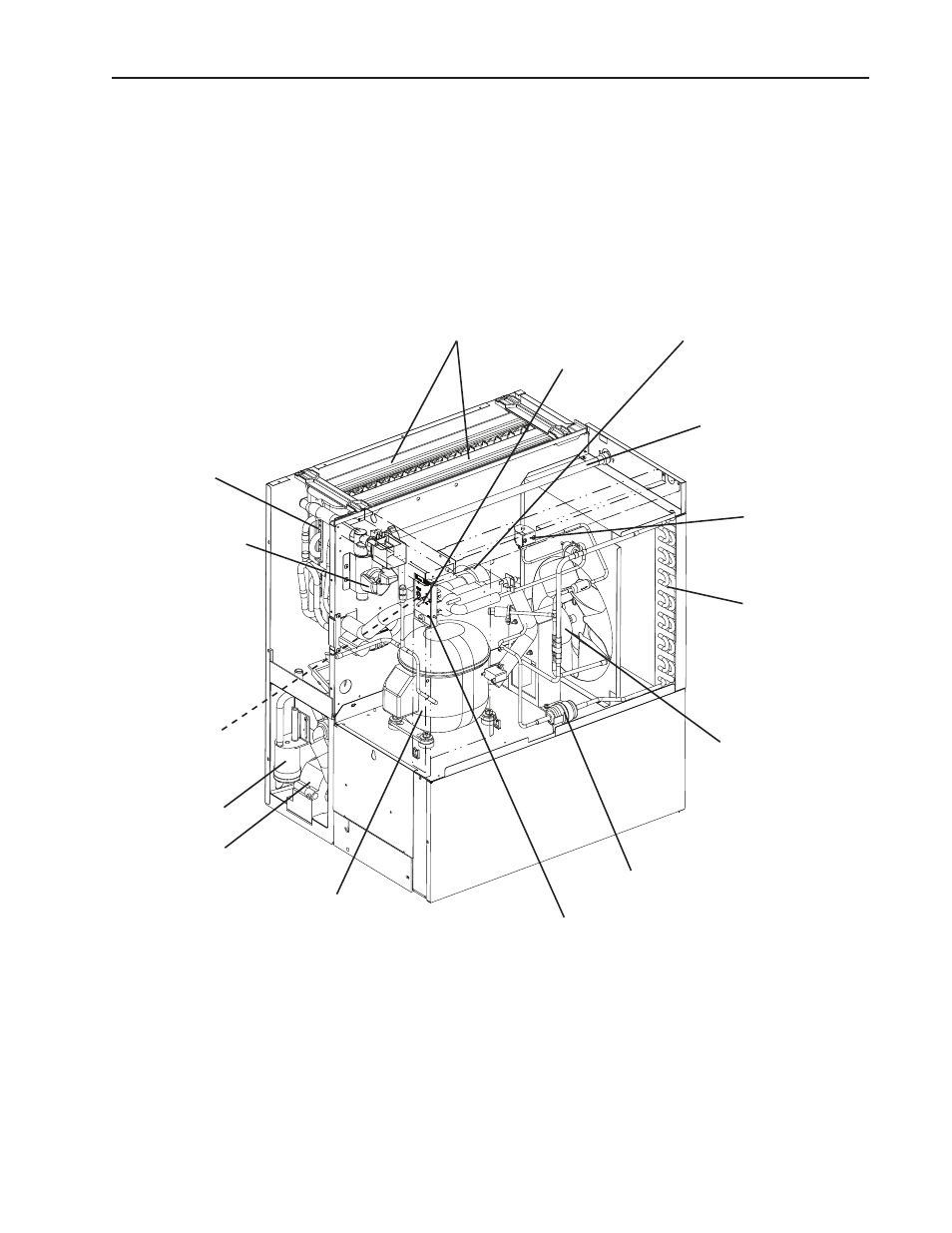

II. General Information
A. Construction
1. KM-320MAH (air-cooled)
Spray Tubes
Water Supply Inlet
Hot Gas Valve
Expansion Valve
Fan Motor
Drier
Compressor
Control Box
(shown transparent to allow view
of other components)
Control Switch
Bin Control
Thermostat
Float Switch
Water Pump
Evaporator
Condenser
Cleaning Valve
