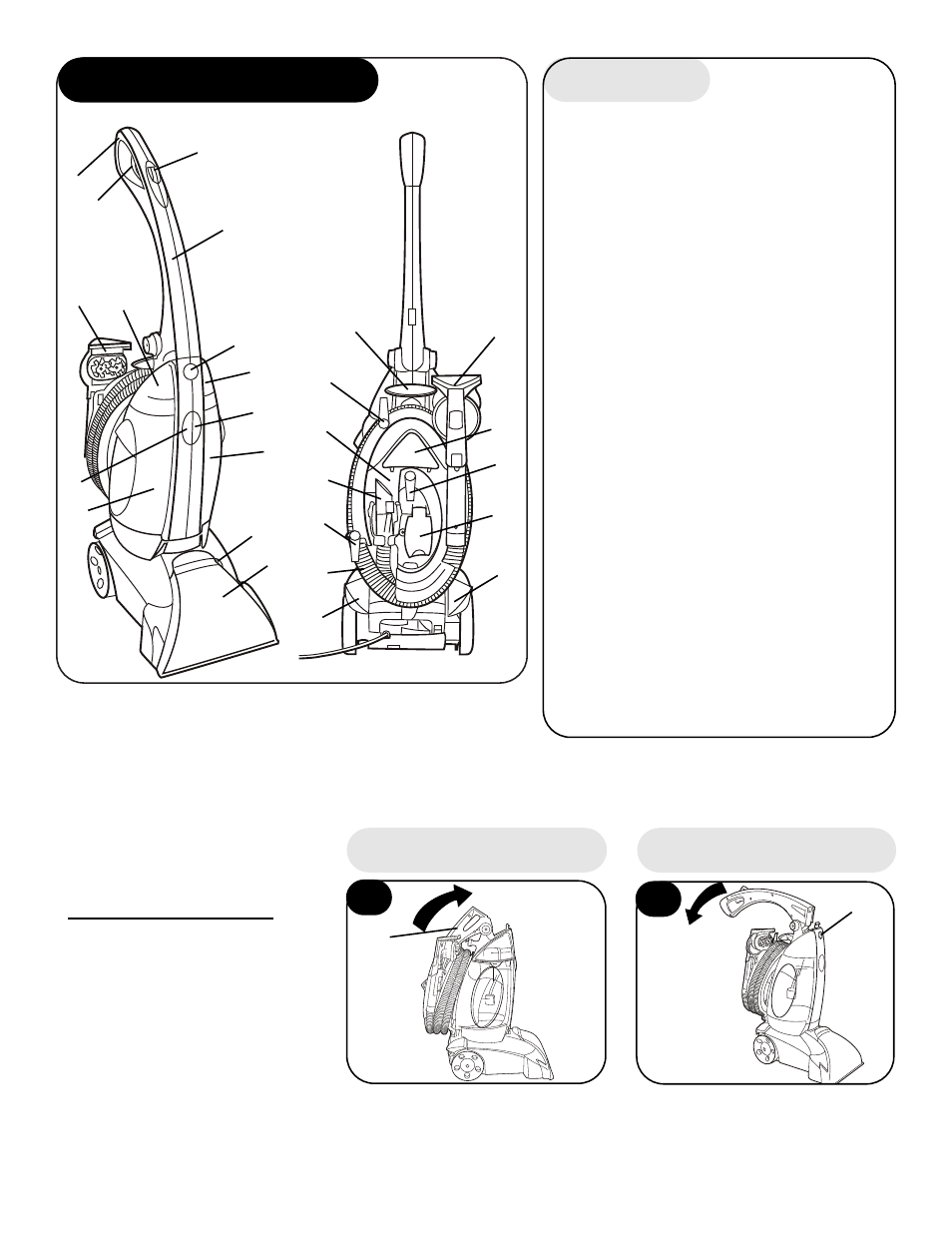

Cleaner Description

Features

Press upper handle release

button (B) to fold handle.

1.

Hand grip

2.

Solution trigger:

press to release

cleaning solution

3. Clean Surge™ button
4.

Upper handle

5.

Upper handle release button

6.

Solution tank cap/measuring cup

7.

Solution tank release button

8.

Solution tank

9. Brush setting selector
10. Nozzle
11. Recovery tank
12. Recovery tank release button
13. Powered hand tool
14. Recovery tank cap
15. Stair/upholstery nozzle
16. Cord hooks (tool caddy removed)
17. Hose door
18. Handle release pedal
19. ON/OFF pedal
20. Hose
21. Cord hooks (tool caddy stored on

cleaner)

22. Hose connector
23. Tool caddy

This deep cleaner is intended for
household use.

Operate deep cleaner only at voltage
specified on data plate on back of

cleaner. Plug deep cleaner into a proper-

ly grounded outlet.

How to fold handle

Unfold handle

16

22

17

20

23

13

13

15

18

12

11

10

9

19

7

8

6

14

21

21

16

5

4

3

2

1

B

A

Your HOOVER
Deep Cleaner is
fully assembled and
ready to begin
cleaning!

1

2

Raise upper handle (A) to

upright position until it

locks in place.
