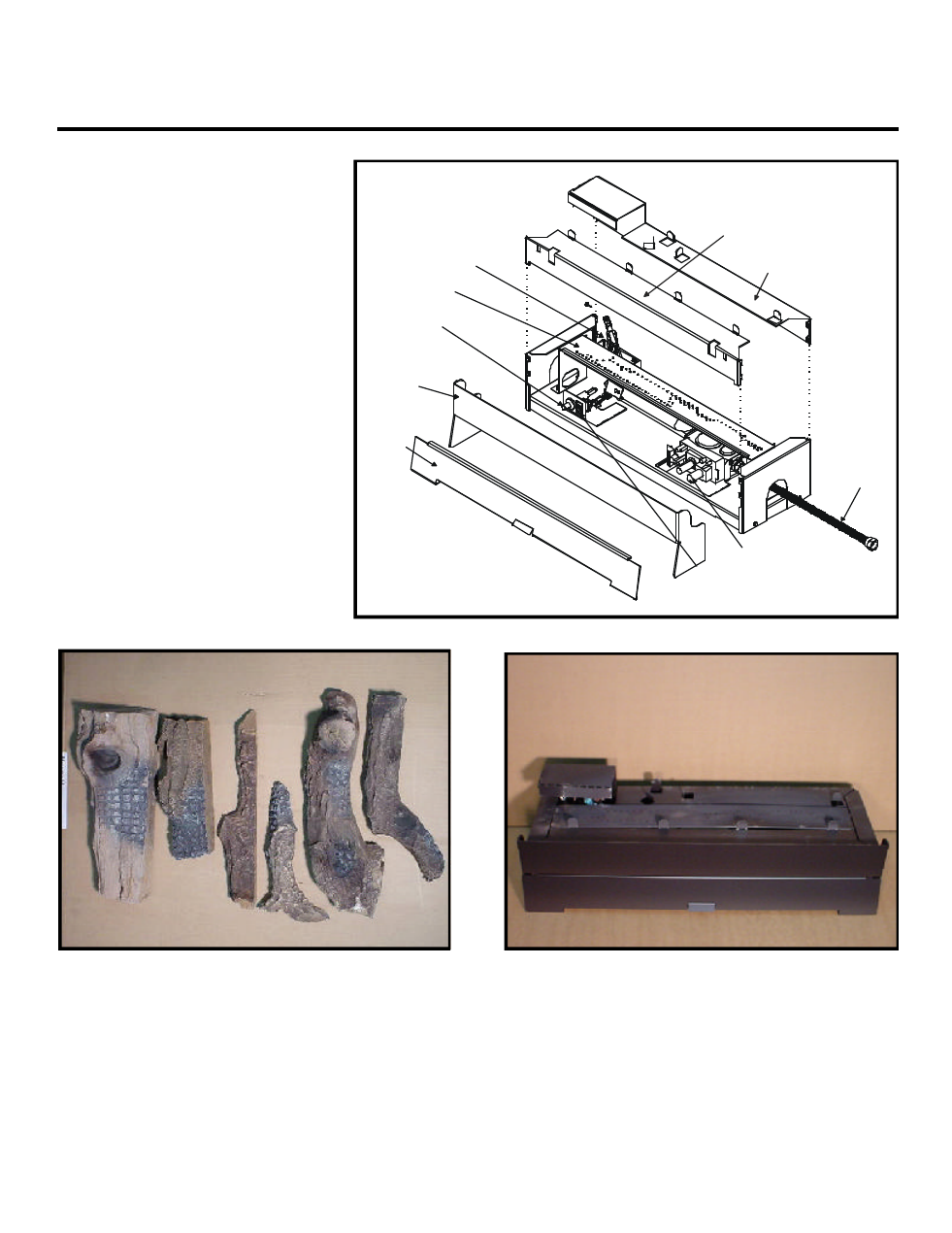

LOG PLACEMENT
INSTRUCTIONS
STEP 1:
Attach grate to as-
sembly by sliding hooks into open-
ings on the front surround.
STEP 2:
Ensure that tabs on
front and rear surrounds are bent
as shown in Figure 1. Carefully
remove logs from carton and place
as shown.
NOTE: Overhead view and front view of burner,
decorative front and surround.
Log Set Assembly: GRL-700-AU-LOGS
Model: GRL-700-AU
Figure 1
CAUTION: Logs are fragile. Carefully remove the
logs from the packaging.
1
5
2
3
4
6
u
GRATE
CONTROL
ACCESS
COVER
PILOT
ASSEMBLY
BURNER
ON/OFF
SWITCH
GAS
VALVE
FLEX TUBE
PIEZO
IGNITOR
FRONT
SUROUND
REAR
SURROUND
