SPECIFICATIONS
Range ........................... Up to 30 ft. (9.1 m)
[varies with surrounding
temperature].
Sensing Angle .............. 360°
Electrical Load .............. Up to 120 Watt Maxi-
mum Incandescent (Up
to 60 Watt Maximum
each lampholder).
Bulb Type ...................... Candelabra Base, Type
“B”, 60 Watt Maximum
Power Requirements .... 120 VAC, 60 Hz
Operating Modes .......... TEST, AUTO/ACCENT,
and MANUAL MODE
ON-Timer ...................... 1, 5, 10 minutes
D
UAL
B
RITE
® Timer .......... Off, 3, 6 Hrs, Dusk-to-
Dawn
DESA Specialty Products™ reserves the right to
discontinue products and to change specifications at
any time without incurring any obligation to incorpo-
rate new features in products previously sold.
2. Cut desired amount of foam tape needed to
adhere the lens shield to the sensor lens.
3. Remove paper backing from one side of cut
foam tape and adhere foam tape to inside of
lens shield.
4. Remove paper backing from other side of cut foam
tape and adhere lens shield to sensor lens.
5. Retest to confirm that the sensor is no longer
false triggering.
6. After switches are set and testing is complete,
use the 4 sensor cover screws to install the
sensor cover.
Note: To help determine amount of lens shield
required, apply small sections one at a time. Ad-
ditional sections can be applied if necessary.

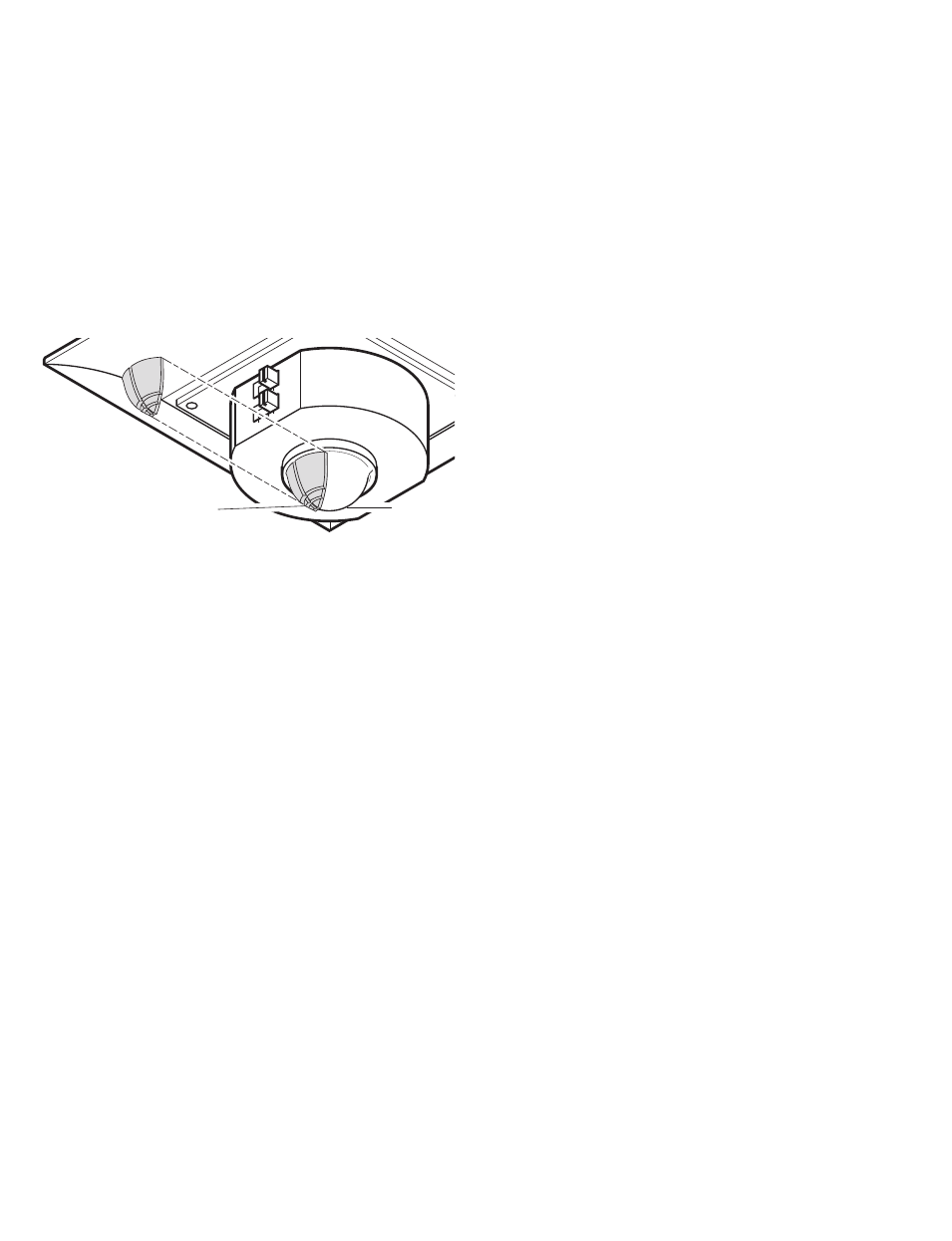

Lens Shield Sensor
Lens
