2 598-1219-04

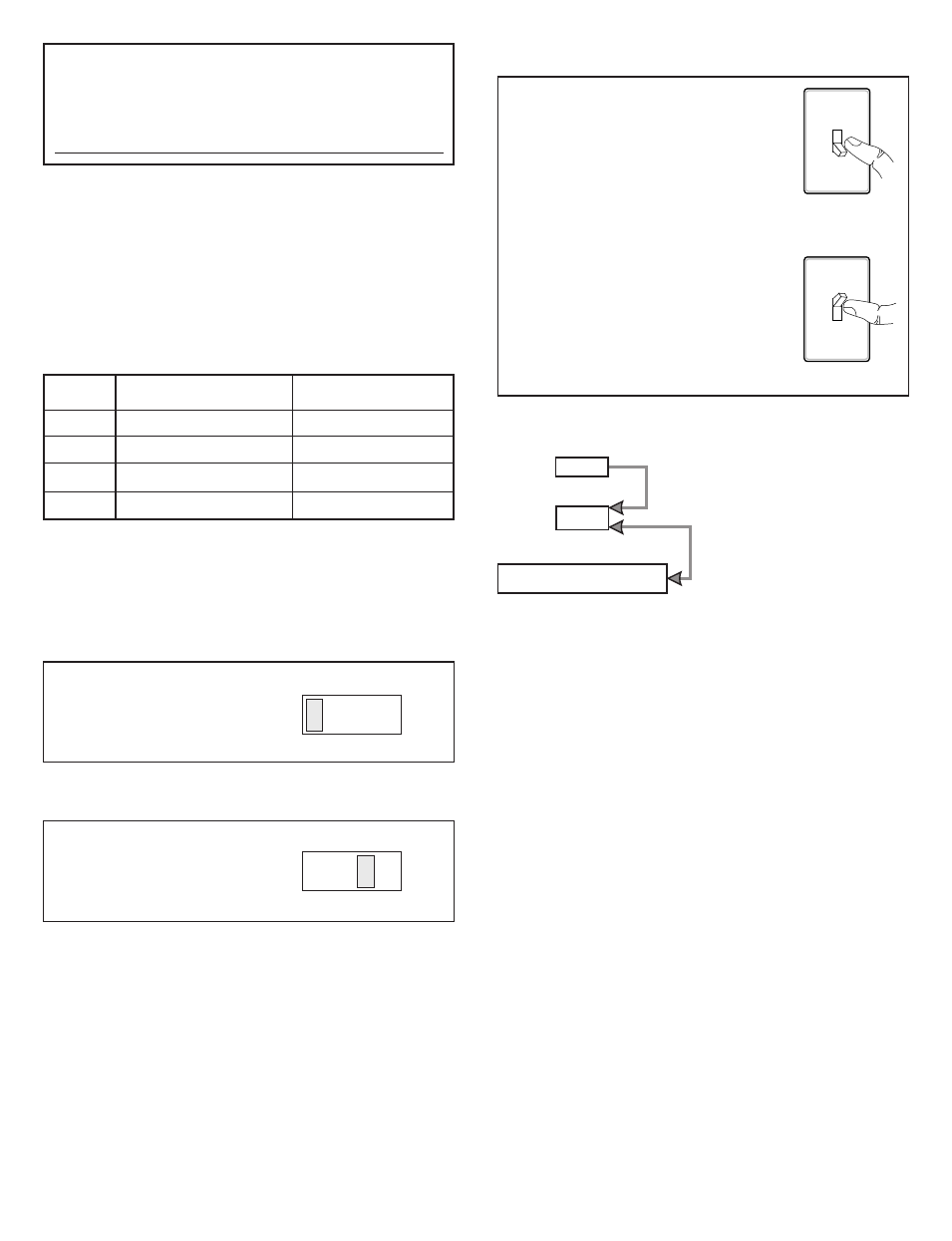

MANUAL MODE
AUTO
TEST
ON-TIME
TEST 1 5 10 MIN
TEST
Set ON-TIME switch to
1, 5, or 10 minutes.
AUTO
ON-TIME Switch at 1, 5, or
10 minutes
... back on.
1 Second OFF
then...
Manual mode only works at
night because daylight returns
the sensor to AUTO.
Flip the light switch off for
one second then back on to
toggle between AUTO and
MANUAL MODE.
Manual mode works only with
the ON-TIME switch in the 1,
5, or 10 position.
MODE SWITCHING SUMMARY
Flip light switch off
for one second then
back on*
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the cali-
bration time the control will be in the AUTO mode.
MANUAL MODE
ON-TIME
TEST 1 5 10 MIN
D
UAL
B
RITE
® DIMMER CONTROL
Light comes on half power for selected time after
dusk (Off, 3 hr., 6 hr., until dawn). If motion is sensed,
the light turns on full power for the ON-TIME (1, 5,
or 10 minutes) then returns to accent mode.
Set the ON-TIME switch
on the sensor to TEST.
REQUIREMENTS
• The Light Control requires 120 volts AC.
• If you want to use Manual Mode, the control must
be wired through a switch.
• Some electrical codes require installation by
a qualified electrician.
Mode: On-Time Works: Day Night
Test 5 Sec x x
Auto 1, 5, or 10 min x
Accent Off, 3, 6 Hr, to Dawn x
Manual Until Dawn* x
OPERATION
Note: When first turned on wait about 1 1 /
2
minutes
for the circuitry to calibrate.
* resets to Auto Mode at dawn.
Before installation, record the model number
listed inside the fixture. Attach receipt in case
of possible warranty issues.
Model Number:
