FEATURES
• Light comes on when motion is detected.
• Automatically turns light off.
• Half power Accent lighting.
• Photocell keeps the light off during daylight
hours.
REQUIREMENTS
• The Light Control requires 120 volts AC.
• If you want to use Manual Mode, the control
must be wired through a switch.
• Some electrical codes require installation
by a qualified electrician.
Diecast Motion
Sensing Porch Light
for Canadian Tire
This package includes:
• Porch Light
• Easy to use Universal Mounting Bracket
• Mounting Hardware
• Wire Nuts
• Lens Shield
Model SL-4300
© 2004 DESA Specialty Products™ 598-1208-00
Mode: On-Time Works: Day Night
Test 5 Sec x x
Auto/ 1, 5, or 10 min x
Accent Off, 3, 6 Hr, to Dawn x
Manual Until Dawn* x
OPERATION
Note: When first turned on wait about 1 1 /
2
minutes
for the circuitry to calibrate.
* resets to Auto Mode at dawn.
ON-TIME
TEST 1 5 10 MIN
TEST
Set ON-TIME switch to
1, 5, or 10 minutes.
AUTO
ON-TIME Switch at 1, 5, or
10 minutes
... back on.
1 Second OFF
then ...
Manual mode only works at night
because daylight returns the sen-
sor to AUTO.
Flip the light switch off for one
second then back on to toggle
between AUTO and MANUAL
MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.

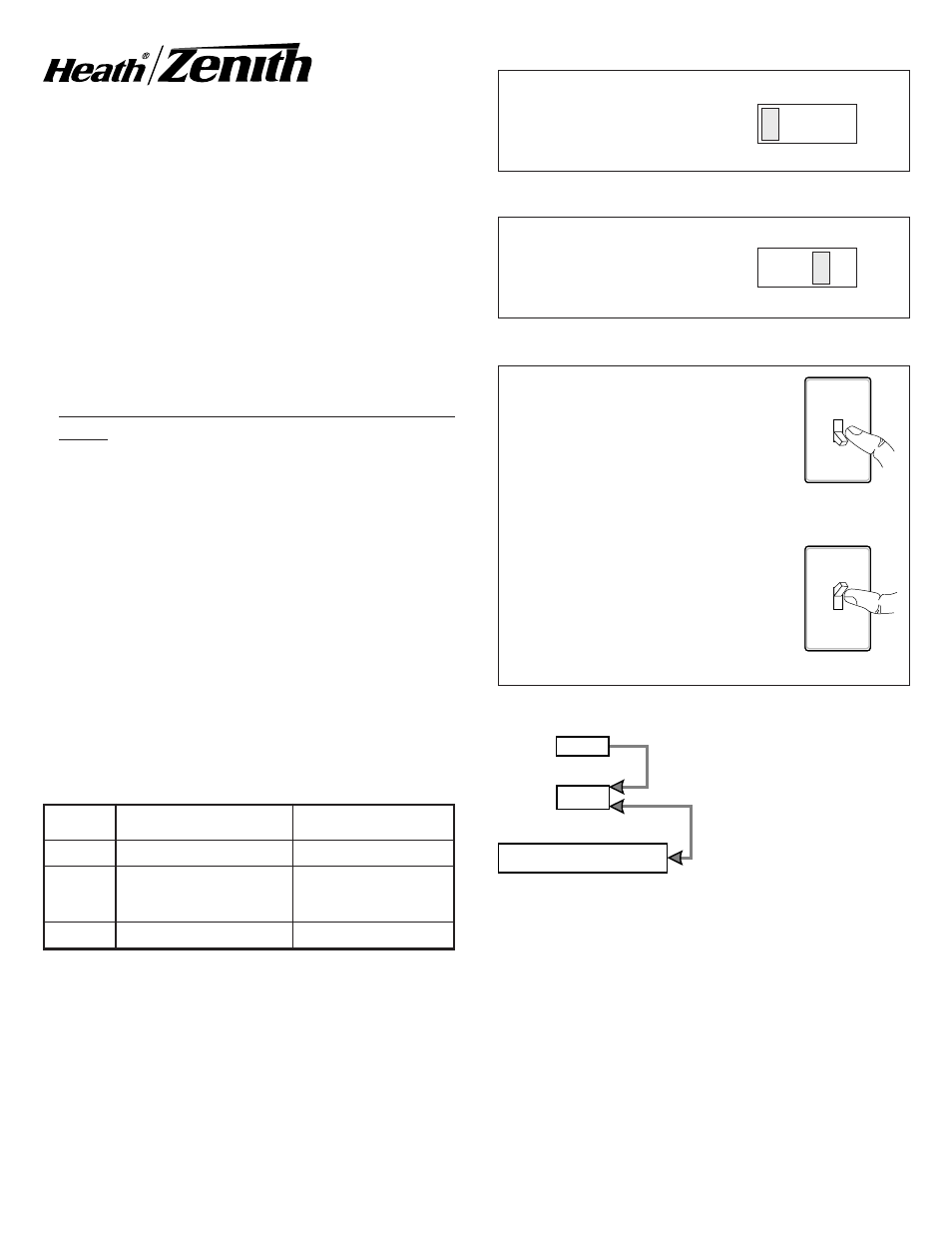

MODE SWITCHING SUMMARY
Flip light switch off
for one second then
back on*
* If you get confused while switching modes, turn the
power off for one minute, then back on. After the
calibration time the control will be in the AUTO mode.
MANUAL MODE
AUTO
TEST
MANUAL MODE
ON-TIME
TEST 1 5 10 MIN
DUAL BRITE ® DIMMER CONTROL
Light comes on half power for selected time after
dusk (Off, 3 hr., 6 hr., until dawn). If motion is sensed,
the light turns on full power for the ON-TIME (1, 5,
or 10 minutes) then returns to accent mode.
Set the ON-TIME switch
on the sensor to TEST.
