Select Readouts
Select Readouts sets individual digital
readouts on the Instrument Views, all the Chart Views, and the Big Digits
Views. This feature allows you to select what data will be displayed in each
of a variable number of fixed-position data windows arranged at the left
edge of the screen on various views, or whether a particular window will be
turned off, displaying nothing in that area. Data windows can display
readouts from supported accessories such as Temp/Speed.
NOTE: Standard Chart View, Chart/Chart Combo View, and Chart/Bird's Eye Combo
View, all share the same set of 5 selectable readouts, that can all be set one way
for navigation mode using Select Nav Readouts, and another way for non-
navigation mode using Select Readouts. When you change the readouts display on
one of these views, you also are changing them on all the other views that share
the same configuration. See Chart Views, Chart/Chart Combo View, and
Chart/Bird’s Eye Combo View for more information. Also, you can set these 5
readouts with navigation mode settings, so that, when you are navigating, these
views contain navigation data instead of the regular settings. See Navigation
X-Press™ menu: Select Nav Readouts for more information.
NOTE: Bird's Eye Big Digits View and Chart Big Digits View both share the same
set of 8 selectable readouts. When you change the readouts display on one of
these views, you are also changing them on the other view. See Bird’s Eye Big
Digits View and Chart Big Digits View for more information.
NOTE: Bird's Eye Instrument View and Chart Instrument View both share the
same set of 3 selectable readouts. When you change the readouts display on one
of these views, you are also changing them on the other view. See Bird’s Eye
Instrument View and Chart Instrument View for more information.

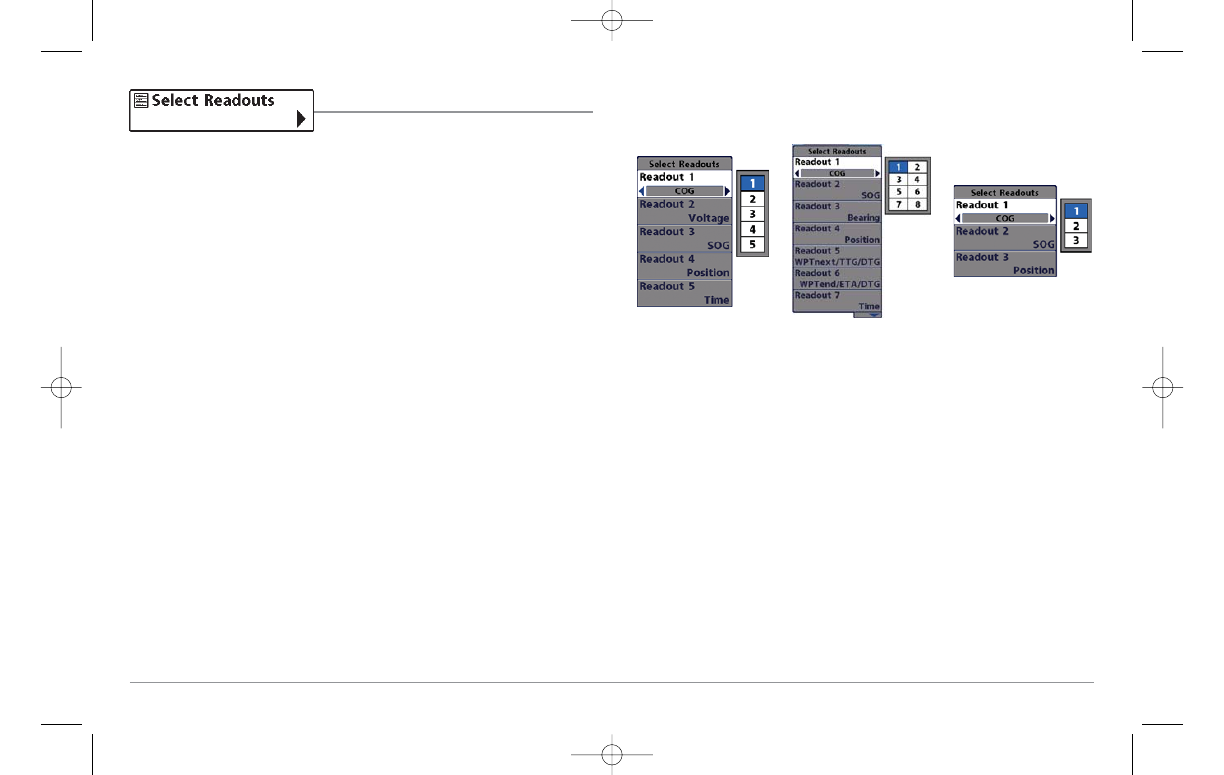

Select Readouts:
5 Data Windows
(Non-Navigation Only)
Used by All Standard
Chart Views
Select Readouts:
8 Data Windows
Used by
Bird’s Eye Big Digits View
and Chart Big Digits View
Select Readouts:
3 Data Windows
Used by Bird’s Eye
Instrument View and
Chart Instrument View
50
