Hunter Fan 23951 User Manual

Parts guide, Hardware, Fan parts

background image

Hardware

(Drawn to Scale)

Fan Parts

(Not Drawn to Scale)

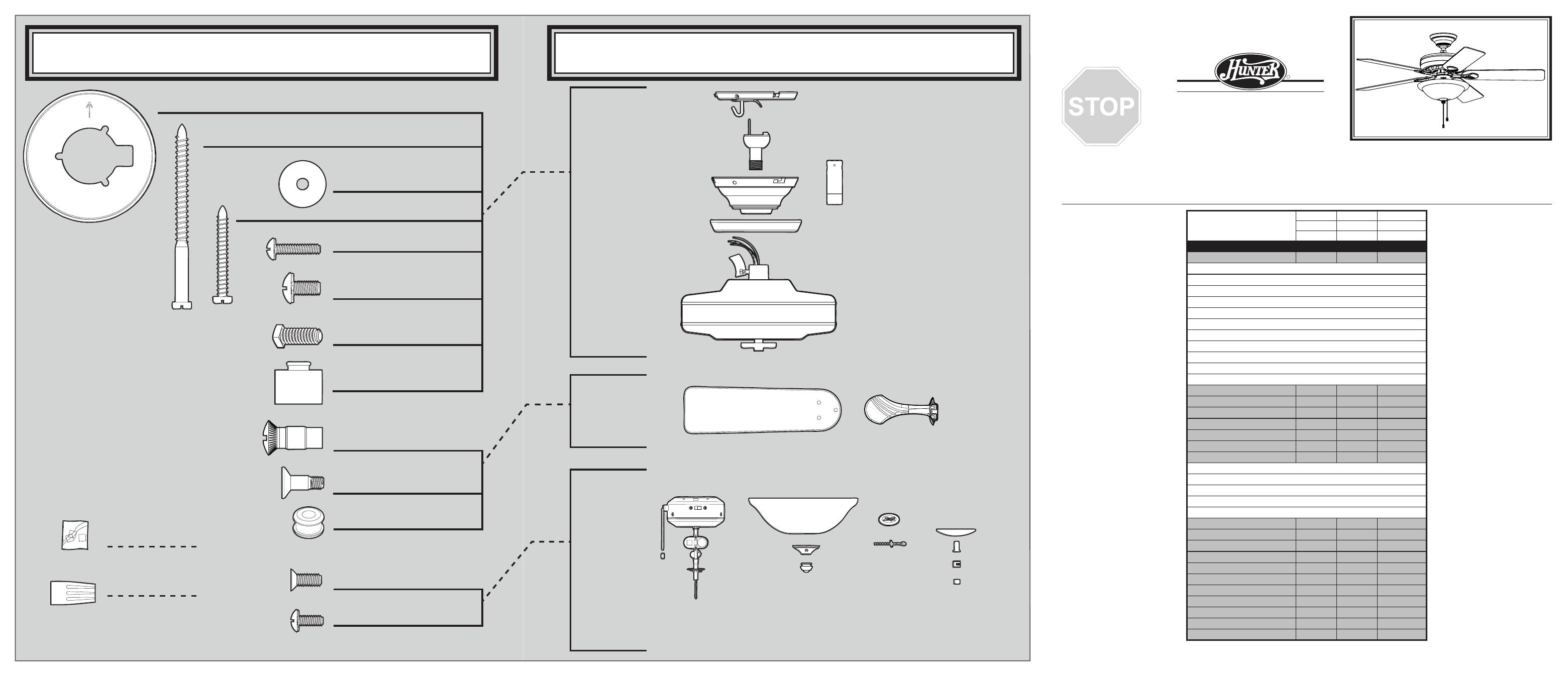

PARTS GUIDE

PARTS GUIDE

Using this Parts Guide, make sure all

parts are included in the box.

If parts are missing, DO NOT RETURN

THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.

REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.

R

SINCE

1886

Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com • 98000-01-872 03-17-2008 •

©

2008

Parts List

Model #

23951

23952

Asm. Dwg. #

98274-01

98274-02

Finish

New Bronze Brushed Nickel

Item Name

Qnty

Part #

Part #

* Hanging System Kit

94945-30

94945-09

Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw
Flat Washer
Mounting Isolator

*

Locking Screw

Switch/Housing Assembly

1

98384-30

98384-09

Extension Pipe / 6” Downrod

1

74228-09

74228-09

Light Kit Assembly

1

98378-01

98378-01

Blade Iron Set

1

98175-05

98175-05

Blade Set

1

76238-84

76238-85

Screw, Blade Iron Armature

11

63730-07

63730-07

Hardware Kit

1

98274-00-860

98274-01-860

Blade Grommet
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly

Balancing Kit

1

07570-01

07570-01

Pull Chain Pendant

2

74393-08

74393-08

Pull Chain

1

63756-23

63756-20

Pull Chain

1

63756-24

63756-26

Bottom Cap

1

74759-02

74759-02

Finial

1

74758-01

74758-01

Switch Housing Cap

1

73853-01

73853-01

Plug Button

1

73854-01

73854-01

Male Dummy Terminal

1

08198-01

08198-01

Female Dummy Terminal

1

08200-01

08200-01

Glass Globe

1

88285-01

88285-02

Hanger

Bracket

Assembly

Blade

Assembly

Switch

Housing

Assembly

Screw, Switch

Housing Assembly

Screw,

Machine, 6-32

Locking Screw

Set Screw

Screw, Blade

Iron Armature

Canopy Screw

Flat Washer

Screw, Blade

Assembly

3” Wood Screw

Low Profile

Washer

Balancing

Kit

Wire Nut

1.5” Wood Screw

Blade

Grommet

x 1

x 2

x 4

x 2

x 3

x 3

x 1

x 11

x 16

x 3

x 3

x 1

x 4

x 16

Mounting

Isololator

x 4
