18 601457_1107
ZT 2800 Filter
Figure 4-2
Solid fill tires are not recommended for Hustler turf equipment. On
any machine, with solid filled tires, the warranty claim will be denied.
Lubrication
Use SAE multi-purpose grease.
Electrical system
The electrical system is a 12-volt, negative ground. Recommended bat-
tery size is a garden tractor BCI group U1R with 225 or better cranking AMP
rating. A maintenance-free battery is recommended. Otherwise, follow bat-
tery manufacturer’s maintenance, safety, storing and charging specifications.
WARNING: Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals known to the State
of California to cause cancer and reproductive harm. Wash
hands after handling.
WARNING: Change batteries in an open well ventilated area,
away from spark and flames. Unplug charger before connect-
ing or disconnecting from the battery. Wear protective clothing
and use insulated tools.
WARNING: Avoid skin and clothing contact with battery
acid.
Always wear eye protection when checking the battery, acid
can cause serious injury to skin and eyes. If contact occurs,
flush area with clean water and call physician immediately.
Acid will also damage clothing.
Do not drink the battery electrolyte.
Do not allow open flame near the battery when charging.
Hydrogen gas forms inside the battery. This gas is both toxic
and flammable and may cause an explosion if exposed to
flame. Always remove the negative ground first and replace it
last.
Do not overfill battery.
Electrolyte may overflow and damage paint, wiring or struc-
ture. When cleaning the battery, use soap and water. Be care-
ful not to get soap and water into the battery. Clean the battery
terminals with a solution of four parts water and one part bak-
ing soda when they become corroded.
WARNING: Shorts caused by battery terminals or metal tools
touching metal tractor components can cause sparks. Sparks
can cause a battery gas explosion which will result in personal
injury.
Prevent the battery terminals from touching any metal tractor
parts when removing or installing the battery.
Do not allow metal tools to short between the battery terminals
and metal tractor parts.
WARNING: Incorrect battery cable routing could cause dam-
age to the tractor and battery cables. This can cause sparks
which can cause a battery gas explosion which will result in
personal injury.
Always disconnect the negative (black) battery cable(s) before
disconnecting the positive (red) cable(s).
Always connect the positive (red) battery cable(s) before con-
necting the negative (black) cable(s).
Hydraulic system
The FasTrak Super Duty 48/54/60 tractors are equipped with two
Hydro-Gear ZT 2800 transaxles. Fig. 4-1
IMPORTANT: Never use hydraulic or automatic transmission fluid in
this system; use only motor oil as specified. Remember, dirt is the primary
enemy of any hydraulic system.
The hydraulic expansion tank is located in front of the engine and under
the operator’s platform. Fig. 4-1
Check oil level in hydraulic system after every 50 hours of operation or
weekly, whichever occurs first. Check more often if system appears to be
leaking or otherwise malfunctioning.
Fluid level should be at the “Full Cold” line on the expansion tank. Use
only SAE 20W50 SL service motor oil.
Initial system oil and filter change must be after the first 75 hours of use
or 1 year whichever comes first. Thereafter, replace filter and oil in each
transaxle every 2 years or 200 hours, whichever comes first.
NOTE: The fil-
ter guard must be removed to access filter.
Each transaxle’s filter is located per Fig. 4-2. A standard oil filter wrench
is used to change filter, threads are right handed. Use a Hustler approved
filter element only.
Purging procedures must be followed after changing the oil and filter.
Refer to Parts Manual (see the Product Literature section of this manaul for
ordering information) for more detailed oil changing and purging informa-
tion.
WARNING: When washing the mower, direct the spray away
(especially if using a power washer) from the Hydro-Gear ZT
2800 transaxle’s seals to prevent water intrusion and to ensure
component performance.

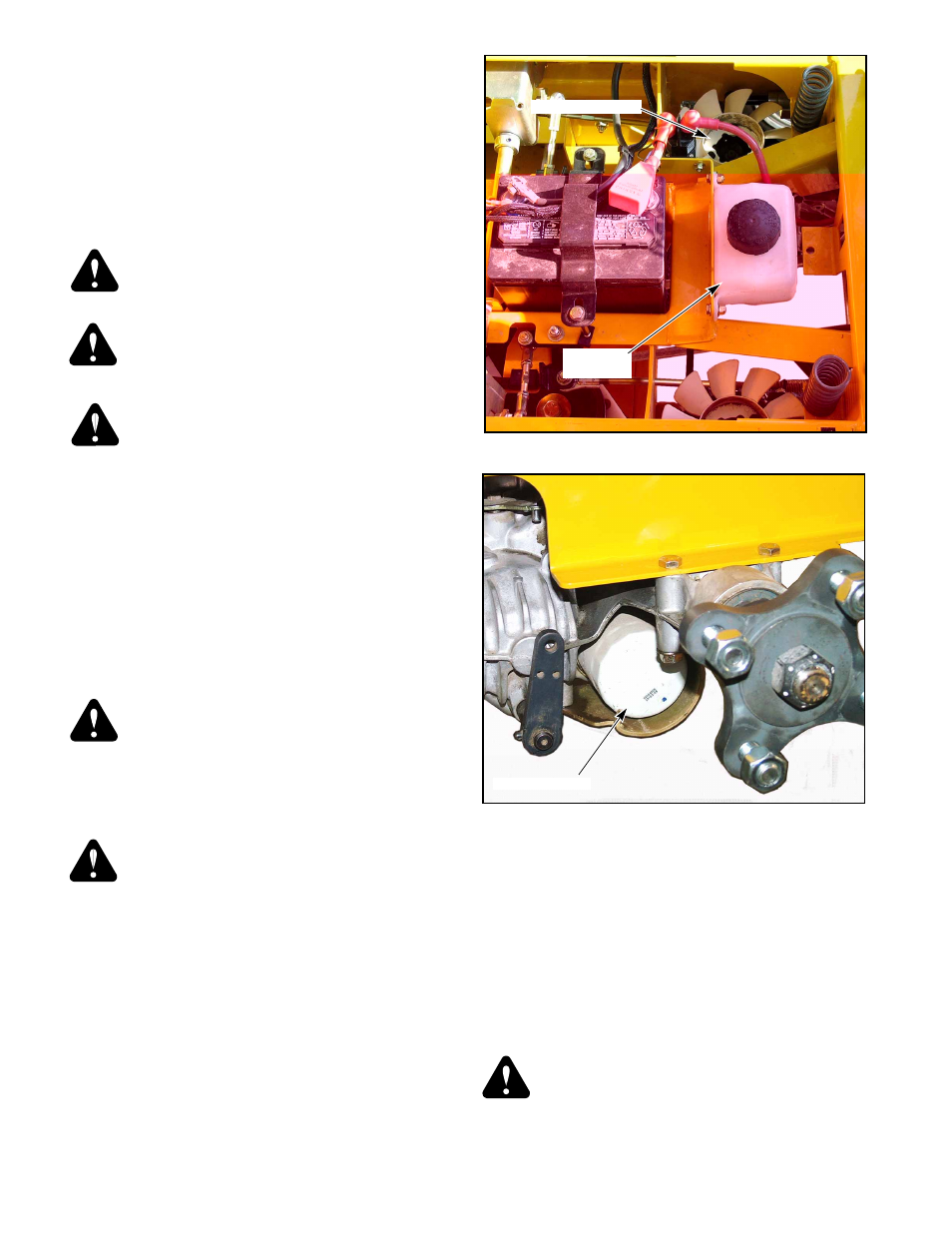

Figure 4-1
ZT 2800 transaxle
Expansion
tank
