16

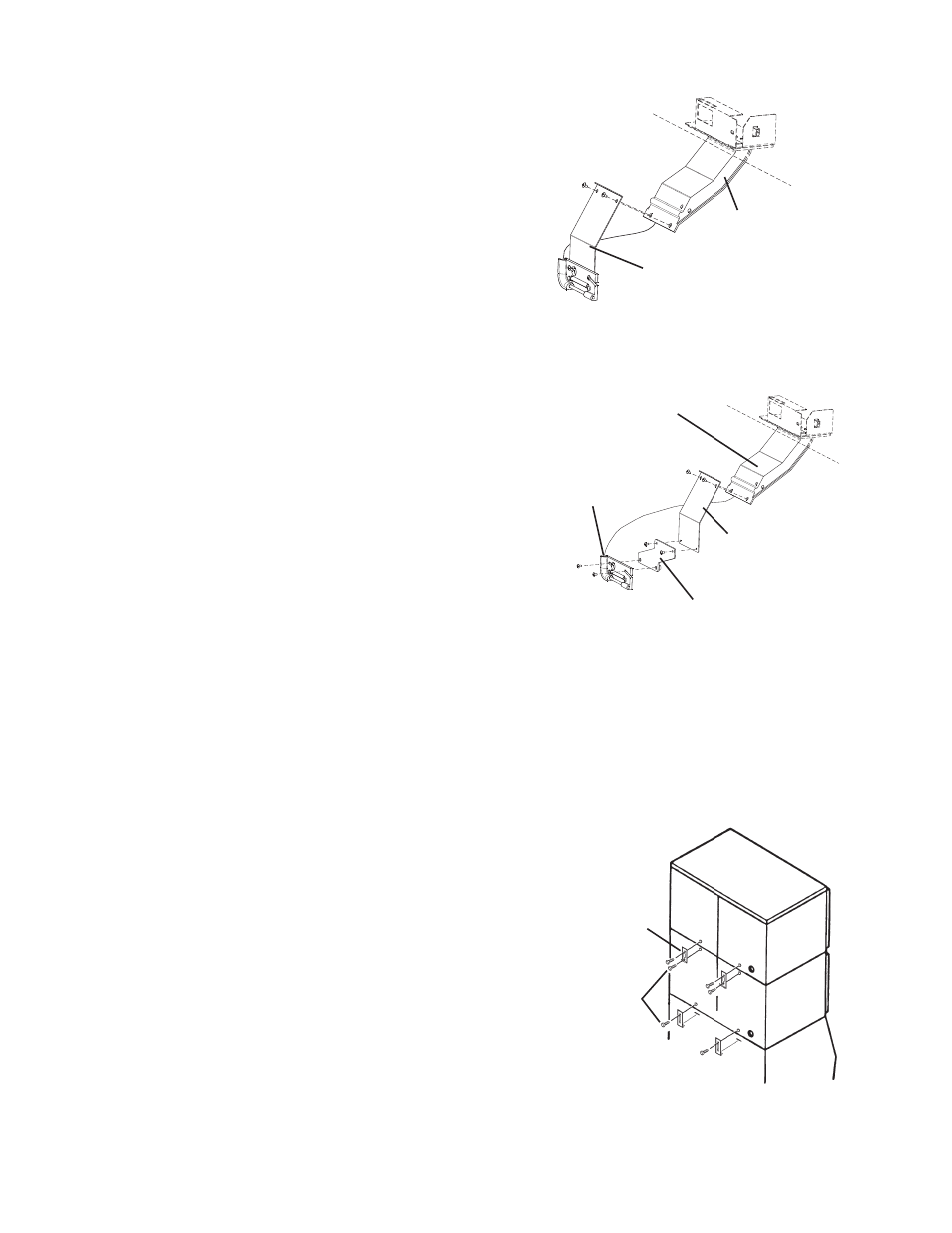

If a Hoshizaki B-800, B-900 or B-1150 bin is being used:

g. Put aside the "Z" bracket; it is not needed with the

bins listed above.

h. Remove the two screws from the lower part of the

thermostat bracket (plastic) and use them to attach
the thermostat extension bracket (stainless) to the
thermostat bracket (plastic).

Thermostat Bracket
(plastic)

Thermostat Extension
Bracket (stainless)

If a Hoshizaki B-1300, B-1500, B-1650 or non-Hoshizaki bin is being used:

g. Remove the two screws securing the thermostat

bulb attachment (plastic) to the thermostat extension
bracket (stainless). Use the two screws to attach
the "Z" bracket (plastic) to the thermostat extension
bracket (stainless).

h. Use the two 4×10 stainless steel screws in the

accessory bag to attach the thermostat bulb
attachment (with attached thermostat bulb) to the "Z"
bracket.

i. Remove the two screws from the lower part of the

thermostat bracket (plastic) and use them to attach
the thermostat extension bracket (stainless) to the
thermostat bracket (plastic).

6) Level the icemaker/storage bin in both the left-to-right and front-to-rear directions. Adjust

the ice bin legs to make the icemaker level.

7) Place the panels and baffle in position (unless you are installing a second unit). (See "E.

Installation of Second Unit.")

E. Installation of Second Unit

1) See "D. Setup" for the lower unit installation.
) Remove the top panel and the top insulation of the lower

unit. The top panel and the top insulation of the lower unit
are not required when installing the second icemaker.

3) Unpack the second icemaker (upper unit), and remove all

shipping cartons, tape and packing.

4) Remove the panels of the second icemaker.
5) Stack the upper unit on top of the lower unit.
6) Secure the upper unit to the lower unit by using the two

universal braces and the four bolts provided.

Thermostat Bracket
(plastic)

Thermostat Bulb
Attachment (plastic)

"Z" Bracket (plastic)

Thermostat Extension
Bracket (stainless)

Universal
Brace

Bolt

Bin

Icemaker
(Upper
Unit)

Icemaker
(Lower
Unit)

Fig. 4

Fig. 5

Fig. 6
