15

CAUTION

Before operating the icemaker, the bin control thermostat assembly must be
installed correctly. Failure to properly install the assembly could result in ice
backup and unit damage.

5) Install the bin control thermostat.

a. Remove the baffle from the bin.
b. Remove the tie securing the bin control thermostat assembly. Then, remove the

thumbscrew and the "Z" bracket.

c. Remove the bin control thermostat assembly from the shipping hook by lifting it up

and shifting it to the right. Lower the thermostat extension bracket (stainless) with
the thermostat bulb attachment and thermostat bulb through the hole located at the
bottom of the icemaker. Next, lower the thermostat bracket (plastic) through the hole.

d. Slide the left side of the upper part of the assembly towards you and make sure it

is hooked on the wall. Make sure the left side and bottom of the assembly are flush
against the wall and base panel.

e. Secure the assembly in place with the thumbscrew (unless you are installing a

second unit).

f. Insert the plug into the receptacle on the assembly until it locks in place.

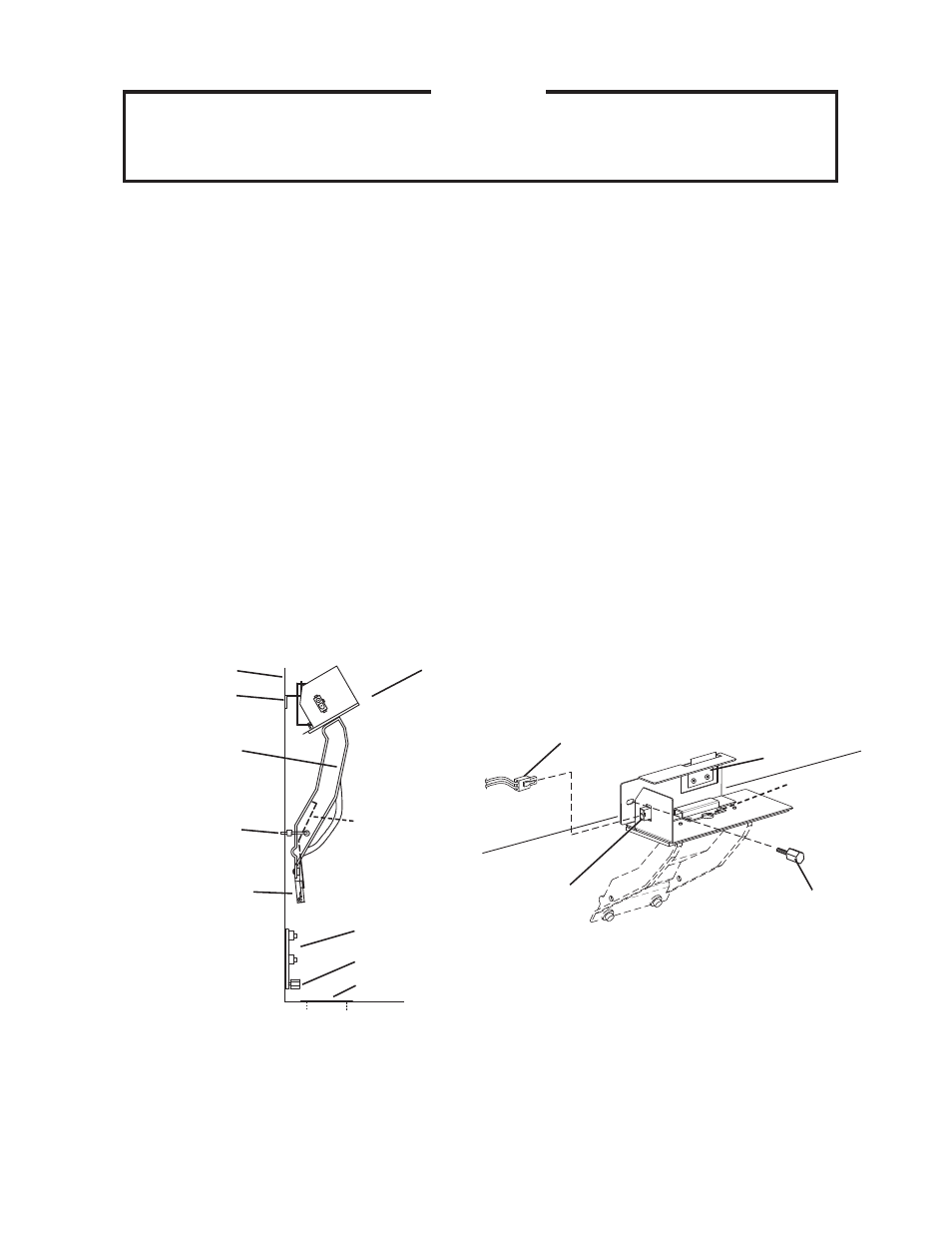

Fig. 3

Plug

Receptacle

Thumbscrew

Hook

Bushing

Bin Control Thermostat Assembly

Shipping Hook

Thermostat Bracket
(plastic)

Tie

"Z" Bracket

Thermostat Bulb
Attachment (plastic)
and Thermostat Bulb

Thumbscrew

Thermostat Extension
Bracket (stainless)

Hole

Wall
