The thermostat normally displays the actual (ambient) temperature.
• To view the setpoint temperature, briefly press the Up or Down button. The setpoint will
be displayed for 5 seconds and the screen illuminated for 12 seconds.
• To change the setpoint temperature, press the Up or Down button until the desired
value is displayed.

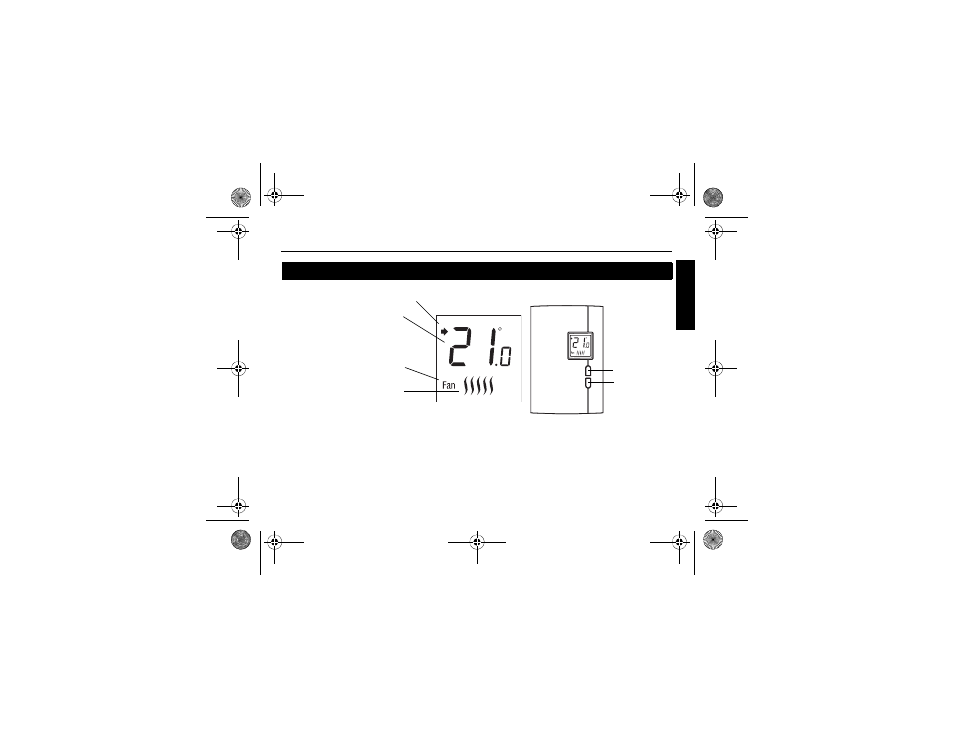

Temperature display and setting
Temperature display
Heating intensity indicator.
(No image appears when
heating is off.)
Up button
Down button
Appears when the setpoint is displayed
Appears when the thermostat
is configured for 5-minute
cycles. The thermostat must be
set to this configuration if it is
controlling a fan-forced heater.
