A complete Parts List is available at wwwHobartWelders.com
OM-240 438 Page 16

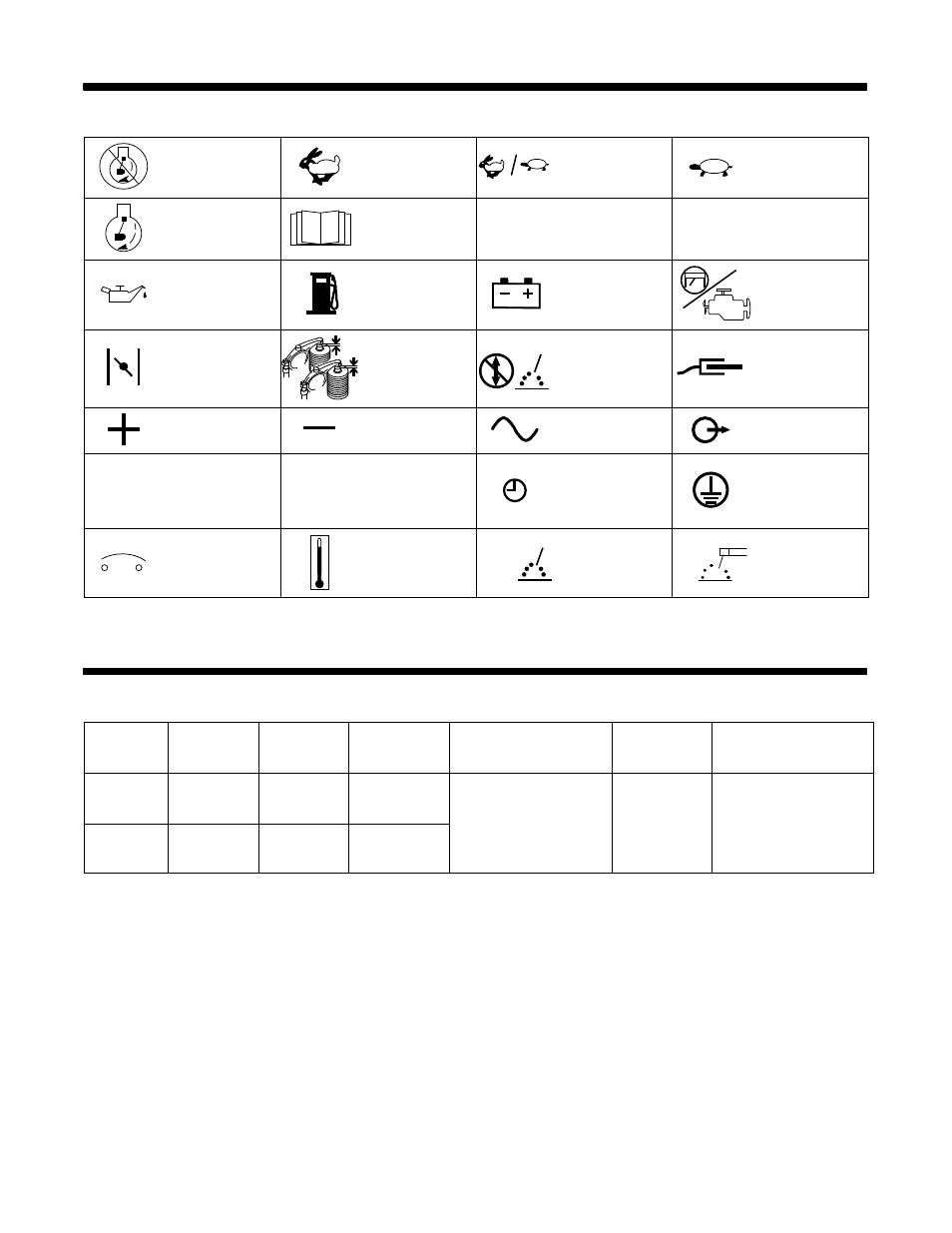

SECTION 3 − DEFINITIONS
3-1. Symbol Definitions
Stop Engine
Fast
(Run, Weld/Power)
Fast/Slow
(Run/Idle)
Slow (Idle)
Start Engine
Read Operator’s
Manual
A
Amperes
V
Volts
Engine Oil Fuel Battery (Engine) Engine
Engine Choke
Check Valve
Clearance
Do not switch while
welding
Work Connection
Positive Negative
Alternating Current
(AC)
Output
h
Hours
s
Seconds Time
Protective Earth
(Ground)
Circuit Protector Temperature
Welding Arc
(Electrode)
Stick (SMAW)
SECTION 4 − SPECIFICATIONS
4-1. Weld, Power, and Engine Specifications
Welding
Mode
Weld Output
Range
Rated
Welding
Output
Maximum
Open Circuit
Voltage
Generator Power Rating
Fuel
Capacity
Engine
CC/AC 50 − 225 A
225 A, 25 V,
100% Duty
Cycle
80 Peak: 11.0 kVA/kW
Continuous: 9.5 kVA/kW
Single-Phase
84/42 A, 120/240 V AC,
60 Hz (while not welding)
12 gal
(45 L) Tank
Kohler CH-680
Air-Cooled, Two-Cylinder,
Four-Cycle, 23 HP
Gasoline Engine CC/DC 50 − 210 A
210 A, 25 V,
100% Duty
Cycle
80
