Blade Set

Blade Iron Set

Fan Parts

(Not Drawn to Scale)

Canopy

Trim Ring

Canopy

Hardware

(Drawn to Scale)

Wood Screw

Wood Screw

Isolator

Wire Nut

Flat Washer

Blade Assembly Screw

Rubber Blade Grommet

62

Nylon Washer

214

216

215

Blade Iron Armature Screw

#6-32 Screw

Canopy Screw

#6-32 x 1/2" Screw

#6-32 x 3/8" Screw

(Decorative Arm)

Allen Wrench

79

Ceiling Plate

4

3

7

Hanger Ball

/ Downrod

Light Fixture

Switch Housing

Remote Transmitter

87

Globe / Shade

Finial

Bottom Cap

Balancing

Kit

75

Switch Housing Cover

29

Decorative Arm

142

Adapter Cover

8

Remote Cradle

88

Motor Housing Assembly

Arm Mounting

Ring

212

Alabaster Bowl

213

Model #

28194

Asm. Dwg. #

96532-01

Finish

Oil Rubbed Bronze

Item #

Item Name

Qnty

Part #

* Hanging System Kit

1

94423-57-000

2

Ceiling Plate

1

-----------

3

Canopy

1

-----------

4

Canopy Trim Ring

1

-----------

62

Canopy Screw (not shown)

3

-----------

64

Wood Screw

2

-----------

65

Wood Screw

2

-----------

68

Flat Washer

4

-----------

71

Isolator

4

-----------

7

Hanger Ball / Downrod Assembly

1

74290-21-308

28

Switch Housing

1

93464-01-308

29

Switch Housing Cover

1

93973-01-308

44

Blade Iron Set

1

93463-05-308

46

Blade Set

1

74853-16-000

47

Blade Iron Armature Screw

11

64403-01-247

8

Adapter Cover

1

84614-01-308

212

Arm Mounting Ring

1

74819-01-308

213

Alabaster Bowl

1

94342-02-000

142

Decorative Arm

3

93482-01-308

145

Light Fixture

1

84756-01-308

150

Globe/Shade

1

93969-01-000

79

Allen Wrench

1

64801-01-000

86

Remote Receiver (not shown)

1

84668-01-000

87

Remote Transmitter

1

85752-01-000

88

Remote Cradle

1

85785-01-000

148

Bottom Cap

1

64709-01-308

149

Finial

1

64711-01-308

* Hardware Kit

1

96532-00-860

66

Rubber Blade Grommet

15

05989-01-000

67

Blade Assembly Screw

15

63730-01-247

214

Nylon Washer

3

64199-01-000

215

#6-32 x 3/8” Screw, Decorative Arm

3

74506-13-247

216

#6-32 x 1/2” Screw

2

74506-03-247

69

#6-32 Screw

7

74506-03-247

70

Wire Nut

4

05172-01-000

75

Balancing Kit

1

07570-01-000

Part List

Before installing your fan, record the following information for your records and warranty assistance.

Missing / Broken Parts:

Call 1-888-830-1326

Fan does not work:

1. Reference the Trouble Shooting guide in

your Instruction Manual.

2. Call your Local Service Center.

3. Call Technical Support at 901-248-2222.

For additional information on:

Hunter Products Trouble Shooting

Dealer Location Service Center Locator

Call 1-800-448-6837

www.hunterfan.com

If parts are missing or damaged call 1-888-830-1326.

PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.

Model Name
Catalog No.
Serial No.
Date Purchased
Where Purchased

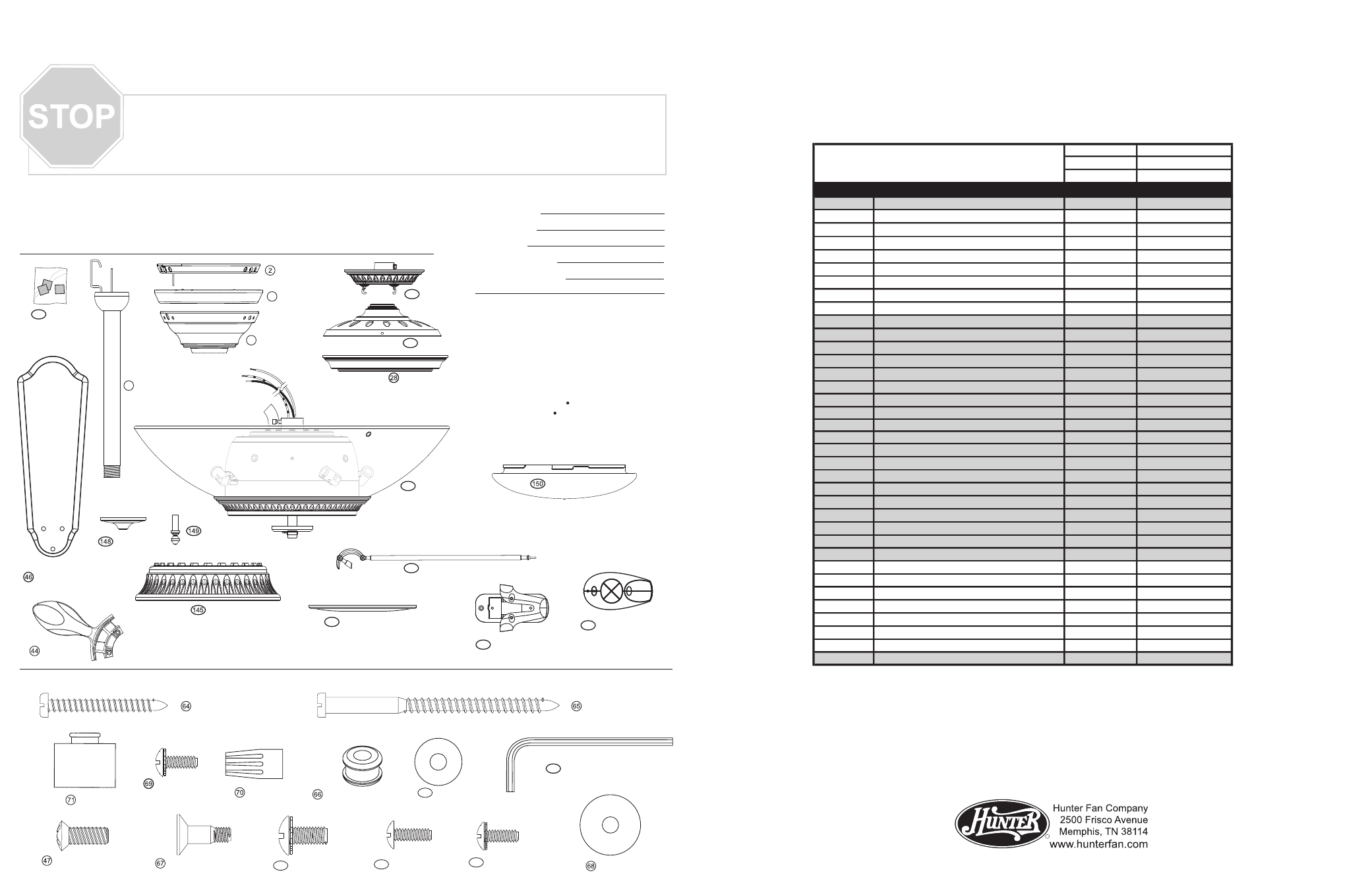

PARTS GUIDE

PARTS GUIDE

PARTS GUIDE

PARTS GUIDE

Using the Parts Guide below, check to make sure all parts are included in the box.
