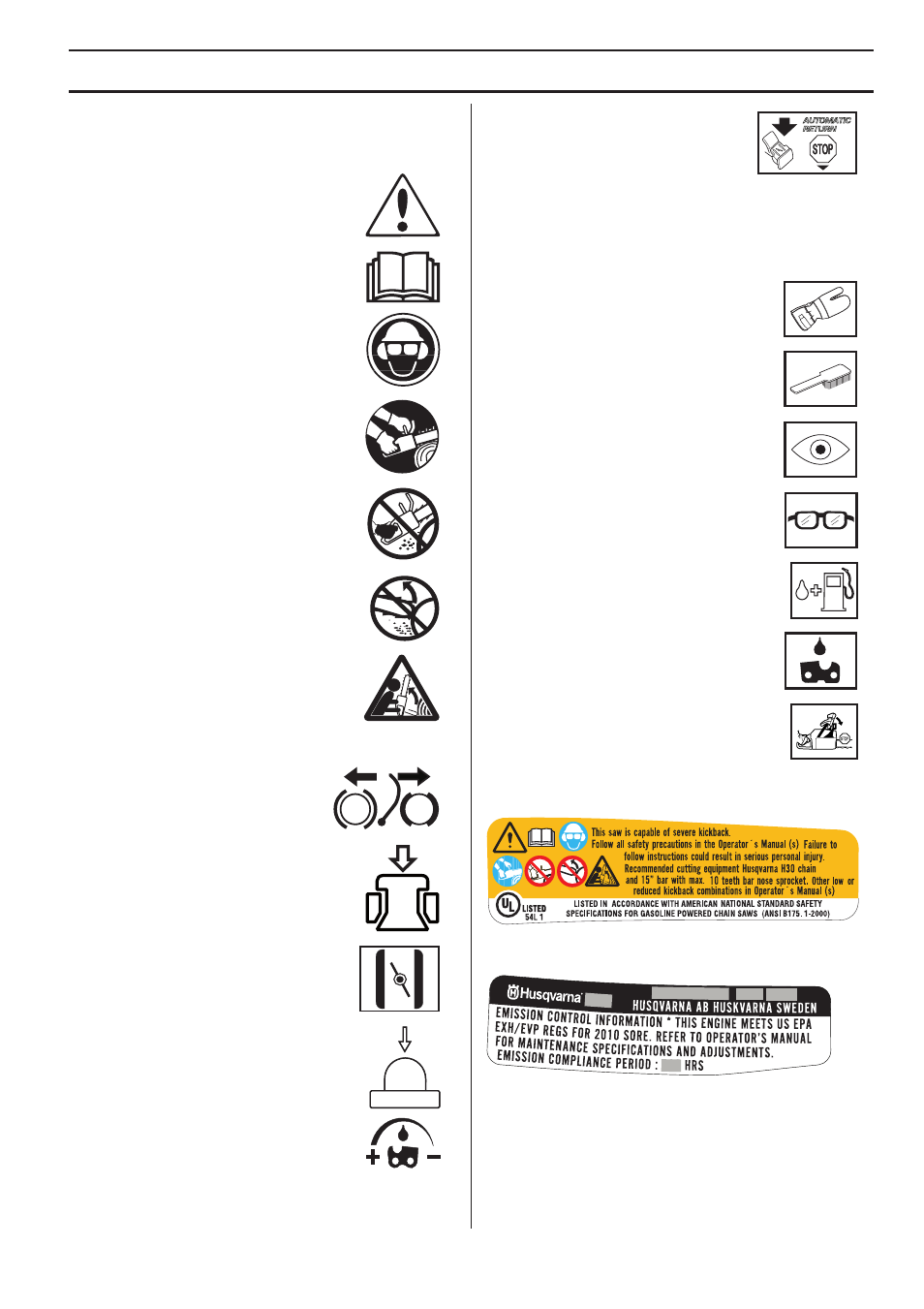

KEY T O SYMBOLS
English – 7 1153136-95 Rev .2 2010-04-08
Symbols on the mac hine and/or in
the manual:
W ARNING! Chain saws can be
dangerous! Careless or improper use
can result in serious or fatal injury to the
operator or others.
Please read the operator’s manual
carefully and make sure you understand
the instructions before using the machine.
Always wear:
•
Approved protective helmet
• Approved hearing protection
• Protective goggles or a visor
Both of the operator
′
s hands must be
used to operate the chain saw.
Never operate a chain saw holding it with
one hand only.
Contact of the guide bar tip with any
object must be avoided.
WARNING! Kickback may occur when
the nose or tip of the guide bar touches
an object, and cause a lightning fast
reverse reaction, kicking the guide bar
up and towards the operator. May cause
serious personal injury.
Chain brake, activated (right)
Chain brake, not activated (left)
Decompression v alve: The valve
is to reduce the pressure in the cylinder
and make starting easier. You should
always use the decompression valve
when starting the machine.
Ignition; choke: Set the choke control
in the choke position. This should
automatically set the stop switch to the
start position.
Air purge
Adjustment of the oil pump
Other symbols/decals on the mac hine refer to special
certification requirements for certain markets.
Switch off the engine bef ore carrying
out any checks or maintenance. NB!
The start/stop switch automatically
returns to run position. In order to
prevent unintentional starting, the
spark plug cap must be removed
from the spark plug when
assembling, checking and/or
performing maintenance.
Always wear approved protective gloves.
Regular cleaning is required.
Visual check.
Protective goggles or a visor must be
worn.
Refuelling.
Filling with oil and adjusting oil flow.
The chain brake must be engaged when
the chain saw is started.
You will find the following labels on your chain saw:
EP A III
The Emissions Compliance P eriod referred to on the
Emission Compliance label indicates the number of
operating hours for which the engine has been shown to
meet Federal emissions requirements.
Maintenance, replacement, or repair of the emission
control devices and system may be performed by any
nonroad engine repair establishment or individual.
