Hunter Fan 28523 User Manual
Parts guide, Parts list, Fan parts
Motor / Housing Assembly
Blade Set
Blade Iron Set
Fan Parts
(Not Drawn to Scale)
Hardware
(Drawn to Scale)
Balancing Kit
75
Low Profile Washer
27
Screw, Blade Iron
Armature
Blade Grommet
Screw, Blade Assembly
101 Canopy Screw
Screw, Wood
Screw, Wood
Wire Nut
Flat Washer
7
Hanger Ball
/ Downrod
Assembly
49 Light Kit Assembly
Pull Chain
78
Globe / Shade
150
78a
Canopy
Trim Ring
Canopy
3
4
239 Hanger Bracket
Assembly
Retaining Ring
59
No-Light Assembly
271
Threaded Rod
208
Locking Screw
100
Allen Wrench
79
Spacer
198
Bottom Cap
148
Finial
149
Before installing your fan, record the following information for your records and warranty assistance.
Missing / Broken Parts:
Call 1-888-830-1326
Fan does not work:
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Hunter Products Trouble Shooting
Dealer Location Service Center Locator
Call 1-800-448-6837
www.hunterfan.com
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Model Name
Catalog No.
Serial No.
Date Purchased
Where Purchased
PARTS GUIDE
PARTS GUIDE
PARTS GUIDE
PARTS GUIDE

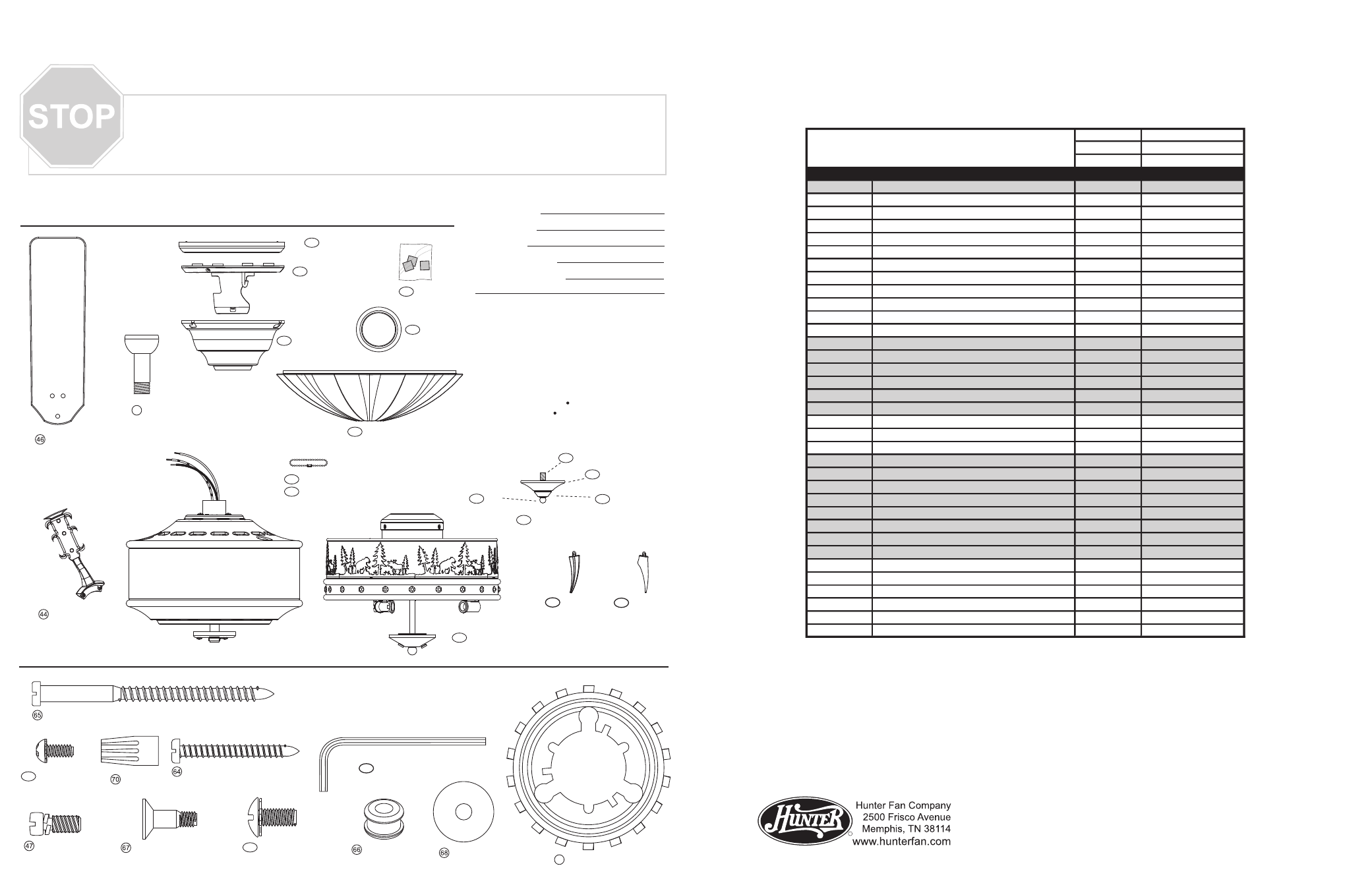

Using the Parts Guide below, check to make sure all parts are included in the box.
R
98000-01-519
11/16/05
Pull Chain
Pendant
76
Pull Chain
Pendant
76a
Model #
28523
Asm. Dwg. #
96489-01
Finish
Brittany Bronze
Item #
Item Name
Qnty
Part #
Hanging System Kit
1
95737-66-000
3
Canopy
1
-----------
4
Canopy Trim Ring
1
-----------
8
Set Screw (Not Shown)
1
-----------
27
Low Profile Washer
1
-----------
59
Retaining Ring
1
-----------
64
Screw, Wood
2
-----------
65
Screw, Wood
2
-----------
68
Flat Washer
4
-----------
100
Locking Screw
3
-----------
101
Canopy Screw
3
-----------
239
Hanger Bracket Assembly
1
-----------
7
Hanger Ball / Downrod Assembly
1
86122-03-437
44
Blade Iron Set
1
96004-05-000
46
Blade Set
1
75539-55-000
47
Screw, Blade Iron Armature
11
63755-05-000
49
Light Kit Assembly
1
86918-01-000
Hardware Kit
1
96489-00-850
66
Blade Grommet
16
05989-01-000
67
Screw, Blade Assembly
16
63730-03-247
70
Wire Nut
4
05172-01-000
75
Balancing Kit
1
07570-01-000
76
Pull Chain Pendant
1
77800-01-514
76a
Pull Chain Pendant
1
77801-01-514
78
Pull Chain
1
63756-15-000
78a
Pull Chain
1
63756-16-000
79
Allen Wrench
1
64801-01-000
150
Globe/Shade
1
96014-01-000
270
No-Light Assembly
1
148
Bottom Cap
1
65390-01-437
149
Finial
1
64304-01-437
158
Lockwasher (Not Shown)
2
06505-02-232
162
Threaded Nut (Not Shown)
2
03398-03-232
198
Spacer
1
77806-02-437
208
Threaded Rod
1
03397-25-232
Parts List
