ASSEMBLY INSTRUCTIONS

CYLINDRICAL

PLUG

CYLINDRICAL

CONNECTOR

LOCK LEVER (13)

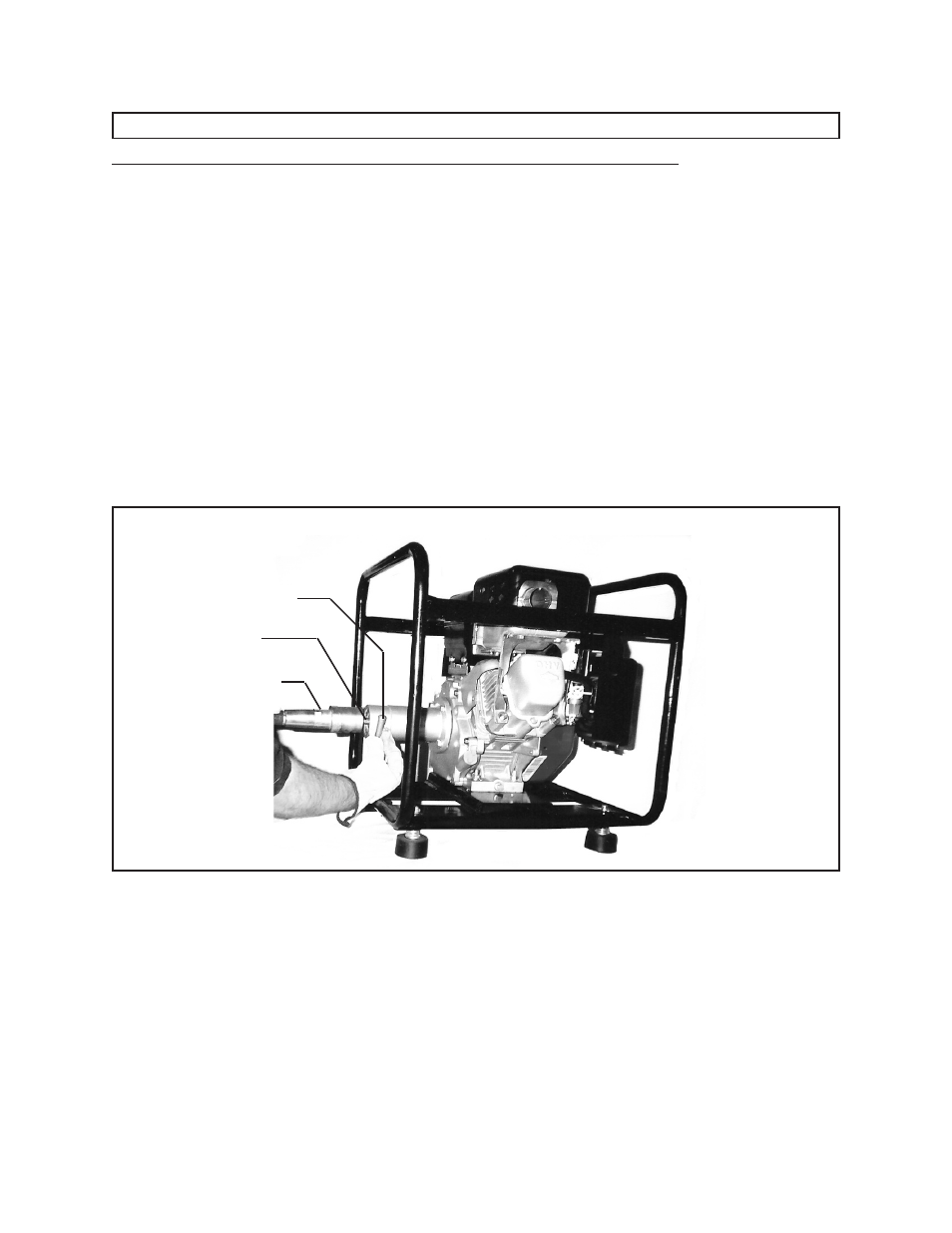

To Attach The Head And Flexible Hose To The Concrete Vibrator:

NOTE: This Concrete Vibrator is designed for use only with the model 94345
Concrete Vibrator Head and Hose (available from Harbor Freight Tools). Do
not attempt to use the Concrete Vibrator with any other type of Head and Hose.

Turn the Lock Lever (13) up all the way.

(See Figure A.)

Insert the Cylindrical Plug and Cylindrical Connector of the Head and Hose into
the Coupler (2) of the Concrete Vibrator. Make sure the grooves on the
Cylindrical Plug align with the grooves inside the Coupler. Also, make sure to
align the notches in the Cylindrical Connector with the Lock Lever (13).

(See Figure A.)
