Page 8

6

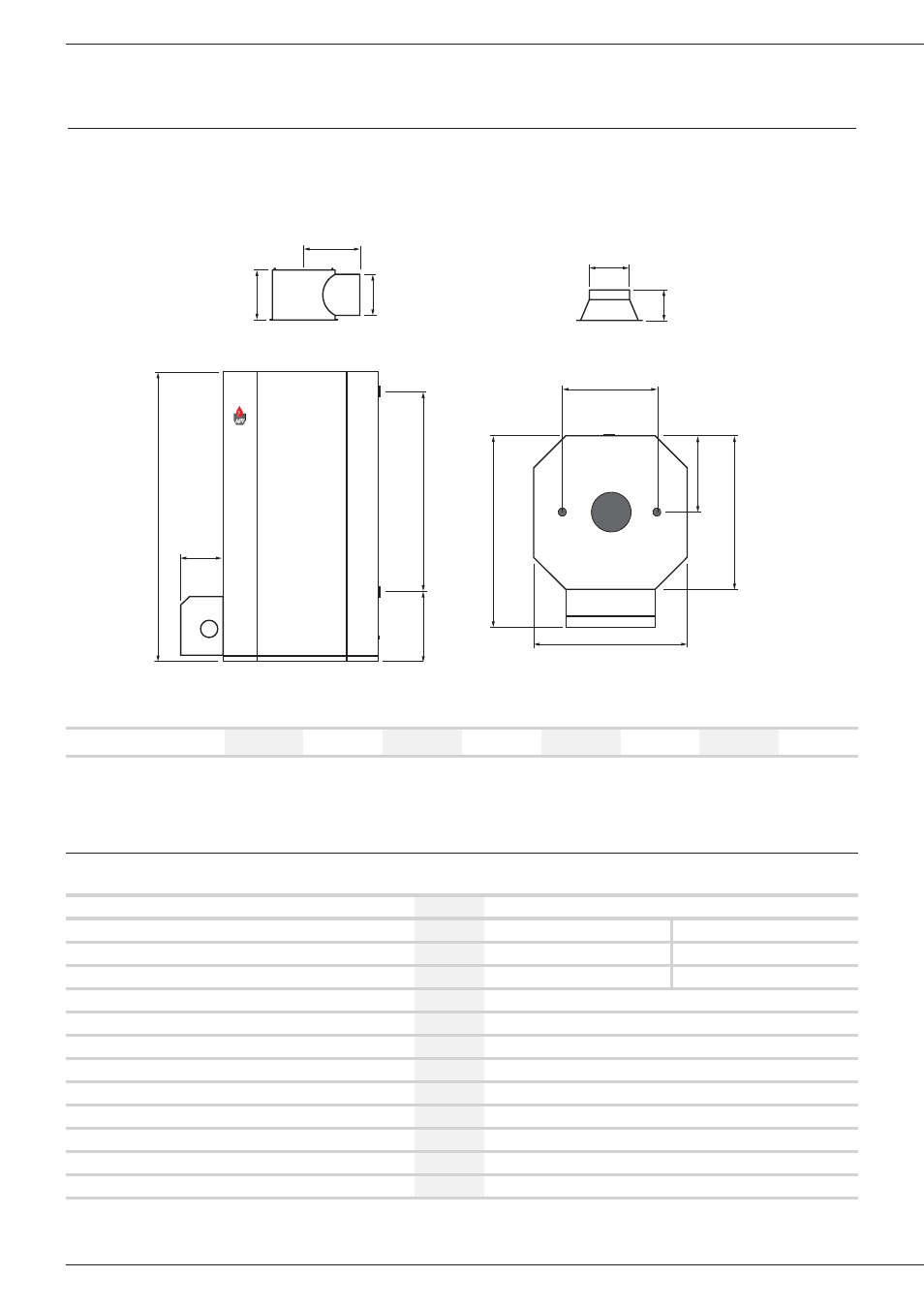

EFFECTIVE DIMENSIONS
The appliances delivered are factory-tested. Upon receipt, remove the packing and check that there is no damage to the appliances. Refer to the
dimensions and weights listed below for transport purposes.
The jacket is fitted by the installer on site
(see the assembly instructions in the wooden protective case)
.
TECHNICAL SPECIFICATION
A
G
H
E
C
D
F
506
B
Type
HM 201
Fuel
Natural gas/propane
Heating
Hot water
Maximum Input
kW
60 - 220
60 - 240
Maximum Output
kW
56.4 - 200.2
56.4 - 218.4
Maintenance loss at 60°C as rated value
%
0.3
Total capacity
L
641
Primary circuit capacity
L
241
Heating connection
Ø
2”
Hot water connection
Ø
2”
Chimney connection
Ø mm
250
Hot water tank heat exchange surface
m
2
5.30
Weight empty
Kg
550
Pressure drop primary circuit
mbar
240
GENERAL CHARACTERISTICS
A mm
B mm
C mm
D mm
E mm
F mm
G mm
H mm
HeatMaster
®
201
2085
300
1020
1320
1020
600
1383
590
250
302
338
250
190
