USER GUIDE

Reset

1

Status

1

X

1

X

Mode

Step

2

X

Mode

Store

1

X

Store

1

X

Stand

by

mode

Stand by mode

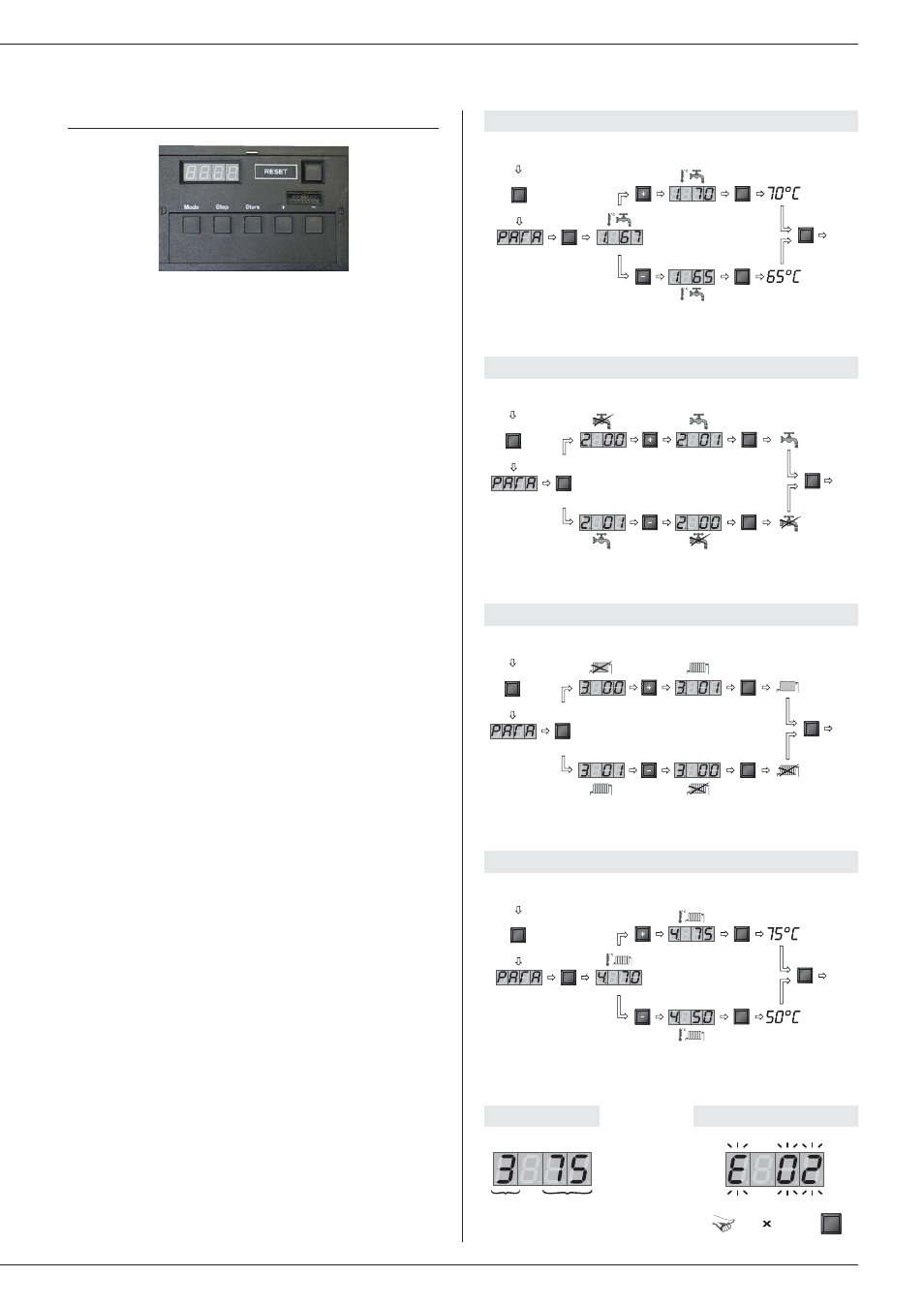

SETTING THE PARAMETERS

Setting the temperature of the hot water:

(Temperature of the hot water)

- Press “

Mode

”: “

PARA

” comes up on the screen.

- Press “

Step

”: the first digit is 1 and the last two digits indicate the

current temperature setting for the hot water.

- To change this temperature, press the “

+

” or “

-

” keys until the

temperature indicated by the last two digits is the desired
temperature.

- Press “

Store

” to save the setting.

- Press “

Mode

” twice to return to Standby mode (normal operating

mode).

Enabling and disabling hot water mode:

(hot water)

- Press “

Mode

”: “

PARA

” comes up on the screen.

- Press “

Step

” twice: the first digit is 2 and the last two digits

indicate the current setting:

00

= disabled;

01

= enabled.

- To change this parameter, press the “

+

” or “

-

” keys until you reach

the desired value:

00

= disabled;

01

= enabled.

- Press “

Store

” to save the setting.

- Press “

Mode

” twice to return to Standby mode (normal operating

mode).

Enabling and disabling central heating mode:

(heating)

- Press “

Mode

”: “

PARA

” comes up on the screen.

- Press “

Step

” three times: the first digit is 3 and the last two digits

indicate the current setting:

00

= disabled;

01

= enabled.

- To change this parameter, press the “

+

” or “

-

” keys until you reach

the desired value:

00

= disabled;

01

= enabled.

- Press “

Store

” to save the setting.

- Press “

Mode

” twice to return to Standby mode (normal operating

mode).

Setting the temperature of the central heating:

(the maximum temperature for the heating circuit)

- Press “

Mode

”: “

PARA

” comes up on the screen.

- Press “

Step

” four times: the first digit is 4 and the last two digits

indicate the current temperature setting for the central heating.

- To change this temperature, press the “

+

” or “

-

” keys until the

temperature indicated by the last two digits is the desired
temperature.

- Press “

Store

” to save the setting.

- Press “

Mode

” twice to return to Standby mode (normal operating

mode).

Fault:

The temperature setting of the appliance and the safety functions of its
parts are constantly monitored by a microprocessor controller (MCBA).
In the event of a fault, this MCBA disables the appliance and displays
an error code: the screen flashes and the first character is an “

E

followed by the fault code,

(see the list of faults on page 16).

Reset the appliance:

- Press “

Reset

” on the screen.

- If the fault code appears again, contact your installer.
