Hunter Fan 20415 User Manual
Parts guide, Hardware, Fan parts

Hardware
(Drawn to Scale)
Fan Parts
(Not Drawn to Scale)

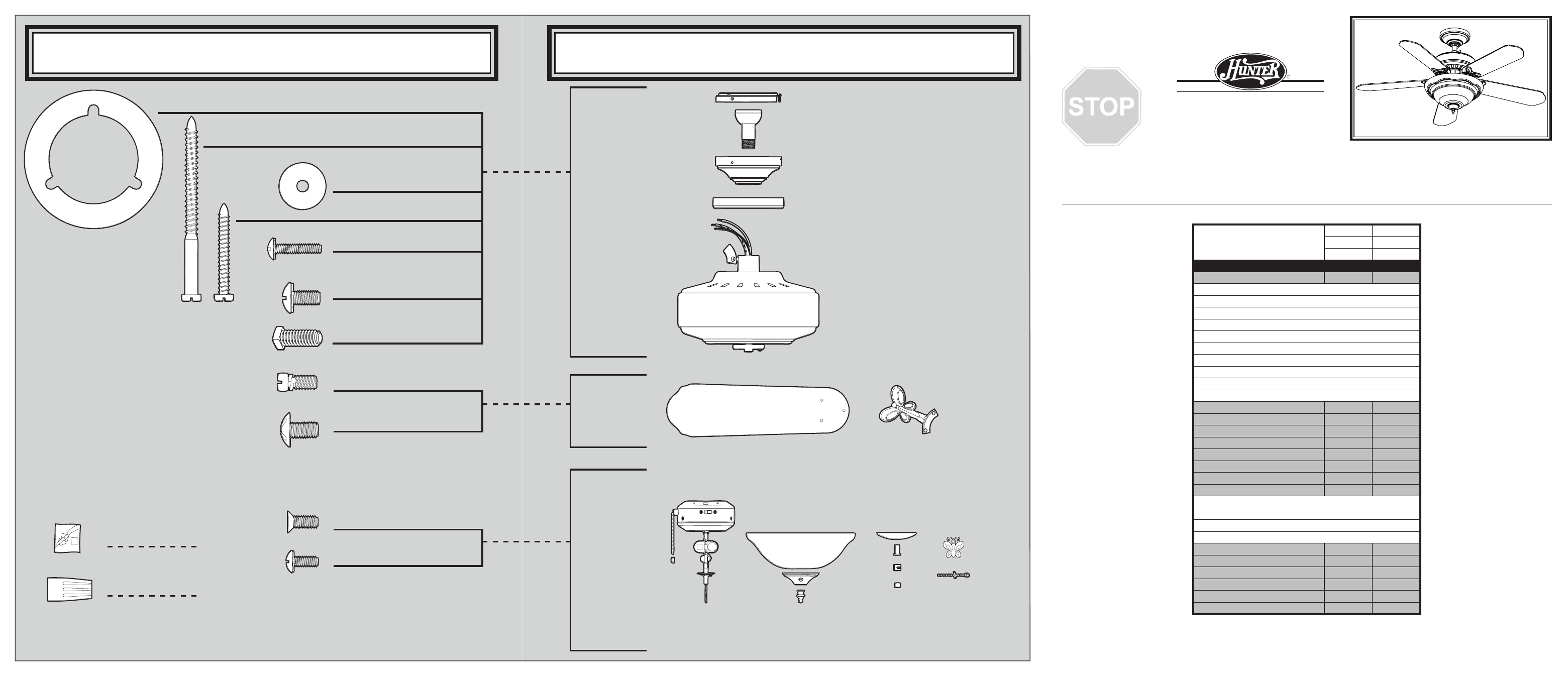

PARTS GUIDE
PARTS GUIDE
Using this Parts Guide, make sure all
parts are included in the box.
If parts are missing, DO NOT RETURN
THIS ITEM TO THE STORE, call 888-830-1326 for assistance.
THIS PARTS GUIDE IS FOR REFERENCE ONLY.
REFER TO THE INSTALLATION MANUAL FOR FULL ASSEMBLY INSTRUCTIONS.
R
SINCE
1886
Hunter Fan Company • 2500 Frisco Avenue • Memphis, TN 38114 • www.hunterfan.com • 98000-01-742 07-23-2008 •
©
2008
Parts List
Model #
20415
Asm. Dwg. #
97501
Finish
White/Pink
Item Name
Qnty
Part #
Hanger Bracket Assembly
96759-03
Ceiling Plate
Canopy
Canopy Trim Ring
Hanger Ball / Downrod Assembly
Setscrew
Low Profile Washer
Canopy Screw
Wood Screw
Flat Washer
Locking Screw
Switch/Housing Assembly
1
93574-03
Switch Housing Cover
1
73853-01
Switch Housing Plug Button
1
73854-01
Blade Iron Set
1
96050-05
Blade Set
1
75885-90
Screw, Blade Iron Armature
11
63755-05
Light Kit Assembly
1
96942-02
Hardware Kit
97501-00-860
Blade Assembly Screw
Screw, Machine, 6-32
Wire Connector
Screw, Switch Housing Assembly
Balancing Kit
1
07570-01
Pull Chain
2
63756-14
Pendant
2
77450-01
Cap, Finial
1
64349-02
Finial
1
64771-01
Globe/Shade
1
88063-01
Hanger
Bracket
Assembly
Blade
Assembly
Switch
Housing
Assembly
Screw, Switch
Housing Assembly
Screw,
Machine, 6-32
Locking Screw
Set Screw
Screw, Blade
Iron Armature
Canopy Screw
Flat Washer
Screw, Blade
Assembly
3” Wood Screw
Low Profile
Washer
Balancing
Kit
Wire
Connector
1.5” Wood Screw
x 1
x 2
x 4
x 2
x 3
x 3
x 1
x 11
x 16
x 3
x 3
x 1
x 4
