Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL

68-0282—07

4

INSTALLATION

A fresh air duct and damper must be installed between the

outdoors and the return side of the HVAC equipment. The

W8150 control will be mounted near the HVAC system and

wired between the thermostat and the fan control.

You will need…

W8150 Fresh Air Ventilation Control.

damper.

transformer.

insulated ductwork.

outdoor weather hood.

starting collar.

access to 120 Vac power.

airflow measuring tool.

TIPS:

• To meet ASHRAE 62.2-2010, system must have at least a

MERV 6 filter installed.

• In cold climates, balanced ventilation is recommended. An

exhaust fan or heat recovery ventilator can be used.

• Humid climates may require additional dehumidification

equipment.

Choosing a location…

When choosing locations for equipment, duct connections,

and fresh air intake, be sure to consult local code

requirements.

16

REMOTE

Remote switch (two

terminals)

24 Vac powered contacts allow a remote switch closure to call for

ventilation.

17

AUX

Auxiliary (two terminals)

24 Vac dry contacts allow W8150 to control an auxiliary device, such as

exhaust fan or HRV/ERV, with a call for ventilation.

18

DAMPER

Damper (two terminals)

24 Vac powered contacts control fresh air damper.

19

XFMR C

24 Vac ventilation control

common

Supplies power to W8150 and damper from transformer provided.

20

XFMR R

24 Vac ventilation control

power

Supplies power to W8150 and damper from transformer provided.

No.

Name

Description

Function

Device

Number

Component Location

1

Fresh air intake Install away from known sources

of pollutants such as auto

exhaust, dryer vent exhaust or

chimney smoke.

2

Fresh air duct

Install between weather hood and

upstream of equipment filter and

downstream of any duct-mounted

sensor.

3

Damper

Install damper in fresh air duct,

where convenient. Optionally,

install heat recovery ventilator.

4

Control

Locate the control for convenient

access and for easy wire routing.

5

Transformer

Locate where convenient for line

voltage connection.

6

Filter

Locate filter downstream of fresh

air intake.

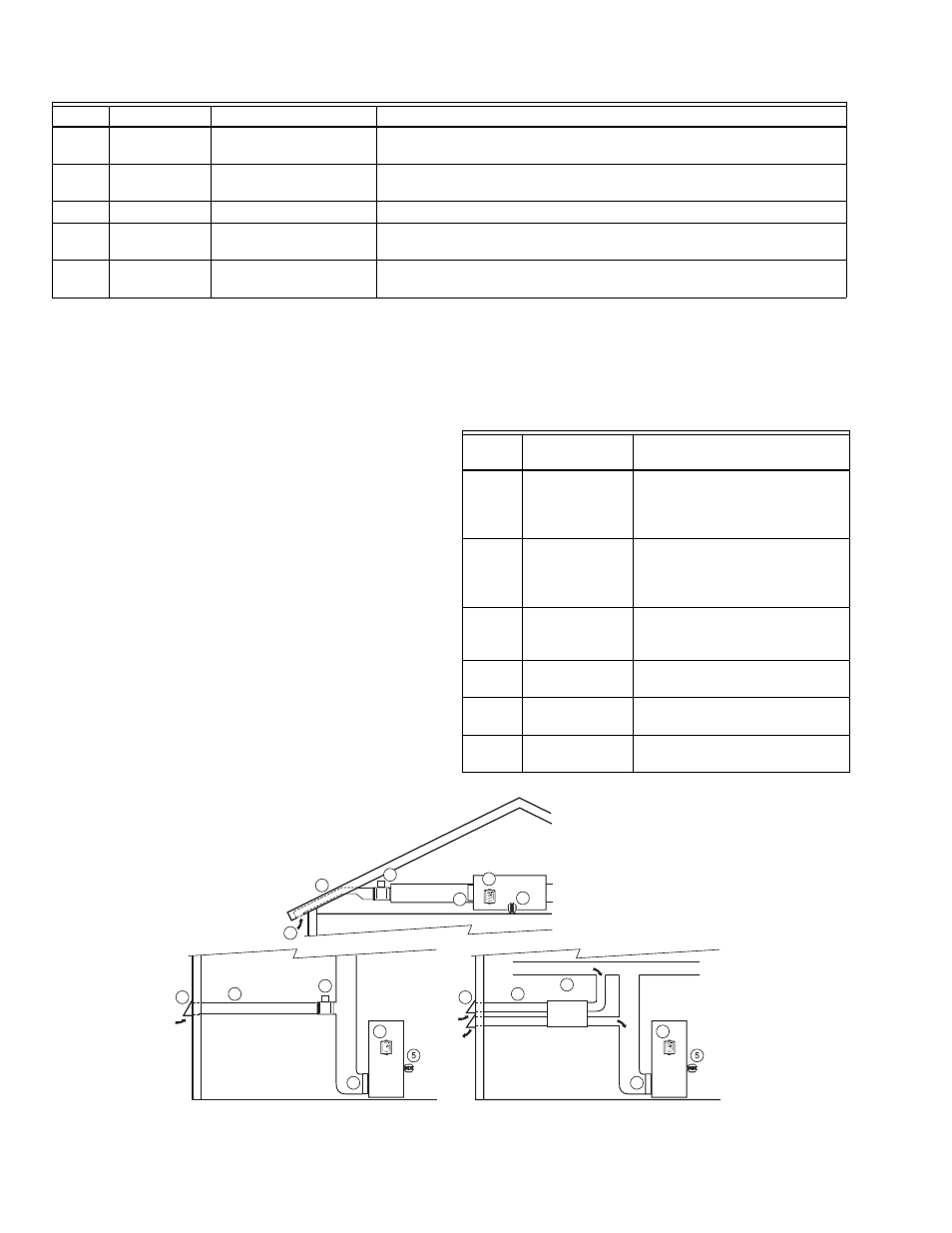

M19993

1

2

1

3

TYPICAL ATTIC

INSTALLATION

TYPICAL BASEMENT

INSTALLATION

TYPICAL HRV/ERV

INSTALLATION

3

2

HRV/ERV

6

6

6

4

4

5

1

3

2

Ventilation Control

Ventilation Contro l

Auto

Continuous

(Remote Only)

4
