Y8150 FRESH AIR VENTILATION SYSTEM, W8150 FRESH AIR VENTILATION CONTROL
11 68-0282—07

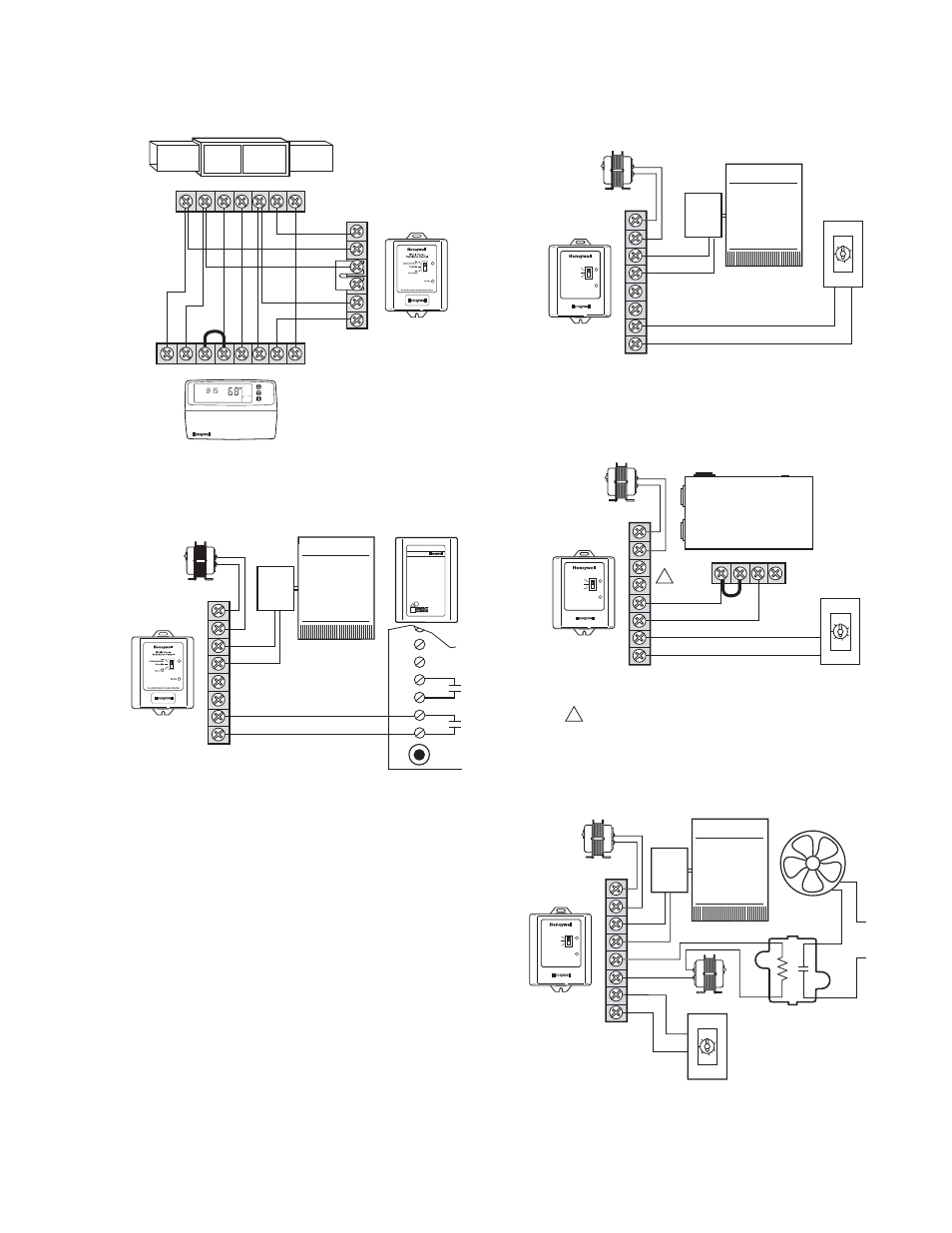

Fig. 5. Wiring heat pump with emergency heat.
Fig. 6. Wiring with a PC8900.
Fig. 7. Using a remote switch or timer.
Fig. 8. Wiring to an HRV/ERV.
Fig. 9. Wiring an exhaust fan.
Wake Room
System
Fan
Heat
Auto
AM
DST Tue
Y C R W2 E G O
Y 1 W 1 C R W 2 E G O/B
M19998A
G F
R C
C C
C H
W
G T
HVAC
W8150A
M19999
W8900
REMOTE
AUX
DAMPER
C
R
XFMR
RH
RC
HUM
HUM
VNT
VNT
®
AT120
W8150A
EARD-6
NOTE:
CONFIGURE PC8900 SO ALL VENT PROGRAM
SETTINGS ARE OFF; THE VENT BUTTON ON THE
PC8900 THEN SERVES AS A REMOTE AND THE W8150
CONTROLS BACKGROUND VENTILATION.
Ventilation Control
Ventilation Control
Service
Auto
Continuous
Off (Remote Only)
M22000
EARD-6
FAN TIMER
REMOTE
AUX
DAMPER
C
R
XFMR
AT120
W8150A
Ventilation Control
Ventilation Control
Service
Auto
Continuous
Off (Remote Only)
M22001
HR150/ER150
EARD DAMPER NOT USED WITH HRV/ERV.
REMOTE
AUX
DAMPER
C
R
XFMR
RED BLACK
AT120
W8150A
1
1
FAN TIMER
NOTES:
– BALANCE THE HRV/ERV TO 160 CFM OR LOWER.
– SET VENTILATOR SPEED KNOB TO 0.
Ventilation Control
Ventilation Control
Service
Auto
Continuous
Off (Remote Only)
M22002
EXHAUST FAN
120 VAC
AT120
AT120
R8222
W8150A
REMOTE
AUX
DAMPER
C
R
BLUE
BLUE
RED
BLACK
XFMR
EARD-6
FAN TIMER
120
VAC
L1
L2
