ASSEMBLY
12 – English 1151020-95 Rev. 2 2008-03-10

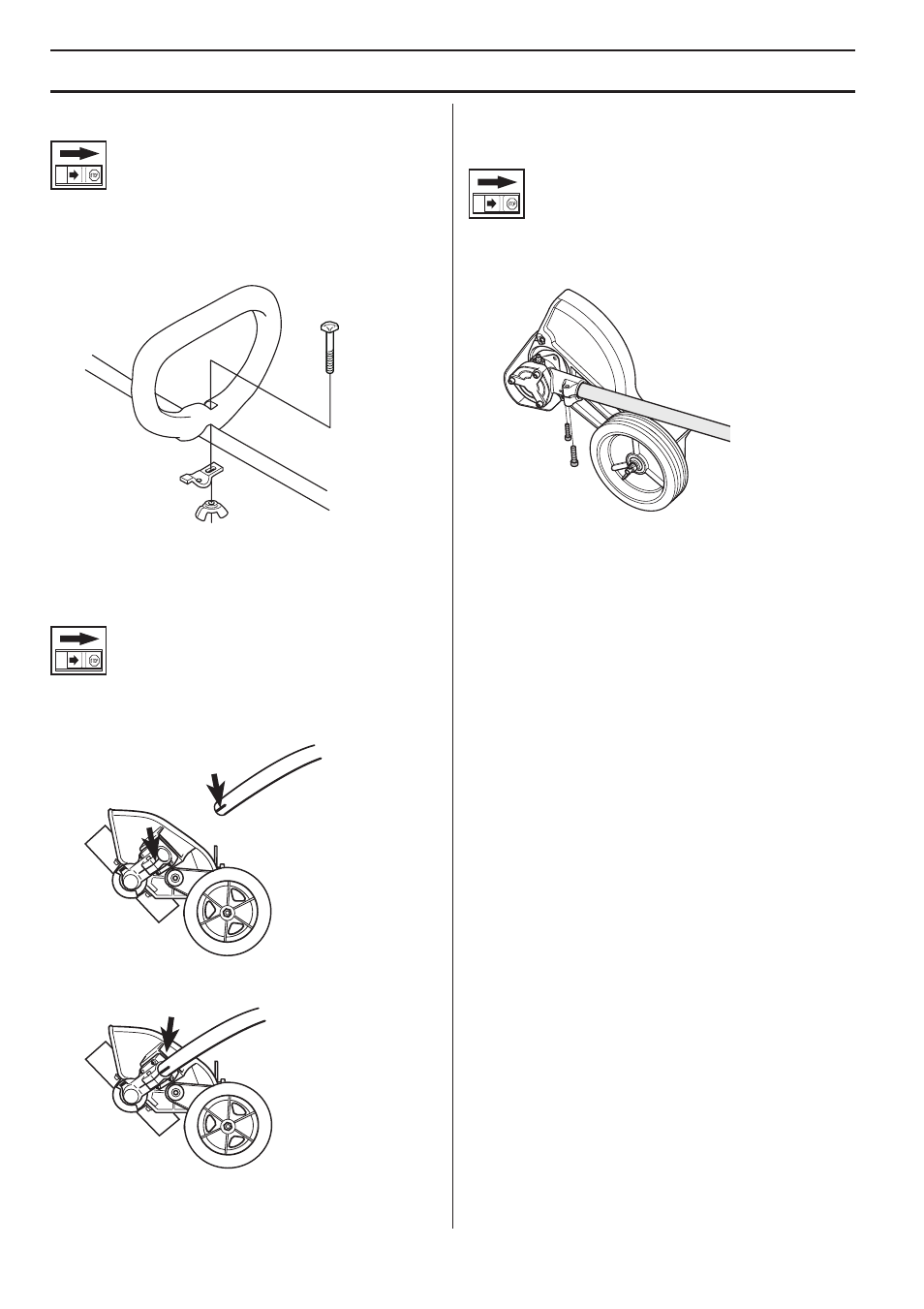

Fitting the loop handle
• Position the handle on the shaft. Note that the handle
must be mounted below the arrow on the shaft.
• Fit the bolt, securing plate and wing nut as shown in
the diagram.
• Tighten the wing nut.
Assembling the angle gear
(326Ex)
• Assemble the angle gear back on the suppporting
tube. Turn the blade so that the drive shaft engages in
the angle gear.
• Position the angle gear so that its slot is aligned with
the line on the supporting tube.
• Firmly tighten the screw.
Assembling the angle gear
(326ES)
• Assemble the angle gear back on the suppporting
tube. Turn the blade so that the drive shaft engages in
the angle gear.
• Tighten the two screws.
