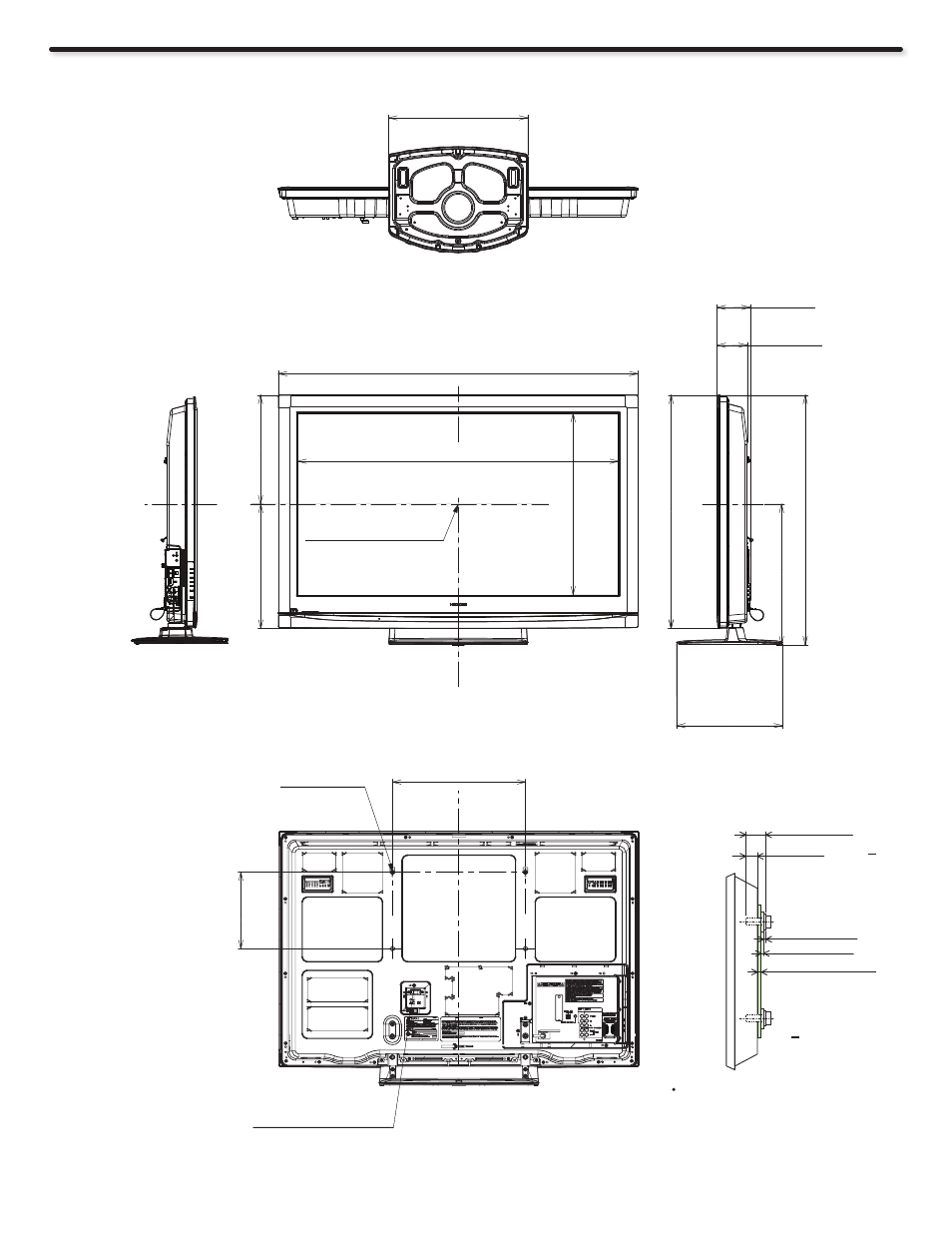

Set Dimensions
P42A202 model (Includes Table Top Stand) Weight (lbs./kg): 79.3/36
4-3/16 (106)
14-7/16 (366)
28 (71
1)
(DEPTH)
18-7/8 (480)
15-3/4 (400)
9-1/16 (230)
HOLE FOR
WALL MOUNT
(4 PLACES)
LOCATION OF THE
AC POWER CORD
12-15/16 (329)
15-1/16 (382)
CENTER OF THE SCREEN
42-11/16 (1084)
(ACTIVE AREA)
36-5/8 (930.8)
(ACTIVE
AREA)
20-5/8 (523.8)
17-5/16 (439)
30-1/4 (768)
3-15/16 (100)
Units : Inches (mm)
Rear View
Use as Reference for Wall Mount Bracket
Screw Length (A)
Insertion length (B)
Spring Washer (C)
Plane Washer (D)
Wall Mount Bracket (E)
Example :
A = B+C+D+E
A: 13~15 mm.
B: 9~11 mm.
C: 1 mm.
D: 1 mm.
E: 2 mm.
The screw type :Theread ISO M6 (Metric
type, do not use Standard type).
Side View
Wall Mount Screw specification
