47
USEFUL INFORMA
TION

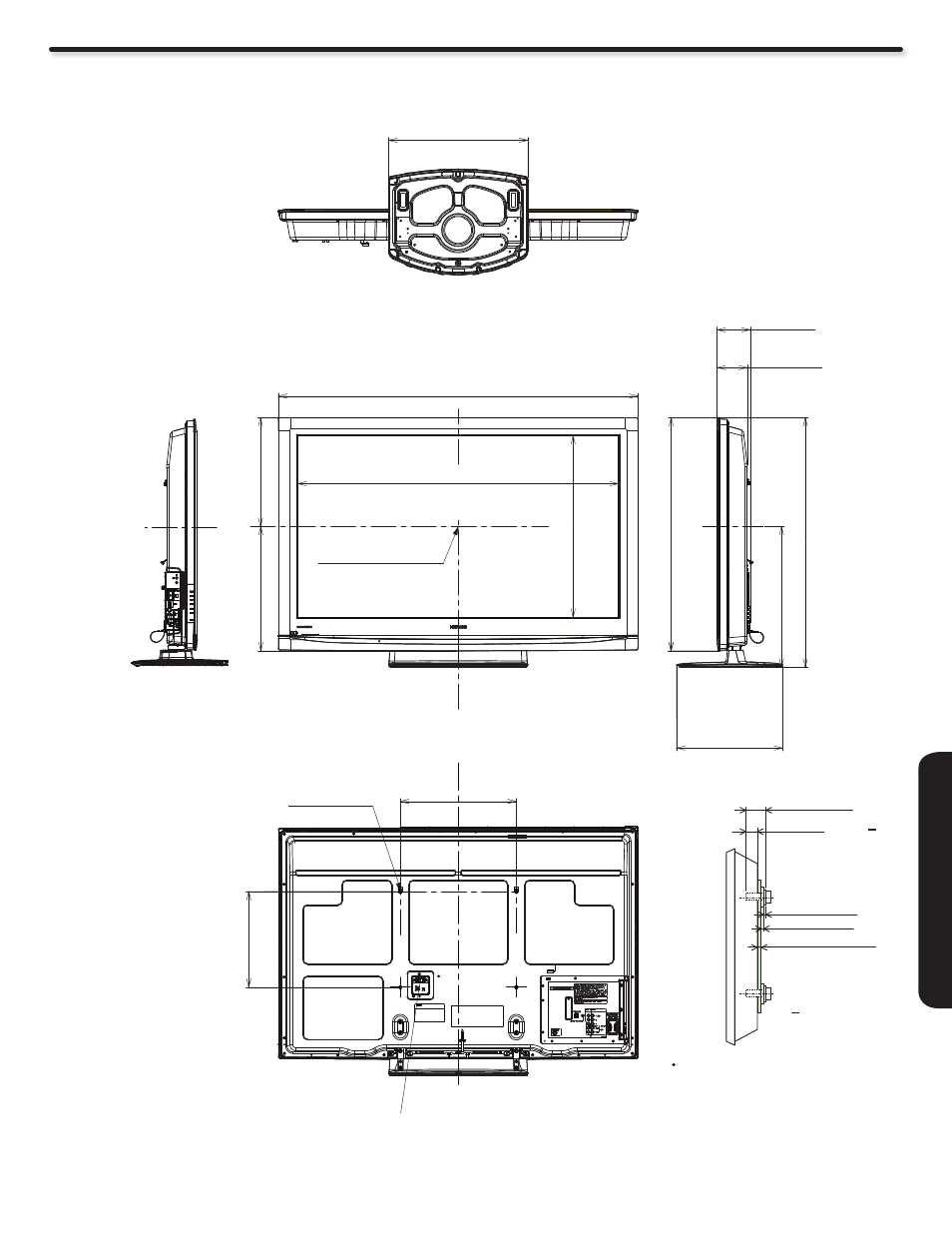

Set Dimensions
P50A402/P50A202 model (Includes Table Top Stand) Weight (lbs./kg): 96.9/44
Rear View
Use as Reference for Wall Mount Bracket
4-1/2 (114.4)
14-7/16 (366)
31-5/8 (804)
(DEPTH)
4-1/8 (104)
18-7/8 (480)
15-3/4 (400)
13 (330)
HOLE FOR
WALL MOUNT
(4 PLACES)
LOCATION OF THE
AC POWER CORD
14-25/32 (375.5)
16-27/32 (428.5)
CENTER OF THE SCREEN
48-3/16 (1240)
(ACTIVE AREA)
43-9/16 (1105.9)
(ACTIVE
AREA)
24-1
1/16 (626.4)
19-5/32 (486.5)
33-15/16 (862)
Units : Inches (mm)
Screw Length (A)
Insertion length (B)
Spring Washer (C)
Plane Washer (D)
Wall Mount Bracket (E)
Example :
A = B+C+D+E
A: 13~15 mm.
B: 9~11 mm.
C: 1 mm.
D: 1 mm.
E: 2 mm.
The screw type :Theread ISO M6 (Metric
type, do not use Standard type).
Side View
Wall Mount Screw specification
