Source Connections
Analog: Use the supplied stereo audio cable to connect the soundbar’s Source 1
(analog) input to your TV’s stereo audio output . If your TV has two sets of audio
output jacks, use the set that has a fixed (not variable) output level . This will let you
turn your TV’s speakers all the way off while the TV still supplies a constant audio
signal to the soundbar .
Digital: If your DVD player, cable tuner or satellite tuner has a coaxial digital output,
you can use a coaxial digital audio cable (not supplied) to connect it to the soundbar’s
Source 2 (digital) input .
NOTE: If your DVD player, cable tuner or satellite tuner does not have a coaxial digital
output, you can connect its analog audio output to your TV . The TV will send its audio
signal to the soundbar through the analog connection described above .

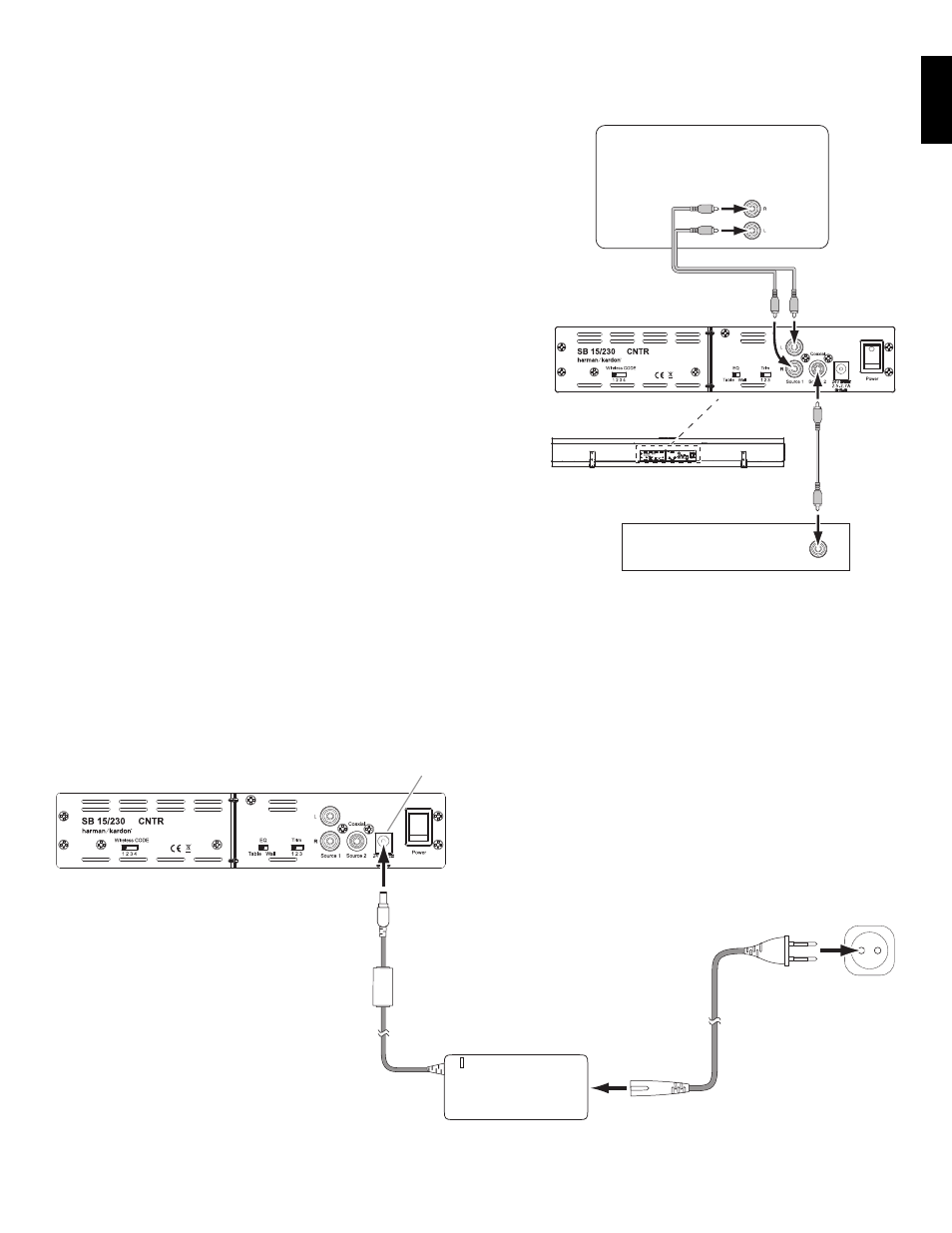

Connections
AUDIO
OUT
COAXIAL
DIGITAL
OUT
TV
SB15CNTR Soundbar
DVD Player
Coaxial
Digital Audio
Cable
(not supplied)
Stereo Audio Cable
(supplied)
Power
Connection
AC Power Cord
SB15CNTR
Rear Panel
Power Supply
Power Connections
After you have made and verified all of the source connections above:
Connect the DC power supply to the soundbar’s power connection . Then plug the 1 .
supplied AC cord into the DC power supply and into an active, unswitched AC
outlet . DO NOT plug this cord into the accessory outlets found on some audio
components .
Plug the subwoofer’s power cord into an active, unswitched AC outlet . DO NOT plug 2 .
this cord into the accessory outlets found on some audio components .
