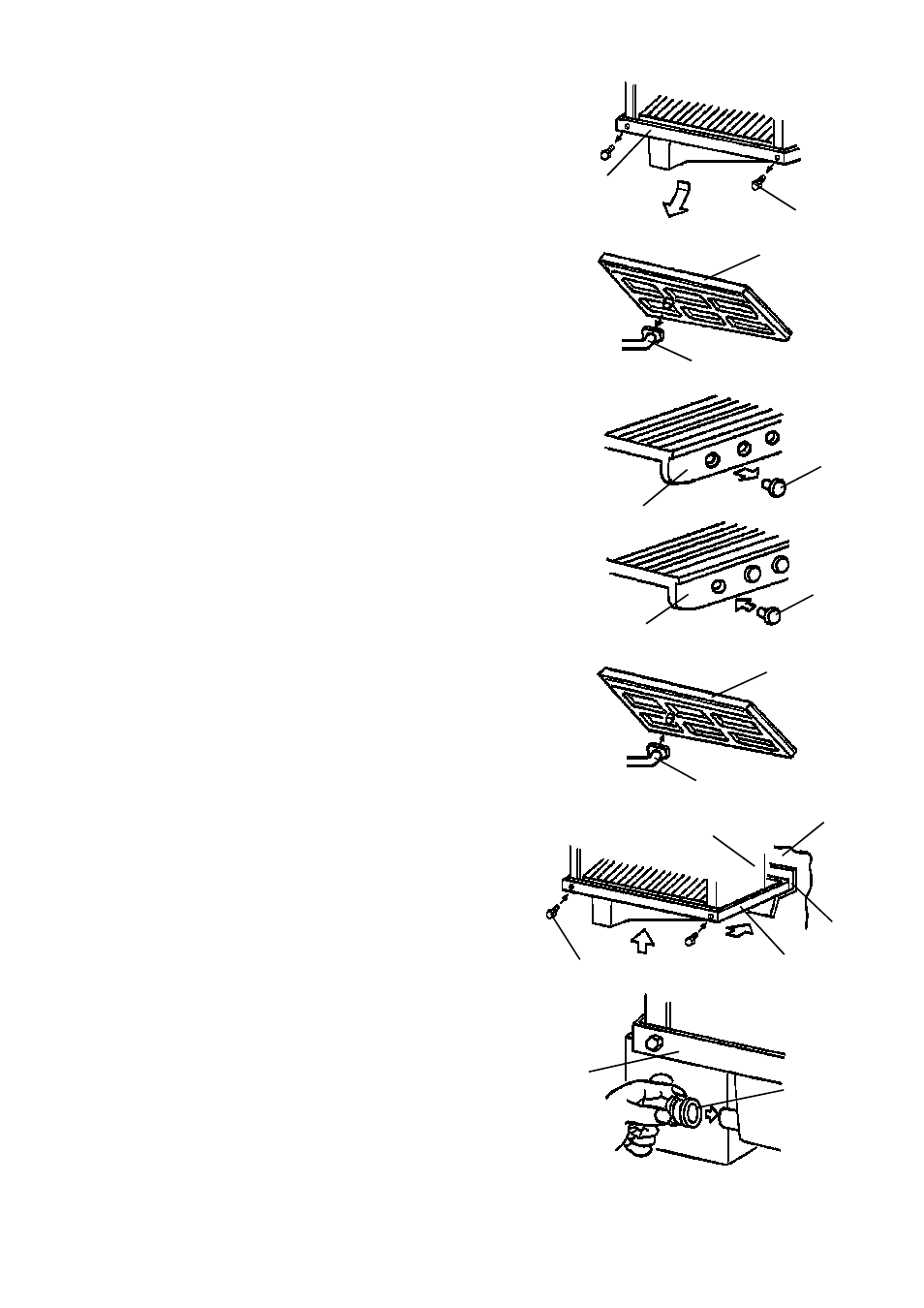

8) Remove the Thumbscrews on both sides of the
Water Tank, and pull it out toward you. Clean
and sanitize the Water Tank.
9) Pull the Discharge Tube from the Water Plate.
Remove the Water Plate by pulling it toward you.
10) Remove the Caps to clean and sanitize the
Water Plate. If the Nozzles are clogged, clean
them with a wire or a suitable brush.
11) Refit the Caps on the Cleaning Outlets to seal
them off.
12) Slide in the Water Plate along the Mechanism
Base. Refit the Discharge Tube securely on
the Spray Outlet. A loose fitting may cause a
water leak.
13) Place the rear of the Water Tank on the Water
Tank Rest at the back of the Storage Bin. Use
the Thumbscrews to secure the front of the
Water Tank to the Mechanism Base.
14) Refit the Suction Tube on to the Water Tank Inlet.
A loose fitting may cause a water leak.
