8

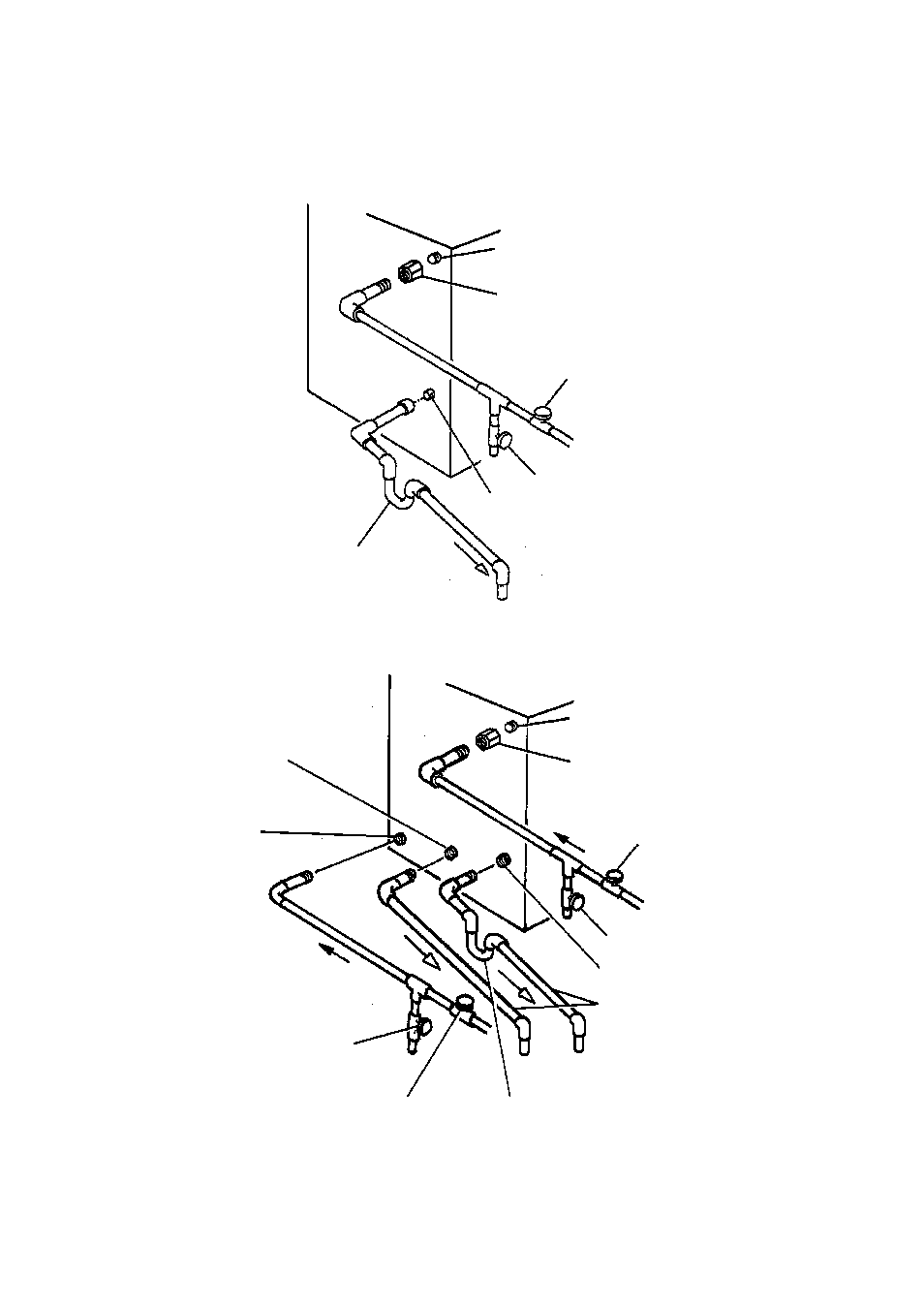

Fig. 4

Icemaker

Shut-off Valve

Drain Valve

Water Supply Inlet
3/4” BSP Threads

Bin Drain Outlet
3/4” FPT

1/4” fall per foot

To approved floor drain

Brass fitting is attached
to Water Supply Inlet.
Fitting size is a 1/2” FPT.

* A plumbing permit and services of a licensed plumber may be required in some areas.

* This icemaker should be installed in accordance with applicable national, state and local

regulations.

AM-100BAE
AM-150BAF

Icemaker

Shut-off Valve

Drain Valve

Water Supply Inlet
3/4” BSP Threads

Bin Drain Outlet 3/4” FPT

1/4” fall per foot

To approved floor drain

Brass fitting is attached
to Water Supply Inlet.
Fitting size is a 1/2” FPT.

AM-150BWF

Shut-off Valve

Drain Valve

Condenser Outlet
3/8” FPT

Water-cooled
Condenser Inlet
1/2” FPT

Trap

Trap
