Heat & Glo • 6000G, 6000G-IPI • 2103-900 Rev. O • 12/08 73
Standing Pilot Ignition
Valve Assembly
Service Parts

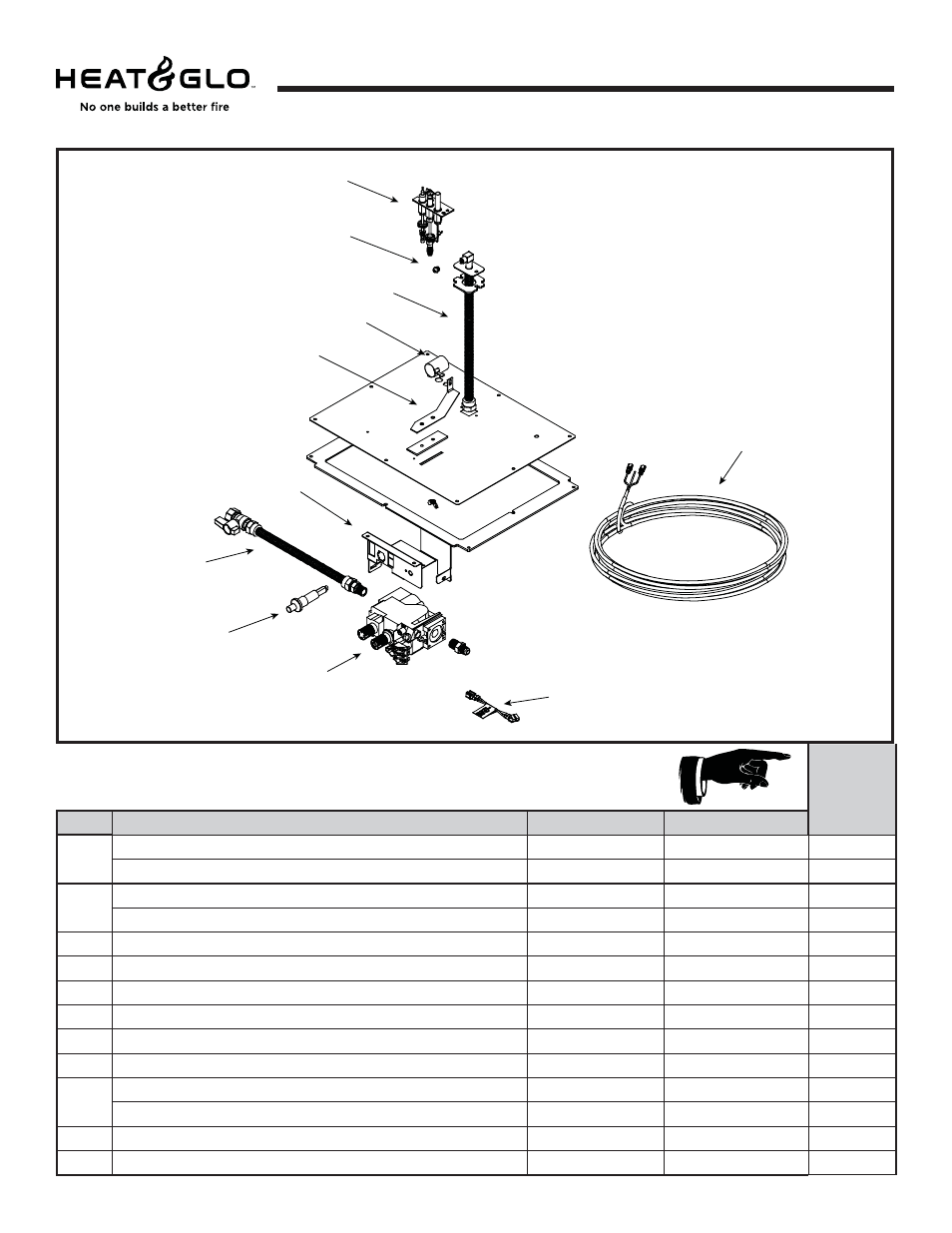

Valve Assembly Diagram/ Parts List
IMPORTANT: THIS IS DATED INFORMATION. When requesting service or replacement parts for your
appliance please provide model number and serial number. All parts listed in this manual may be ordered
from an authorized dealer.
Stocked at
Depot
ITEM DESCRIPTION COMMENTS PART NUMBER
1
Pilot Assembly, NG 2103-010 Y
Pilot Assembly, LP 2103-011 Y
2
Orifi ce NG (#37C) 582-837 Y
Orifi ce LP (#52C) 582-852 Y
3 Flex Tube Assembly 383-302A Y
4 Shutter Sleeve 2026-130 Y
5 Shutter Bracket Assembly 2026-017 Y
6 Valve Bracket 2118-104
7 Flex Ball Valve Assembly 302-320A Y
8 Piezo Ignitor 291-513 Y
9
Valve, NG 230-0710 Y
Valve, LP 230-0720 Y
10 Remote Pigtail Wire 040-557A Y
11 Wire Assembly 2045-024 Y
1
3
7
8
4
10
11
9
6
5
2
Beginning Manufacturing Date: May 2006
Ending Manufacturing Date: ______
6000G
