ASSEMBLY
English – 11

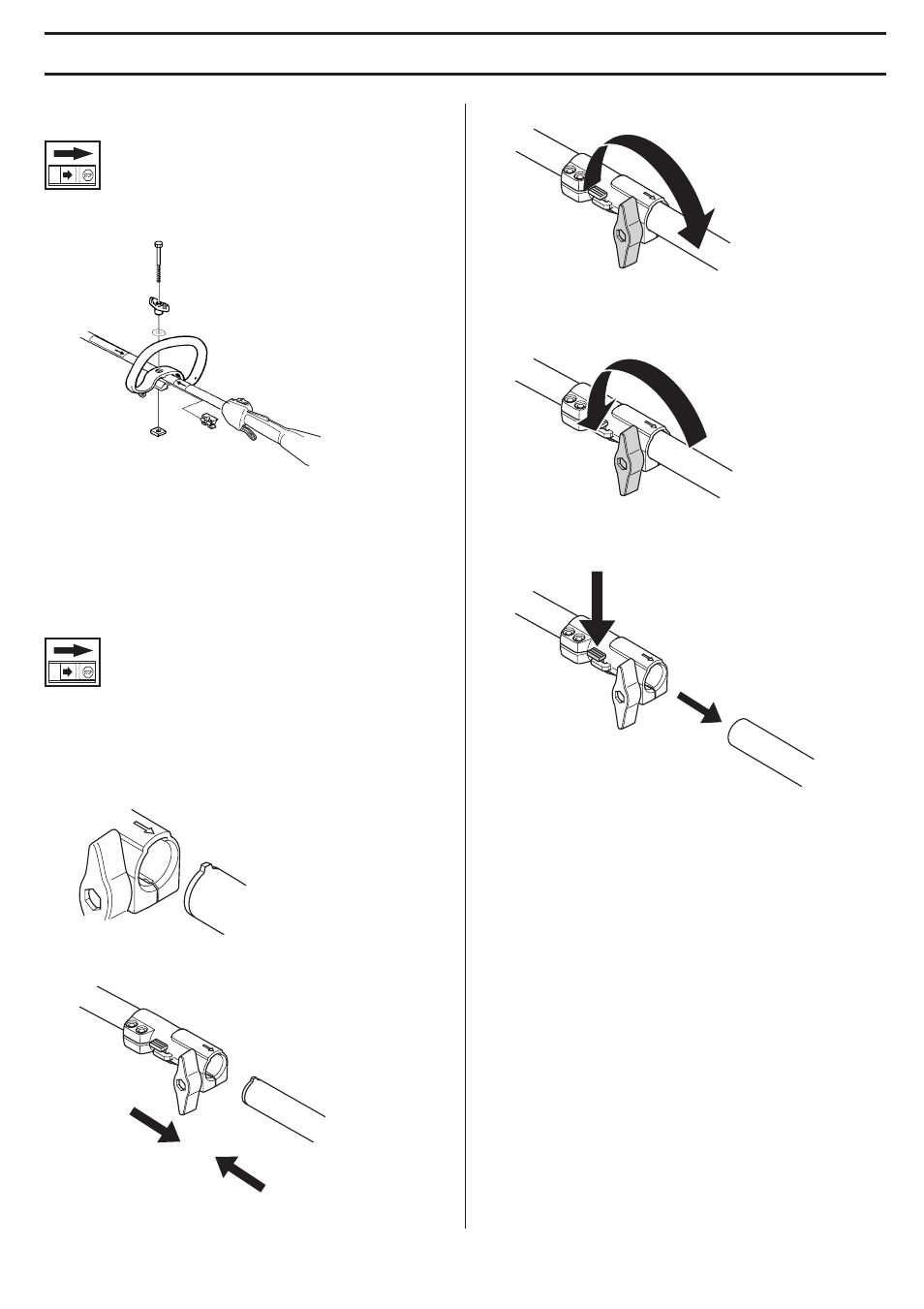

Fitting the loop handle
• Clip the loop handle onto the shaft. Note that the loop
handle must be fitted between the arrows on the shaft.
• Slide the spacer into the slot in the loop handle.
• Fit the nut, knob and screw. Do not overtighten.
• Now adjust the trimmer to give a comfortable working
position. Tighten the bolt/knob.
Assembling and dismantling the
two-piece shaft (324LDx)
Assembly:
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on the
coupling (B).
• Push the attachment into the coupling until the
attachment snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling:
• Loosen the coupling by turning the knob (at least 3
times).
• Push and hold the button (C). While securely holding the
engine end, pull the attachment straight out of the
coupling.
A
B
C
