Hunter Fan 22876 - Manual

Motor / Housing Assembly
Balancing Kit 75
Screw, Blade Iron
Armature Blade Grommet Screw, Blade Assembly
Screw, Machine, 6-32
Flat Washer
Wire Nut
Wood Screw 64 Wood Screw 65
68
70
66 67
69
47
Hanger Bracket Assembly 239
Blade Set 46
Blade Iron Set 44
Motor Cover 226
Switch /
Housing
Assembly
28
Switch Housing Cover
Switch Housing Plug Button 153
152
156 Thumb Screw
71 Mounting Isolator
Globe / Shade 150
Switch Housing,
Alternate
171
Fan Parts
(Not Drawn to Scale)
Hardware
(Drawn to Scale)
Before installing your fan, record the following information for your records and warranty assistance.
Missing / Broken Parts:
Call 1-888-830-1326
Fan does not work:
1. Reference the Trouble Shooting guide in
your Instruction Manual.
2. Call your Local Service Center.
3. Call Technical Support at 901-248-2222.
For additional information on:
Hunter Products Trouble Shooting
Dealer Location Service Center Locator
Call 1-800-448-6837
www.hunterfan.com
R
If parts are missing or damaged call 1-888-830-1326.
PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE.
Model Name
Catalog No.
Serial No.
Date Purchased
Where Purchased

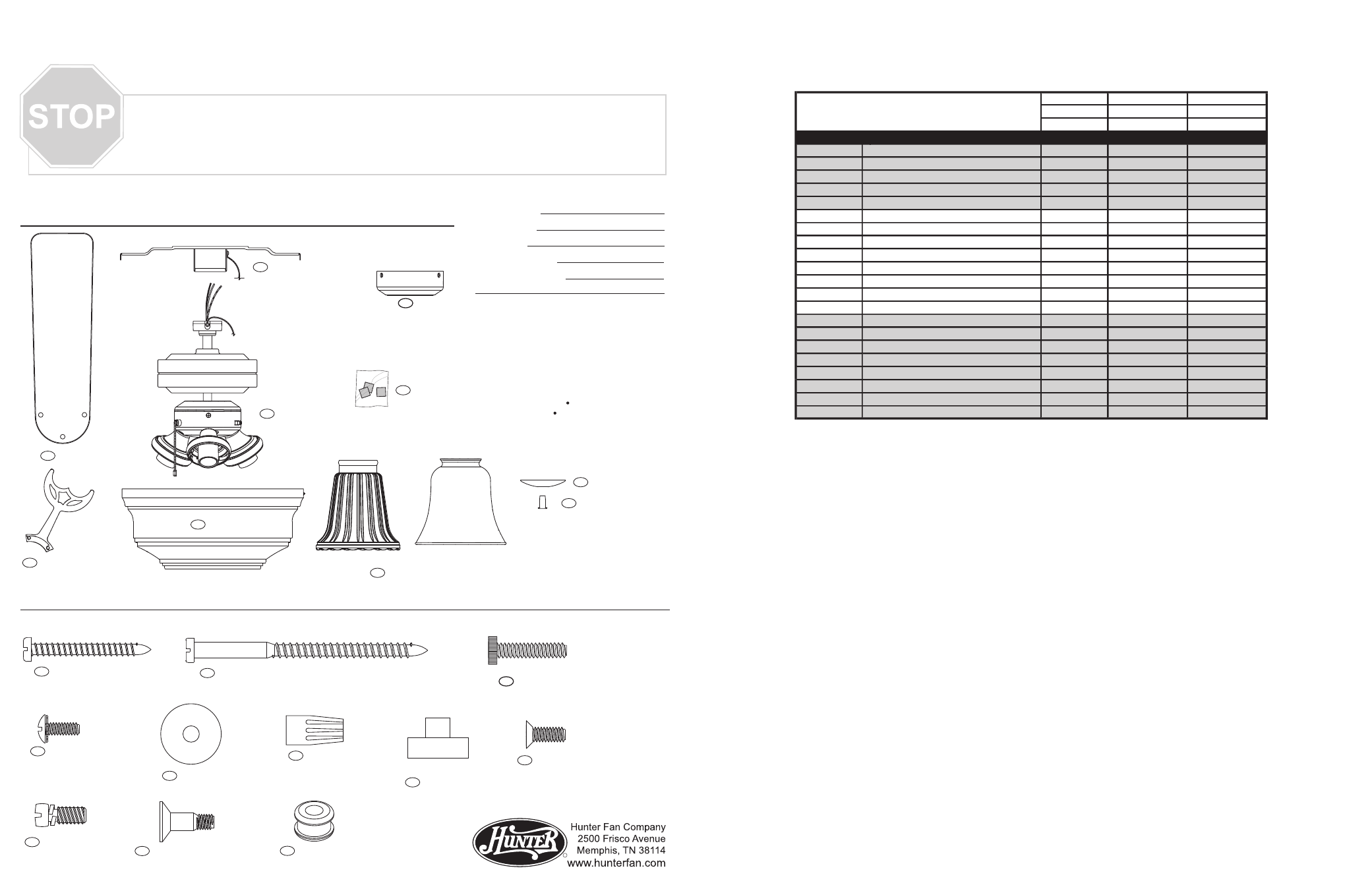

PARTS GUIDE PARTS GUIDE
PARTS GUIDE PARTS GUIDE
Using the Parts Guide below, check to make sure all parts are included in the box.
98000-01-382
1/5/05
Screw, Switch
Housing
Assembly
131
Model # 22875 22876
Asm. Dwg. # 94954-01 94954-02
Finish Antique Pewter Provencial Gold
Item # Item Name Qnty Part # Part #
28 Switch / Housing Assembly 1 93513-14-306 93513-26-298
44 Blade Iron Set 1 93724-05-306 93724-05-298
46 Blade Set 1 75006-97-000 75006-98-000
47 Screw, Blade Iron Armature 10 63755-05-095 63755-05-095
60 * Hardware Kit 1 93954-00-860 93954-00-861
64 Wood Screw 2 06512-01-000 06512-01-000
65 Wood Screw 2 03144-03-000 03144-03-000
66 Blade Grommet 15 05989-01-000 05989-01-000
67 Screw, Blade Assembly 15 63730-01-095 63730-01-095
68 Flat Washer 4 06301-01-000 06301-01-000
70 Wire Nut 4 05172-01-000 05172-01-000
71 Mounting Isolator 4 63731-01-000 63731-01-000
131 Screw, Switch Housing Assembly 3 64555-02-095 64555-02-095
75 Balancing Kit 1 07570-01-000 07570-01-000
150 Globe / Shade 3 85780-01-000 84884-07-000
156 Thumb Screw 9 03077-01-095 03077-01-095
152 Switch Housing Cover 1 73853-01-306 73853-01-298
153 Plug Button 1 73854-01-306 73854-01-298
171 Switch Housing, Alternate 1 93598-01-306 93598-01-298
226 Motor Cover 1 92511-01-306 92511-01-298
239 Hanger Bracket Assembly 1 73846-01-095 73846-01-095
Parts List
