Hearth & Home Technologies • BV4236DBI, BV4842DBI • 2209-900 Rev. N • 9/12 42

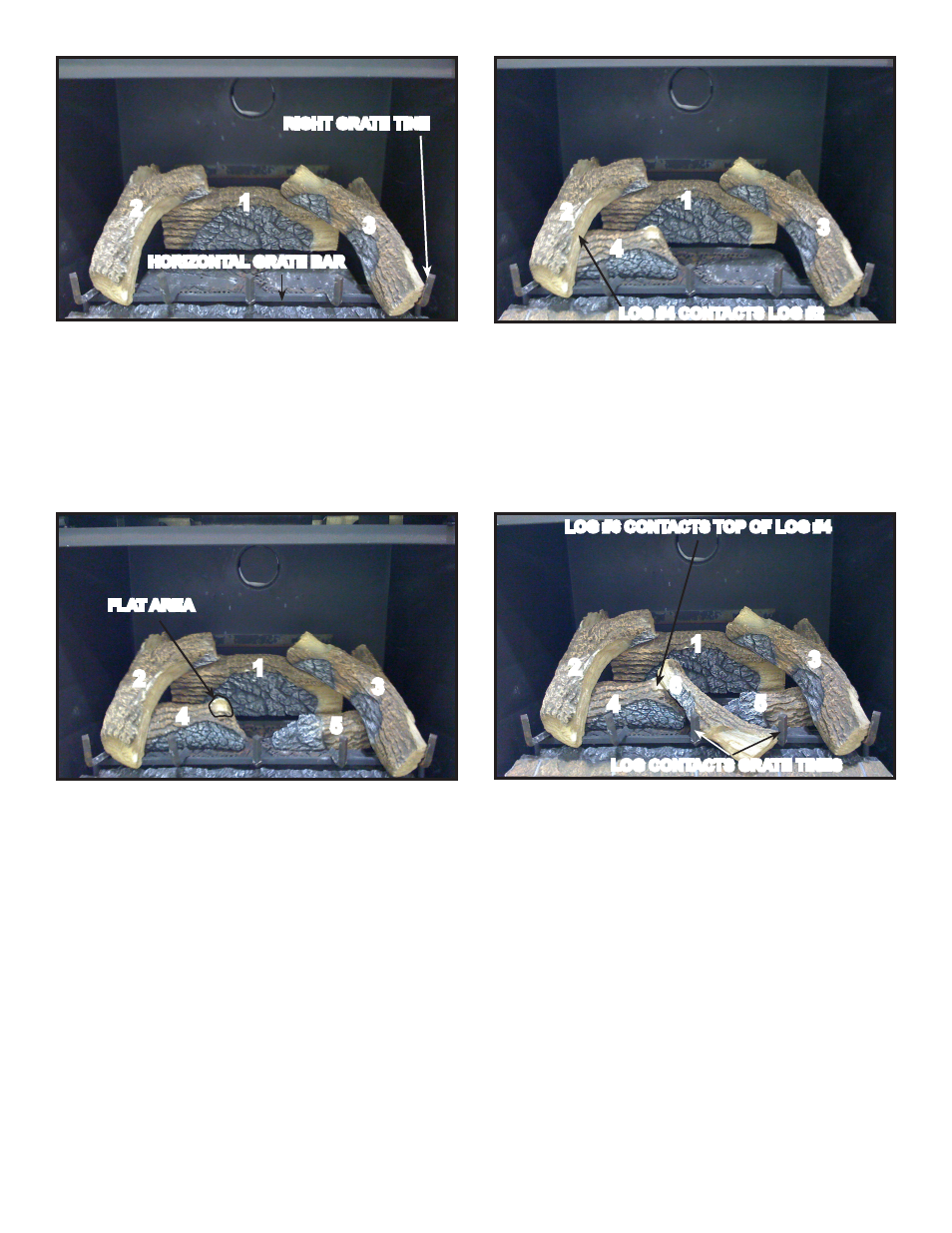

Figure 7
2
3
1 1
2
3
4
Figure 8
Figure 9
Figure 10
1
1
2
2
3
3
4
5
5
6
4
Log #3 (SRV2212-703): Mate the slot located on the bottom of Log #3 with the right log placement tab on top of Log #1.
After slot and tab have been fitted together, mate the groove located on the bottom of Log #3 with the horizontal grate bar
and far right grate tine. Log # 3 will sit down on top of both the grate tine and the horizontal grate bar (see Figure 7).
Log #4 (SRV2168-704): Place Log #4 in the left log placement indentation on the burner top (see Figure 2). Slide Log # 4
from right to left under Log #2 to fit completely and securely into the log placement indentation (see Figure 8). The back of
Log # 4 should rest against the far left grate tine as well as contact Log # 2.
Log #5 (SRV2212-705): Place Log #5 in the right log placement indentation on the burner top (see Figure 2). Ensure the
log fits completely and securely in the recessed log placement indentation (see Figure 9). Log #5 should be pulled to the left
hand side of log placement indentation.
Log #6 (SRV2212-706): Mate the groove located on the lower end of Log #6 with the fourth tine (from left to right) as
shown in Figure 10. Set the other end of Log #6 on the flat area located on top of Log #4 (see Figure 9 and 10). Log #6
will also rest against the center grate tine. When properly installed, Log #6 will rest securely on all 3 contact points, not
allowing movement or shifting.
FLAT AREA
LOG CONTACTS GRATE TINES
LOG #6 CONTACTS TOP OF LOG #4
RIGHT GRATE TINE
LOG #4 CONTACTS LOG #2
HORIZONTAL GRATE BAR
