35 Hearth & Home Technologies • BV4236DBI, BV4842DBI • 2209-900 Rev. N • 9/12
DOOR
FINISHING
MATERIAL
FINISHING
MATERIAL
C
(Includes 1/8 in. opening each side of door)
A
(Outside door width)
Finishing materials over 1 inch thick.
B = Top of door to bottom of fireplace.
D = Bottom of Finishing Material to Bottom of Fireplace
A
(Outside door width)
B
C
(Includes 1/8 in. opening each side of door)
D
FINISHING STRIPS USED
(See Figure 13.7 for attachment instructions.)
NON-COMBUSTIBLE
FINISHING MATERIAL

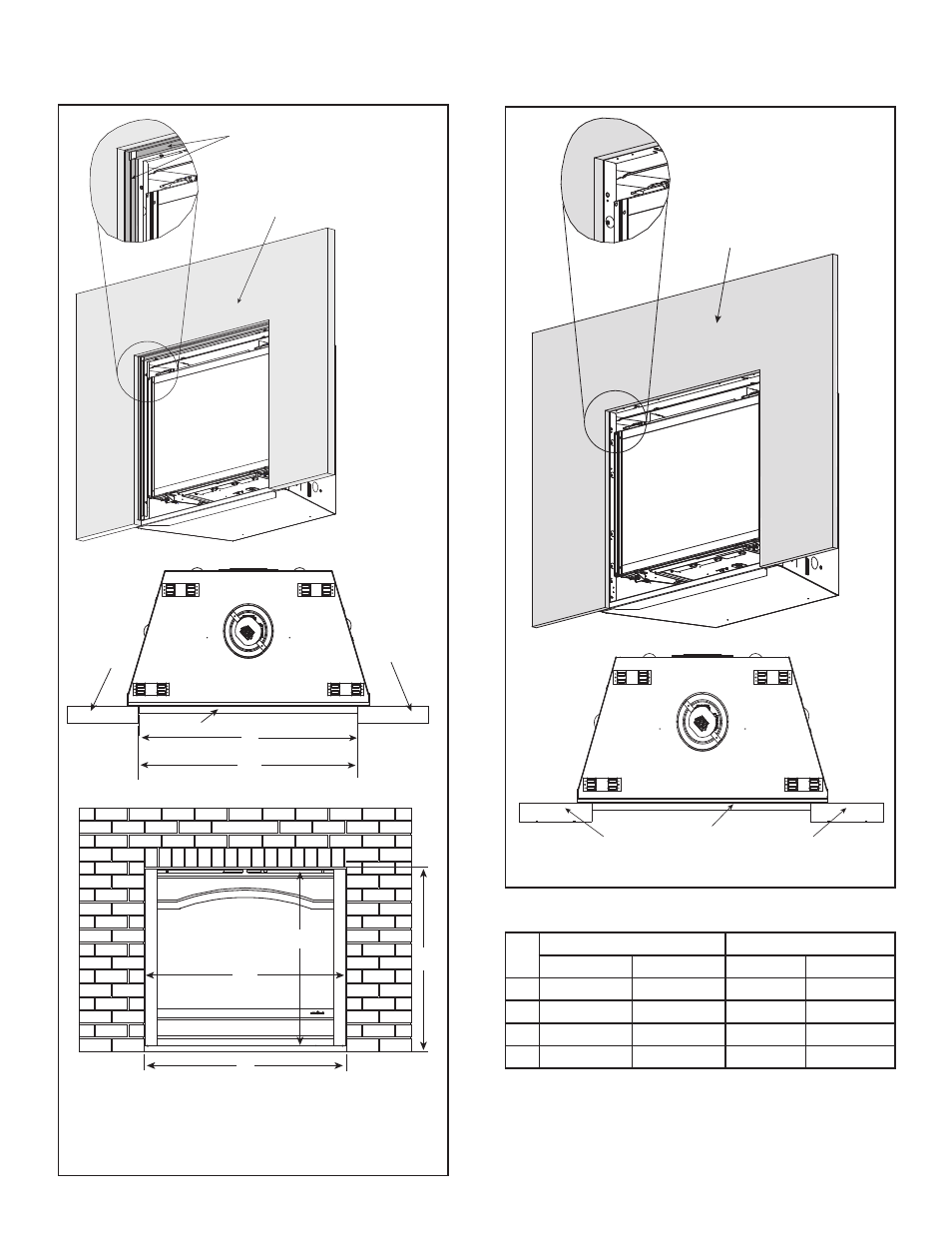

Figure 13.6 Folio Inside Fit
FINISHING STRIP NOT USED
NON-COMBUSTIBLE
FINISHING MATERIAL
Figure 13.5 Finishing Material Thickness Greater Than One Inch
DOOR
FINISHING MATERIAL FINISHING MATERIAL
BV4842DBI BV4236DBI
Inches Millimeters Inches Millimeters
A 44-1/16 1119 37-1/16 941
B 35-15/16 913 34-1/16 865
C 44-5/16 1126 37-5/16 948
D 36-5/16 922 34-7/16 882
Finishing Material Thickness:
Greater Than One Inch
Finishing Material Thickness:
Any
