Page 39

39
TRACTOR - - MODEL NUMBER 2246LS (96043004300), PRODUCT NO. 960 43 00-43

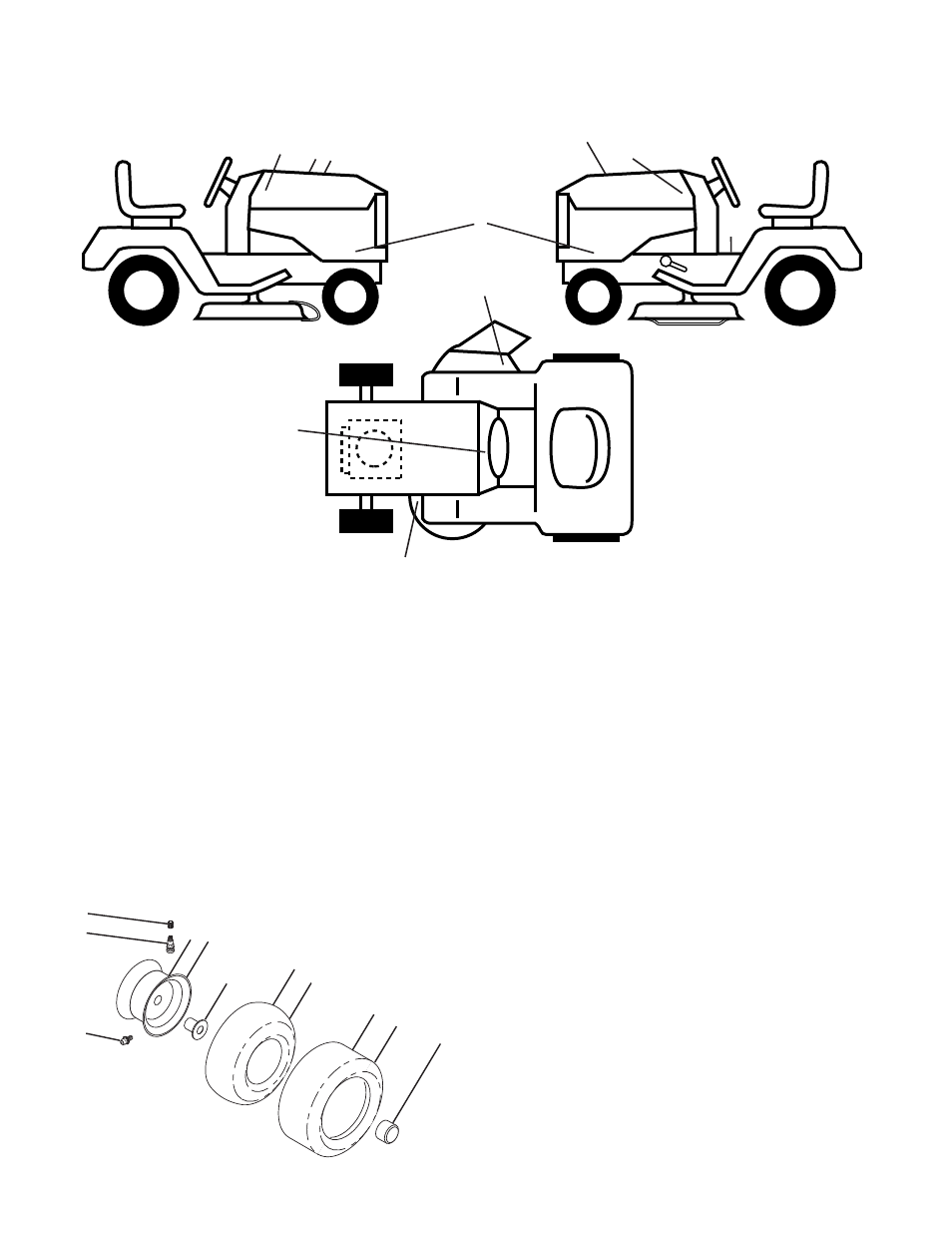

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO.
NO.
DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO.
DESCRIPTION
KEY PART
NO. NO.
DESCRIPTION
1
532 05 91-92 Cap Valve Tire
2
532 06 51-39 Stem Valve
3
532 13 83-36 Rim Front Service
4
532 05 99-04 Tube Front (Service Item Only)
5
532 10 62-22 Tire Front 15 x 6.0-6 Service
6
532 12 49-57 Fitting Grease (Front Wheel Only)
7
532 12 49-59 Bearing Flange (Front Wheel Only)
8
532 17 50-39 Cap Axle Blk 1 50 x 1 00
9
532 13 84-68 Tire R T 20 x 8-8 Service
10
532 12 49-26 Tube Rear (Service Item Only)
11
532 13 83-37 Rim Asm 8" Rear Service
- -
532 14 43-34 Sealant, Tire (10 oz. Tube)
1
532 41 16-58 Decal, Operators
2
532 41 57-80 Decal, Hood
3
532 41 82-12 Decal, Emblem Panel SD
4
532 41 84-94 Decal, Engine
5
532 18 09-41 Decal, Customer Respons.
6
532 41 82-69 Decal, Replacement
8
532 17 05-63 Decal, Mower Warn Keep Hand Away
9
532 14 50-05 Decal, Battery Dnge/Poi
12
532 16 03-96 Decal, Mower V-Belt Schematic
- -
532 41 82-77 Decal, Deck Air Induct
- -
532 16 69-60 Decal, Bypass
- -
532 41 08-05 Pad, Footrest, LH
- -
532 41 08-06 Pad, Footrest, RH
- -
532 41 83-23 Manual, Owner's (English)
- -
532 41 83-24 Manual, Owner's (French)
12
2
5 6
3
2
1
8
9
4
