INSTALLATION
HDMI Connections
• Choose the HDMI connection if it’s available on your source device
and your TV. A HDMI connection carries both digital audio and video,
enabling a single-cable connection from the source device to the
AVR. Except as noted below, no other audio or video connections
are required.
NOTE: If your DVD-Audio, SACD, Blu-ray Disc or HD-DVD player
is not capable of outputting multichannel digital audio through its
HDMI output, make additional 6-/8-channel analog audio connections.
Audio Connections (for non-HDMI sources)
• Choose one digital audio connection: Optical or Coaxial
• Optional, or where digital audio is not available: Analog audio for
making recordings for personal use or as a backup. Analog audio is
required for older analog sources that don’t have digital audio outputs,
such as cassette decks.
Video Connections (for non-HDMI sources)
(choose only one, and make sure that type is available on your TV)
• Component video • Composite video
• S-video
NOTES:
• If the video display is equipped with a DVI digital video input,
make sure it is also HDCP-compliant (High-Bandwidth Digital
Content Protection) to display copy-protected materials.
• If the source or video display has a DVI input, use an HDMI-
to-DVI adapter (not included), and make separate audio
connections.
Connect a DVD, SACD, Blu-ray Disc or HD-DVD Player
HDMI Video: I f the DVD player and the TV both have an HDMI
connector, connect the player as follows (see Figure 20):
• Connect the DVD player’s HDMI output to the HDMI 1, 2 or 3 Input on
the AVR.

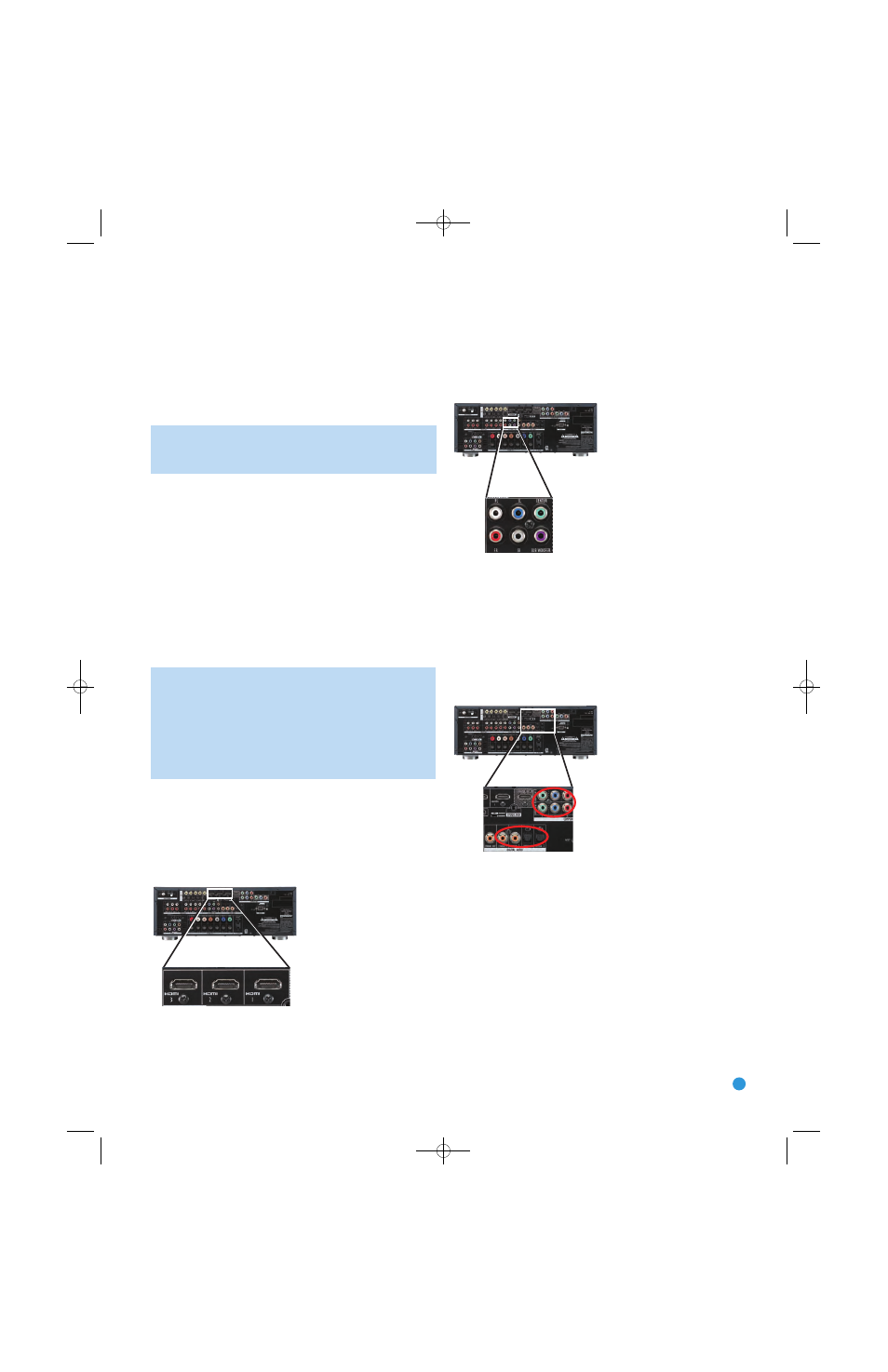

Figure 20 – Connecting An HDMI-Equipped Disc Player
If the player is capable of playing multichannel discs, including DVD-
Audio, SACD, Blu-ray Disc and HD-DVD, but it is not capable of
outputting the multichannel audio through its HDMI output, make the
following additional connections (see Figure 21):
• Connect the DVD player’s 6-/8-channel analog audio outputs to the
6-/8-Channel Analog Audio Inputs on the AVR.
Figure 21 – Connecting a Multichannel Audio Player
Component Video: If the DVD player or the TV does not have an
HDMI connector, but they both have component video connectors,
connect the player as follows (see Figure 22):
• Connect the DVD player’s component video output to the Component
Video 1 or 2 Input on the AVR.
• Connect one of the DVD player’s digital audio outputs to one of the
Coaxial or Optical inputs on the AVR.
Figure 22 – Connecting a Component-Video-Equipped Disc Player
If the player is capable of playing multichannel discs, including DVD-Audio,
SACD, Blu-ray Disc and HD-DVD, make the following additional connection
(see Figure 21):
• Connect the DVD player’s 6-/8-channel analog audio outputs to the
6-/8-Channel Analog Audio Inputs on the AVR.
Composite/S-Video: If the best video connection common to both
the DVD player and the TV is either S-video or composite video, follow
these steps (see Figure 23):
• Connect the DVD player’s S-video or composite video output (use one
connection only) to the Video 1, 2 or 3 Input on the AVR. You may also
use the Video 4 Composite or S-video Input located on the AVR’s front
panel (see Figure 31).
