One evaporator
Figure 2. Low Profile Unit Coolers

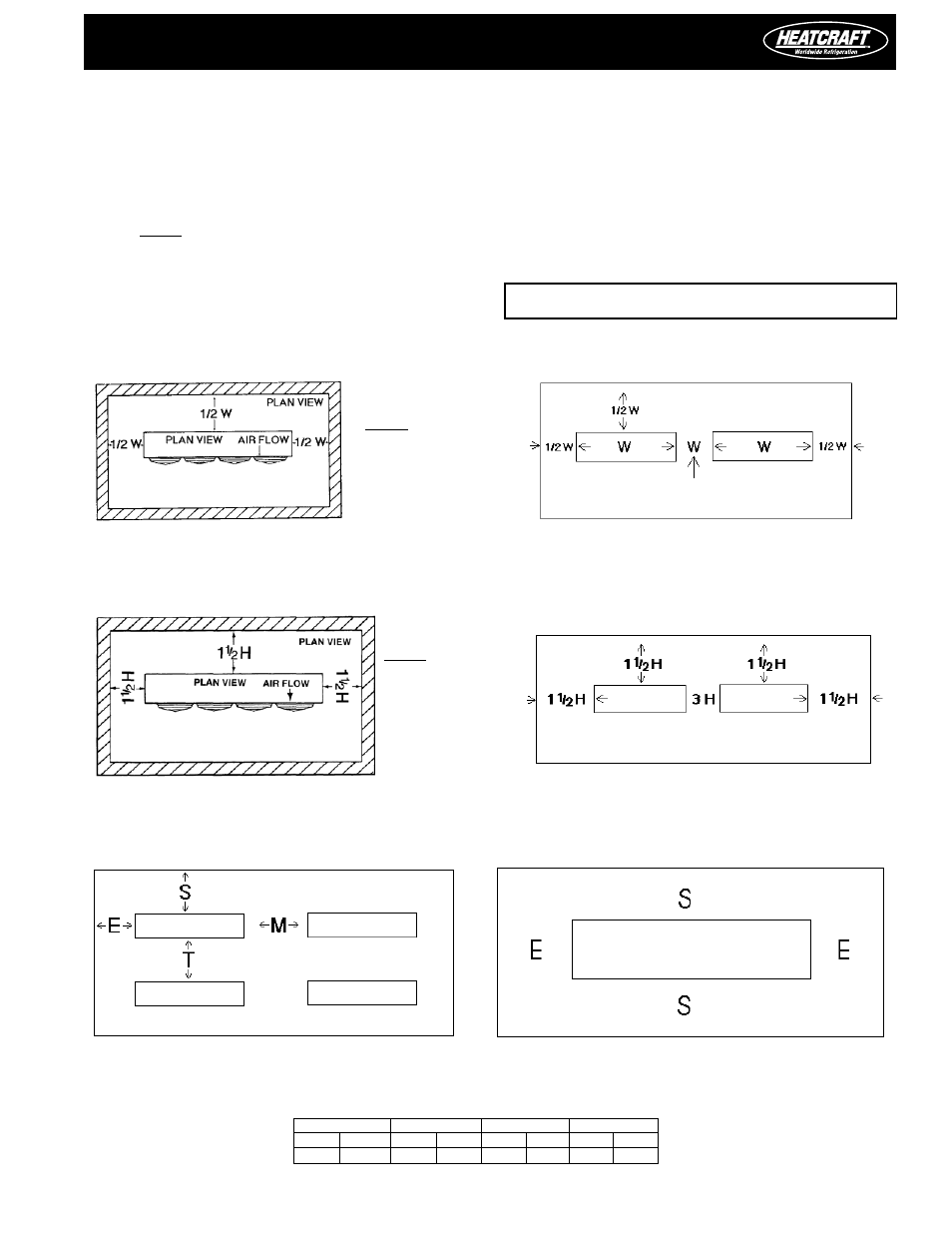

Recommended Unit Cooler Placement
Some general rules for evaporator placement which must be
followed are:
1.
The air pattern must cover the entire room.
2.
NEVER locate evaporators over doors.
3.
Location of aisles, racks, etc. must be known.
4.
Location relative to compressors for minimum pipe runs.
5.
Location of condensate drains for minimum run.
The size and shape of the storage will generally determine the
type and number of evaporators to be used and their location.
The following are some typical examples:
Figure . Center Mount Unit Coolers
One evaporator
Minimum Unit Clearances
Figure 1. Medium Profile and Large Unit Coolers
NOTE:
W = Total width
of evaporator
coil surface.
Two evaporators
Two evaporators
Recommended Maximum - Minimum Dimensions for
Center Mount Unit Cooler Installations.
E
S
M
T
Max. Min.
Max. Min. Max. Min. Max. Min.
25'
2'
20'
3'
40'
3'
40'
6'
NOTE:
H = Total height
of evaporator
coil surface.
NOTE: Leave space equal to unit height between bottom of unit
and product. Do not stack product in front of fans.
