3. Install the right and left carry handlebars:
a. Insert the carry handlebars into the left and
right lower handlebars as shown.
b. Install a 1/4-20 x 6-inch bolt and lock nut. Do
not tighten the mounting bolt at this time.
c. Install the pipe plug.
d. Install the 1/4-20 x 1-1/2-inch bolt and lock nut.
e. Tighten the mounting bolts:
Torque: 5.5 ft-lb (7.5 N • m)
4. Install the upper handlebar onto the lower
handlebars using the two 5/16-18 x 1 1/2-inch
handlebar bolts, and the two handlebar knobs.
5. Install the handlebar grips on the upper
handlebar. Use a small amount of liquid dish
soap on the upper handlebar pipe to ease grip
installation.

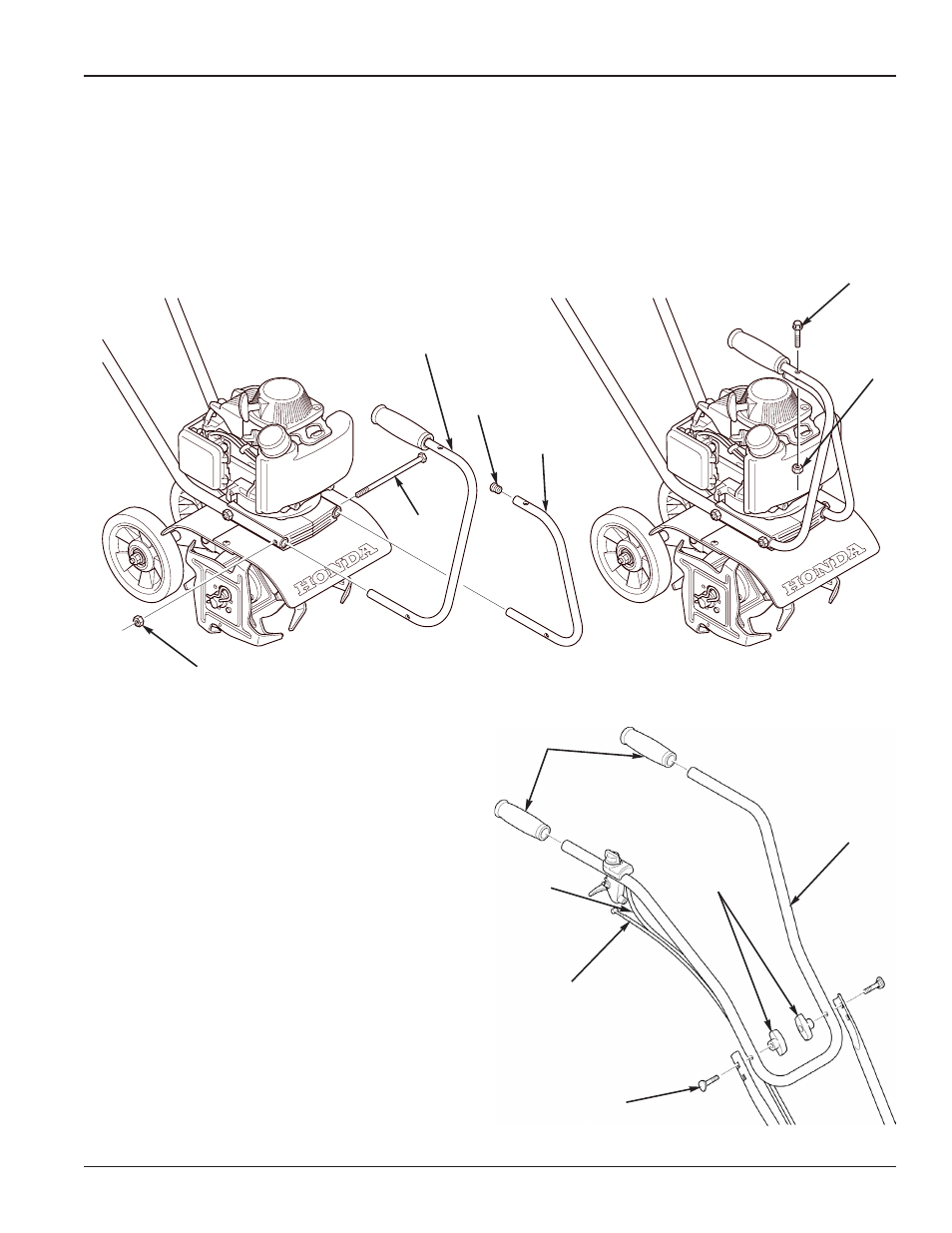

RIGHT CARRY
HANDLEBAR
LOCK NUT
BOLT,
1/4-20 x 6 in
PIPE
PLUG
LEFT CARRY
HANDLEBAR
BOLT,
1/4-20 x 1-1/2 in
LOCK
NUT
HANDLEBAR BOLT,
5/16-18 x 1-1/2 in (2)
HANDLEBAR
KNOB (2)
UPPER
HANDLEBAR
HANDLEBAR
GRIP (2)
THROTTLE
CABLE
ENGINE
SWITCH
HARNESS
ASSEMBLY
