TILLER ASSEMBLY

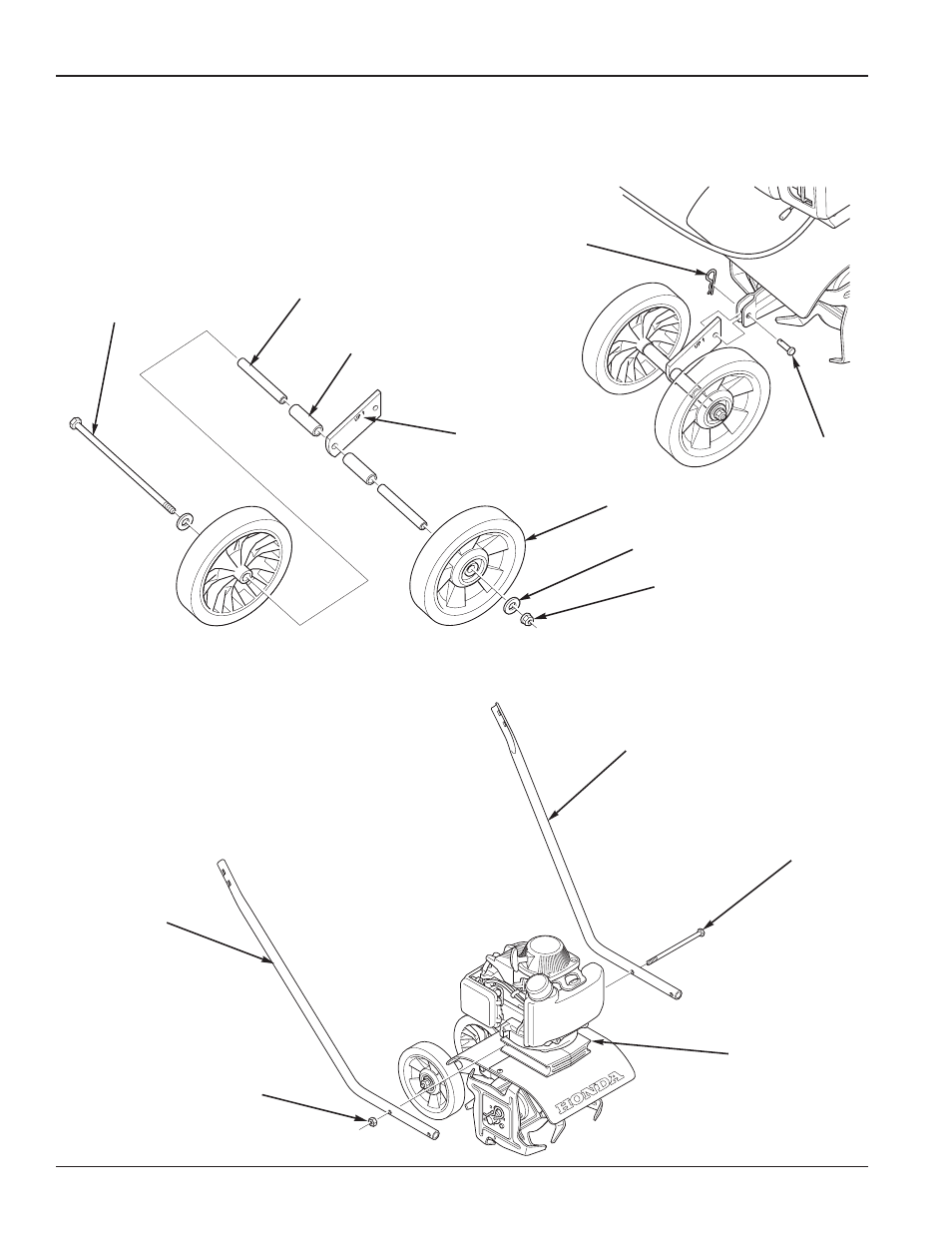

1. Assemble the wheel assembly and install the wheel assembly on the tiller with the arrow up as shown.
Torque: 14 ft-lb (20 N
•
m)
2. Attach the left and right lower handlebars to the transmission mount with the one 1/4-20 x 6-inch bolt,
and one 1/4-inch lock nut. Do not tighten the mounting bolt at this time.
HEX BOLT,
3/8-16 x 8 inch
WHEEL (2)
OUTER
COLLAR (2)
INNER
COLLAR (2)
WHEEL BAR
(“UP” ARROW)
LOCK NUT, 3/8-16
CLEVIS
PIN
LOCK PIN
WASHER (2)
RIGHT LOWER
HANDLEBAR
LEFT LOWER
HANDLEBAR
LOCK NUT,
1/4 inch
BOLT,
1/4-20 x 6 inch
TRANSMISSION
MOUNT
ASSEMBLY
30
FG100 TILLER
