Brakes – HONDA TRX420TE/FE User Manual
Page 150
(1)
(2)

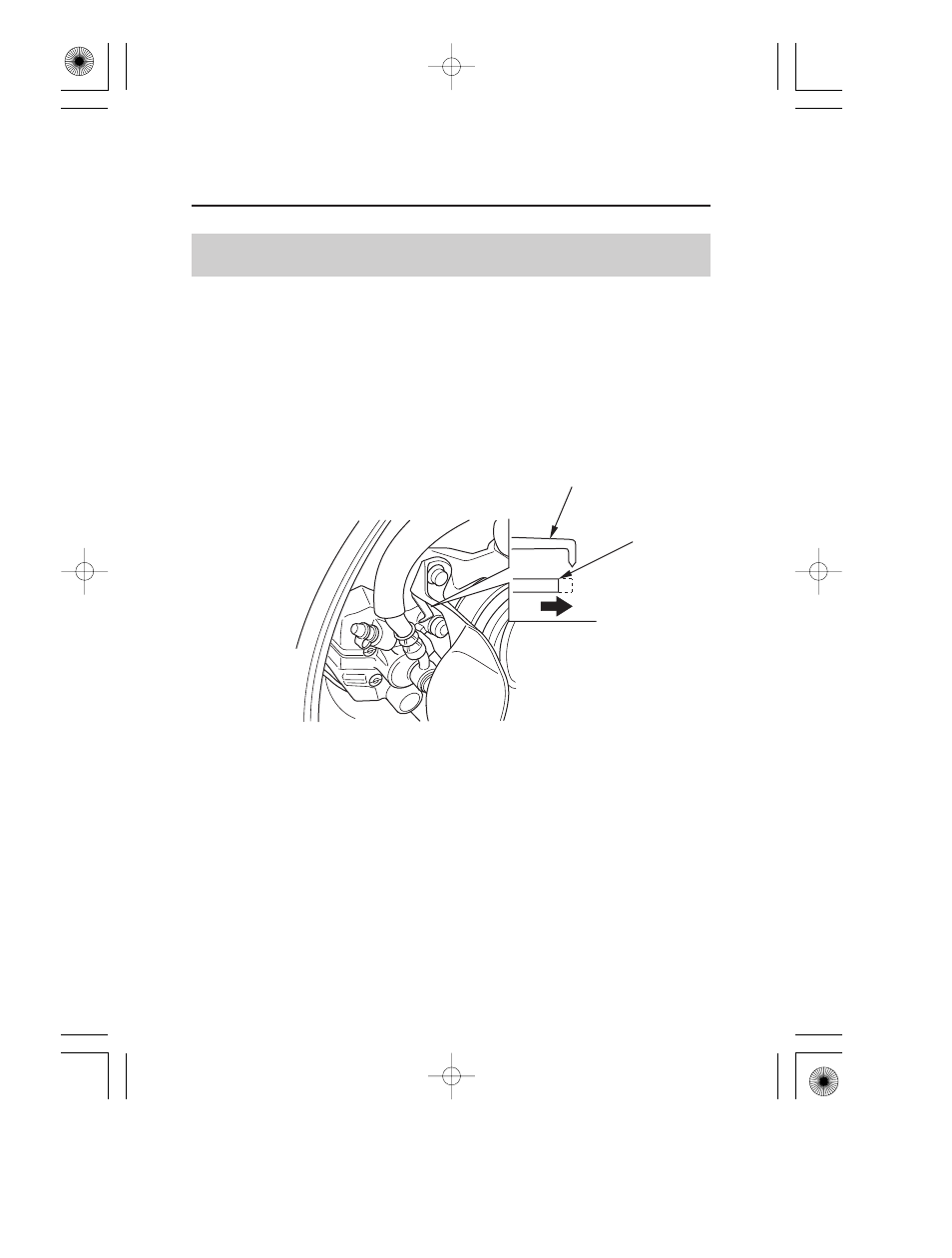

(2) edge of reference mark
(1) wear indicator
RIGHT FRONT (Left side similar)
142
Brake Pad Wear
Brakes
Servicing Your Honda
Saf ety Precautions
Refer to
on page
.
Brake pad wear will depend upon the severity of usage and riding
conditions. The pads will wear faster in wet or muddy conditions.
Inspect the pads visually during all regular service intervals to determine
the pad wear.
Always inspect both pads in both the right and left front brake calipers.
Check the wear indicator ( ). If the wear indicator aligns with the edge
of the reference mark ( ), both pads must be replaced, see your Honda
dealer for this replacement.
