Air cleaner – HONDA TRX420TE/FE User Manual
Page 137
(1)
(2)
(3)

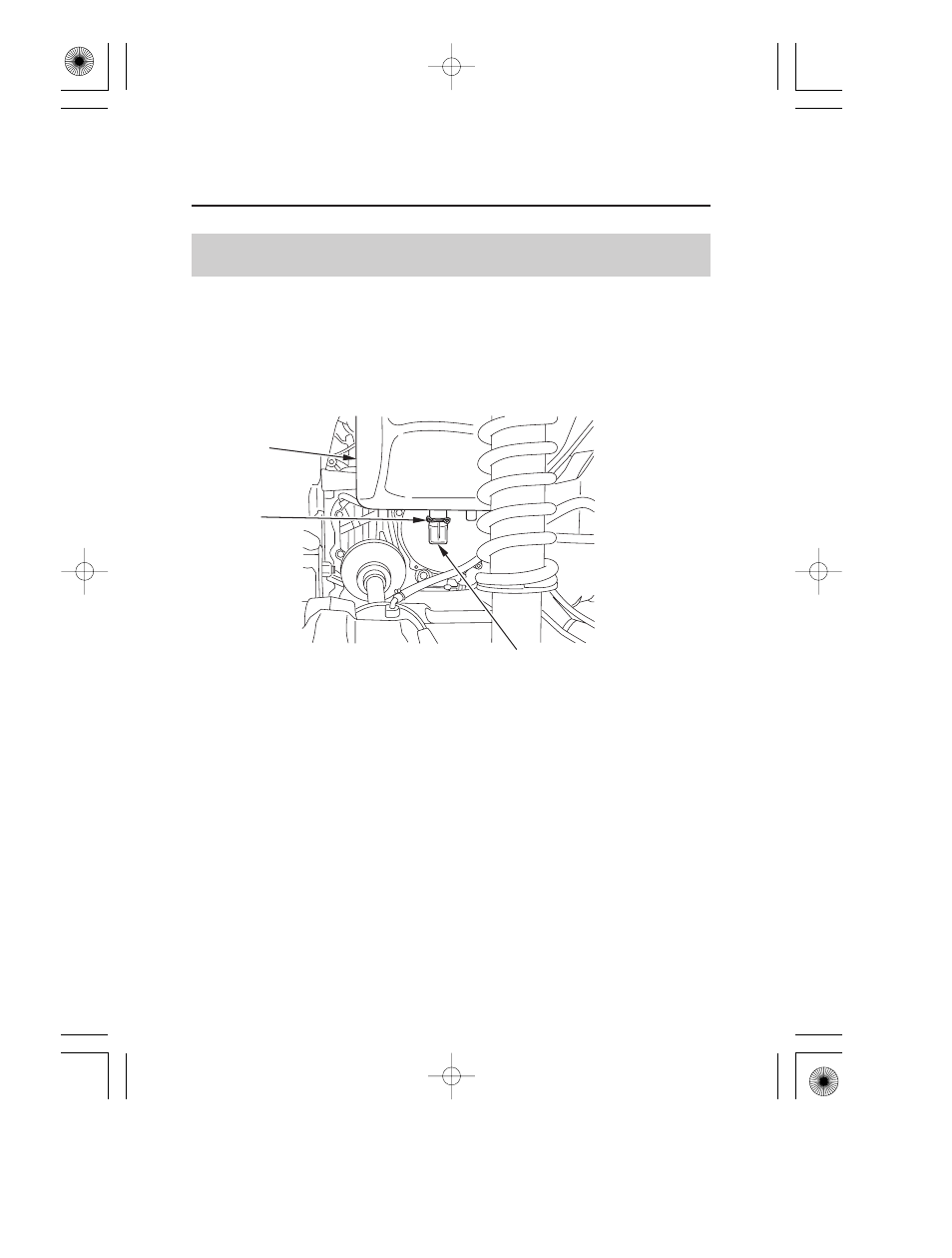

(1) drain tube
(2) clip
REAR
(3) air cleaner housing
129
Air Cleaner Housing Drain Tube
Air Cleaner
Servicing Your Honda
The air cleaner housing drain tube should be serviced in accordance with
the Maintenance Schedule. (Riding through water may require more
frequent inspection.) If deposits can be seen in the drain tube, the tube
must be cleaned before starting the vehicle.
Remove the drain tube ( ) by removing the clip ( ) under the air
cleaner housing ( ).
Drain the deposits.
Reinstall the drain tube, securing it with the clip.
1.
2.
3.
3
1
2
06/10/24 13:18:10 32HP4800_138
