F116 (SERIES 16000) SELF-CONTAINED DUCTABLE COMMERCIAL AIR CLEANER
68-0200-2 Revised 10-07 10
FLEXIBLE STATIONARY
M10799
AIR CLEANER
AIR CLEANER

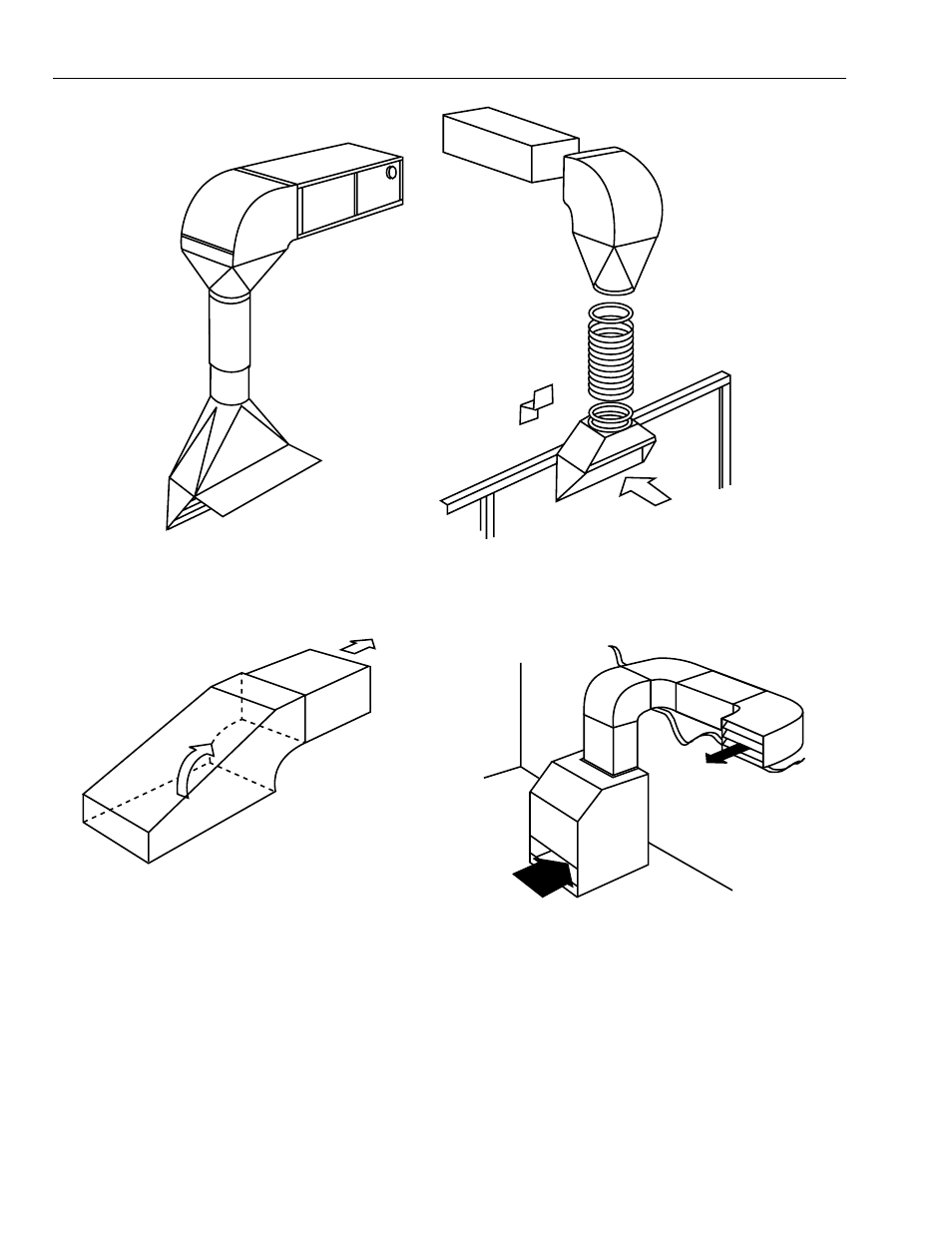

Fig. 10. Positioning air cleaner for suspended side draft applications.
DO NOT INSTALL WHERE THERE IS
HEAVY OIL SMOKE, COOKING,
HEAVY WELDING OR HEAVY CUTTING.
M10800
AIR
CLEANER
DO NOT INSTALL WHERE THERE IS
HEAVY OIL SMOKE, COOKING,
HEAVY WELDING OR HEAVY CUTTING.
M10801
AIR
CLEANER
Fig. 11. Connecting air cleaner directly to a canopy hood
with a minimum air entrance velocity of 120 fpm.
Fig. 12. Positioning air cleaner to recirculate existing
exhaust system air which contains light to medium
quantities of pollutants.
