English
9

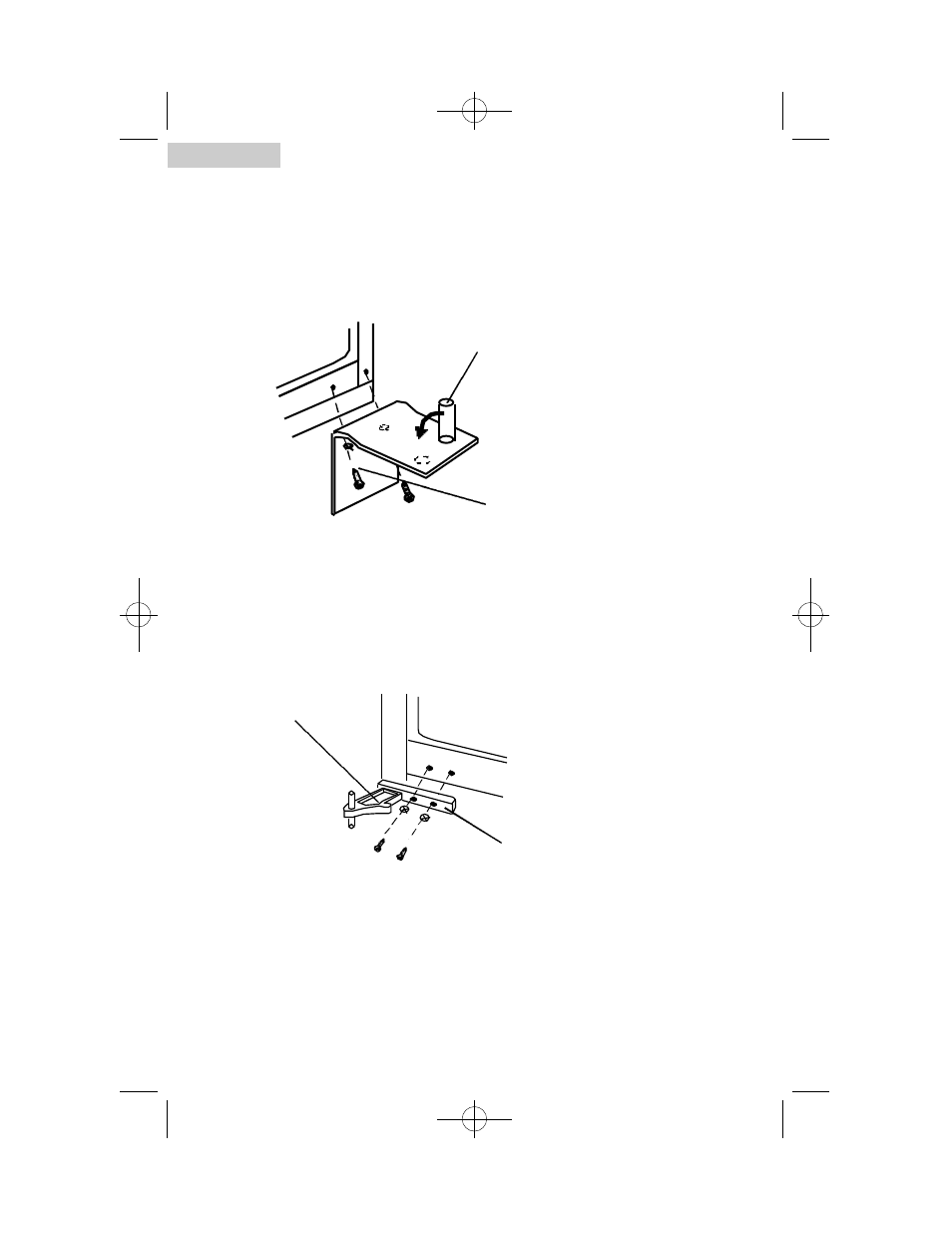

Reinstallation: (see fig. # 4 and # 5)
1. Remove the lower pivot pin from the bracket of the lower
hinge by turning counter clockwise. Move the pin to the
opposite hole and tighten.
2. Loosen the screws holding the lower hinge bracket
and remove the hinge.
3. Align the holes in the lower hinge bracket to the
corresponding holes in the opposite side of the cabinet.
Insert and tighten the screws.
4. To install refrigerator door: make the left bottom hole of the
refrigerator compartment door fall over the lower hinge axle, move
door forward to make it straight and in alignment with central hinge.
Install the central hinge again, turn the hinge axle until it
completely enters the door body, then fix it with screws.
5. To install freezer door: make the left bottom hole of freezer door fall
over the central hinge axle; raise upper hinge, so that hinge axle can
be installed in the upper hole of the upper part of the freezer door;
adjust door to make it straight and level.
6. As shown in Fig. 1, install the upper freezer hinge to the left
corresponding position. (tighten the screws of upper hinge)
7. Replace the hinge cover as shown in Fig. 1.
Central hinge pad
Central hinge axle
fig. # 4
fig. # 5
Bottom hinge
pivot pin
