12 - English

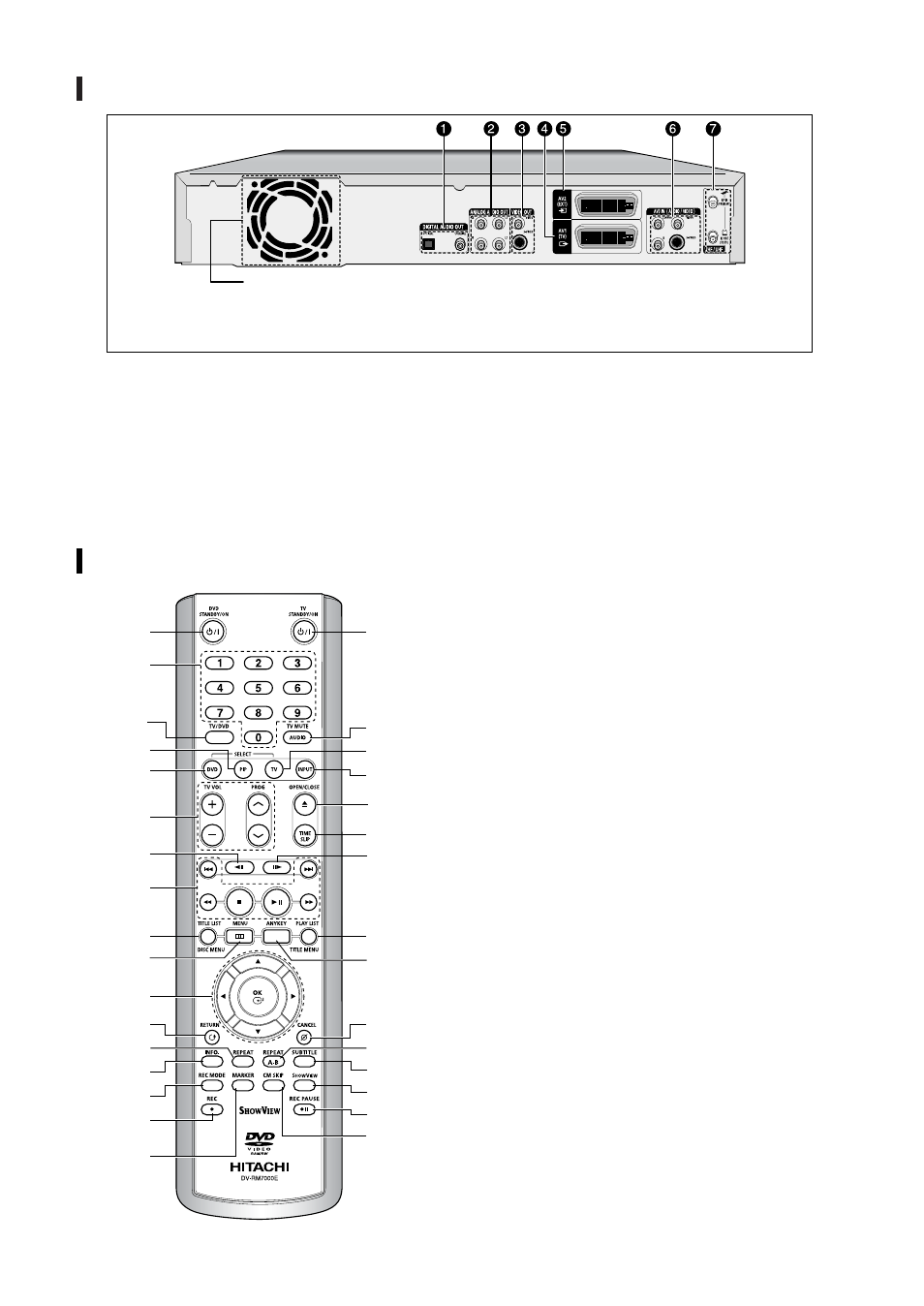

Rear Panel
1 DIGITAL AUDIO OUT
Connects to an amplifier having a digital
input jack.
2 ANALOG AUDIO OUT
Connects to the audio input of external
equipment using audio cables.
3 VIDEO OUT
Connects the input of external equipment
using a Video or S-Video cable.
4 AV1(TV) OUTPUT SCART
5 AV2(EXT) INPUT SCART
6 AV3 IN(AUDIO/VIDEO)
Connects the output of external equipment
using an audio/video or S-Video cable.
7 VHF/UHF
Connects antenna cables.
Tour of the Remote Control
1 B
2
3
6
8
9
?
A
=
:
4
5
7
C
D
;
F
G
H
J
K
L
I
E
P
>
@
<
O
N
M
1 DVD STANDBY/ON Button
Press to turn the power on and off. (As to
the indication of the Operate switch, “ I ”
shows ON and “Í” shows electrical power
stand-by.)
2 Number Buttons
3 TV/DVD Button
4 PIP Button
Use to watch a sub program on the PIP
screen while watching the main program on
the main screen.
5 DVD Button
Press this when you use a DVD.
6 TV Control Buttons
• TV VOL Button
TV volume adjustment
• PROG Button
Allows you to program a specific order.
Same as PR buttons in Front panel.
7 REVERSE STEP Button
Each press of this button will play one-frame
reverse.
8 Playback-related buttons
Search, Skip, Stop, Play/Pause
9 TITLE LIST/DISC MENU Button
Use this to enter the View Recording
list/Disc menu.
: MENU Button
Brings up the DVD recorder’s setup menu.
Fan
The fan always revolves when the power is on.
Ensure a minimum of 10 cm clear space on all sides
of the fan when installing the product.
