-4- 598-1112-04
FR ONT
RE AR
TR AN S

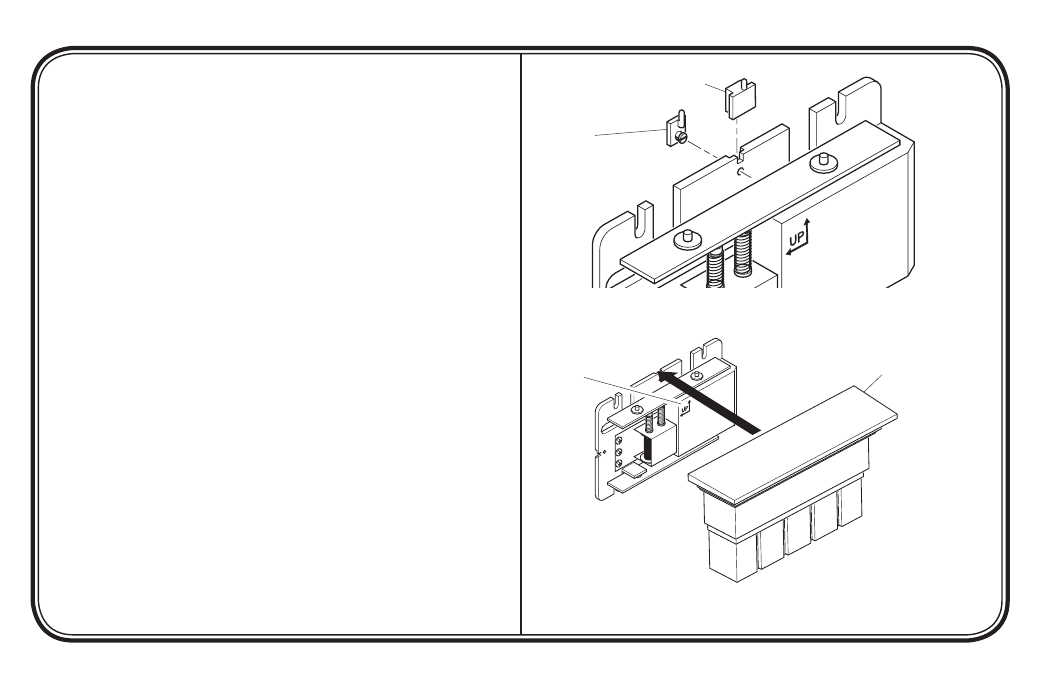

Figure 4 - Mounting Snap-On Cover
install CHiMe CoveR
Place chime cover securely over base.
•
For hang pin and hole covers: Attach hang pin to base prior
to mounting base on wall. Line up hole in cover with pin and hang
(see Figure 3).
• For snap-on covers: Apply pressure to the cover until it snaps
into place (see Figure 4). Firmly grasp cover and pull to remove
from base.
• For hang bracket covers: Determine if the cover will hang
vertically or horizontally on the base. Place bracket into the cor-
rect slot inside chime cover.
Adjust bracket (if necessary) so that bracket is flush with back
surface of cover. Slide bracket into slot on base to hang cover (see
Figure 5).
Note: Never use cleaners or polishes. Never use any fluids on the
chime mechanism. Use dry cloth to clean chime cover and base.
FR
ON
T
REAR
TR
AN
S
Figure 3 - Pin for Hanging Cover
Hang Pin,
Snap-On Type
Illustrations may
vary from actual
chime unit.
Snap-On Cover
Base Orientation
Marking
Hang Pin, Slide-On Type
